Product Details:
Payment & Shipping Terms:
|
| Forward & Filtering Rate:: | 10G/5G/2.5G/1G/100M | Processing Type: | Store-and-Forward |
|---|---|---|---|
| Fabric: | 20Gbps | Connector: | 1 X RJ45 |
| Optical Port: | 1 X SFP+ | Operating Temperature: | -40°C To 80°C (-40°F To 176°F) |
| Input Power: | 12~48VDC, Redundant Power (4-pin Terminal Block) | Power Consumption: | 5W Max |

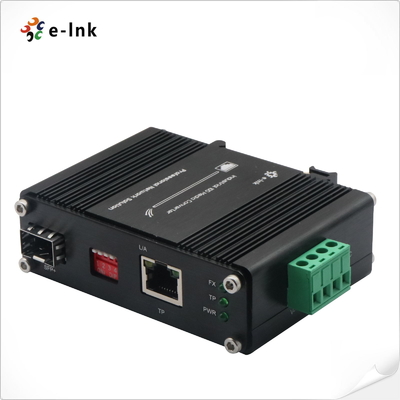

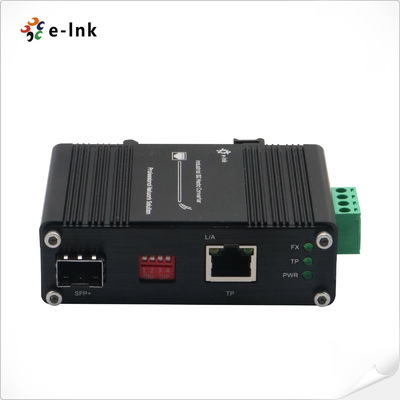

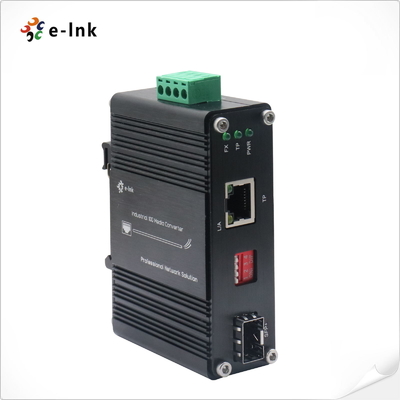

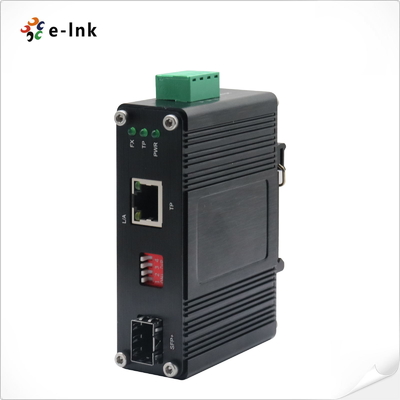

Mini Industrial 10G/5G/2.5G/1G/100M Copper to 10GBASE-X SFP+ Media Converter
Industrial Ethernet Media Converter Advantages
► 100/1G/2.5G/5G/10G BASE-T RJ45 interface with auto MDI/MDI-X function, 10GBASE-X SFP+ slot interface
► IEEE 802.3u/802.3ab/802.3bz/802.3ae Ethernet standard compliant
► Supports auto-negotiation 100Mbps, 1Gbps half/full duplex and 2.5/5/10Gbps full duplex mode
► IEEE 802.3az Energy Efficient Ethernet (EEE) compliant
► Extensive LED indicators for network diagnostics
Industrial Ethernet Media Converter Technical Indexes
| Software Features | ||||
| Network Cables: |
10G/5G/2.5G/1G/100M BASE-T: 10G – Cat 6A/7 5G – Cat 6/6A/7 1G/2.5G – Cat 5e/6/6A/7 100M – Cat 5/5e/6/6A/7 Cat 5/5e/6/6A/7 UTP cable (100 meters, max.) EIA/TIA-568 100-ohm STP (100 meters, max.) 10GBASE-LR/SR/BX: 50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 300m 9/125μm single-mode fiber optic cable, up to 80km |
|||
| Processing Type: | Store-and-Forward | |||
| Jumbo Frame: | 16K | |||
| Address Table: | 9K entries, automatic source address learning and aging | |||
| MTBF | > 200,000 hrs | |||
| Protection: | ||||
| Power Input Overload: | Automatic Resettable | |||
| Reverse Polarity: | Present | |||
| Note: DIP Switch’s function can be customized based on client’s requirements. | ||||
| LED Indicators: | ||||
| PWR: | Power Status | |||
| L/A: | Link/Activity at Ethernet Port | |||
| TP: | Ethernet Status | |||
| FX: | SFP+ Fiber Port Status | |||
| Dimensions (WxDxH): | 95 x 70 x 30 mm | |||
| Weight: | 0.25Kg | |||
| Casing: | Aluminum Case | |||
| Mounting Options: | DIN-Rail/Wall-mount | |||
Industrial Ethernet Media Converter Overview

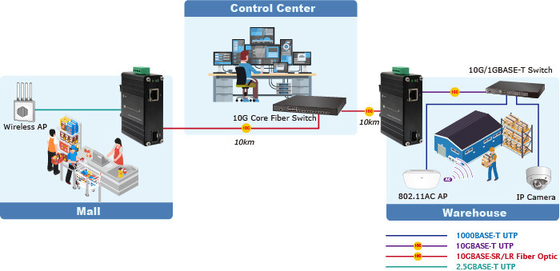

LNK-IMC10G-SFP+ is the smallest Industrial-grade 10G Ethernet Media Converter providing non-blocking wire-speed performance and great flexibility for 10 Gigabit Ethernet extension in harsh industrial environment. It features one copper interface with RJ45 connectors supporting speeds of 100Mbps, 1Gbps, 2.5Gbps, 5Gbps, and 10GBASE-T, as well as one 10GBASE-X SFP+ fiber optic interface, all housed in a rugged yet compact IP40-rated case with a redundant power system. The LNK-IMC10G-SFP+ is perfectly suited for a variety of applications involving copper-to-fiber media conversion in environments requiring 10Gigabit bandwidth, especially in climatically challenging conditions with temperatures ranging from -40 to 80 degrees Celsius.
Ordering Information
| Model | Description |
| LNK-IMC10G-SFP+ | Mini Industrial 10G/5G/2.5G/1G/100M Copper to 10GBASE-X SFP+ Media Converter |
| SFP Options | ► SFP+ option. Please select your SFP+ on our SFP+ Options Page (Industrial SFP). |
| ► SFP+ module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block |
| ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. | |
| ► Power Supply is to be purchased separately. |
