Fast Ethernet Media Converter With Built-In PSU 10/100M WDM SC Fiber

Name: Fast Ethernet Media Converter With Built-In PSU 10/100M WDM SC Fiber
Brand: E-link
SKU: LNK-S1100N
Rating: 4.6 (154 reviews)

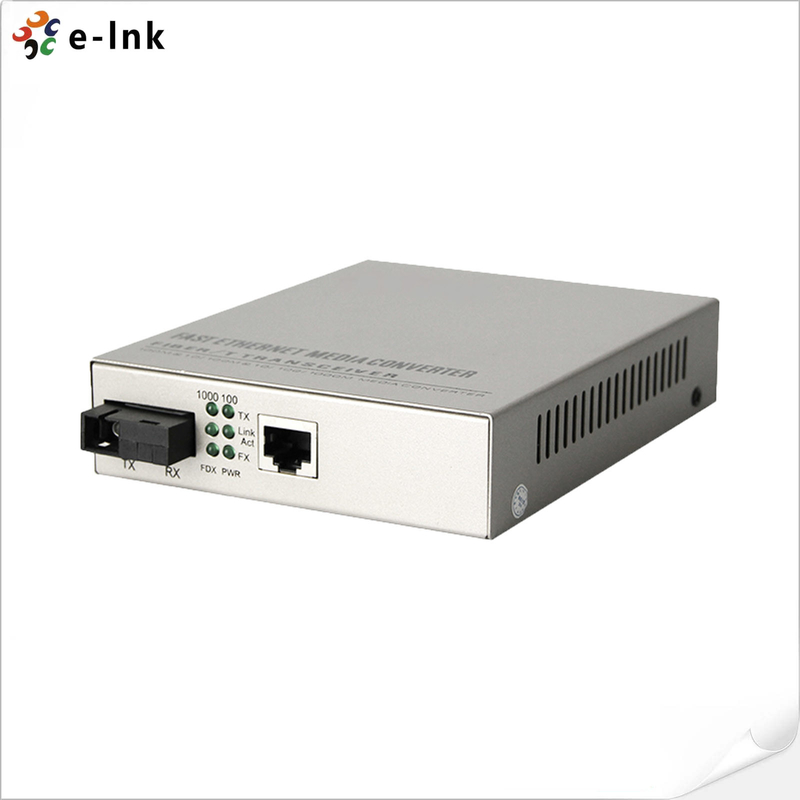

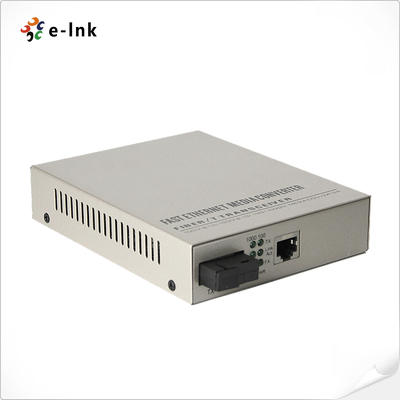

Large Image : Fast Ethernet Media Converter With Built-In PSU 10/100M WDM SC Fiber

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE, RoHS, FCC
Model Number:	LNK-S1100N

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	Media Converter Standard Export Package
Delivery Time:	3~5 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	5000 pcs per month

Contact Now

Detailed Product Description

Product Name:	Fiber Media Converter	Data Rate:	10/100Mbps
Port:	Simplex SC	Wavelength:	1310nm/1550nm
Fiber Type:	Single Mode	Transmission Distance:	20/40/60/80/100 Km
High Light:	10/100Mbps Ethernet Media Converter , Built-in PSU Ethernet Media Converter

Product Description:

The intelligent 10/100M adaptive fast Ethernet media converter, with its unique feature of notifying of link failure between electrical and optical ports, has the capability to replace a network managed media converter, resulting in a significant reduction in system costs.

The LNK-S1100N series Ethernet media converter is able to convert between 10Base-T and 100Base-TX twisted pair electrical signals and 100Base-FX optical signals. It extends the network transmission distance from 100m via copper cables to 120km via fiber optic cable.

This converter allows for data transmission in both electrical and optical networks using either the data link L2 store-and-forward technology or the PHY L1 cut-through technology. It also supports transmission in single mode single fiber.

Features:

10/100Mbps auto-sensed, facilitating network upgrade
Built-in efficient switching core to implement flow control and reduce broadcast packets
Full-duplex and half-duplex auto-sensed
Support auto-sense of MDI/MDI-X, facilitating system commissioning and installation
Support Link Failure Alert (LFA) optional
Support half /full-duplex of FX and link failure alert with optional dip-switch
Support 10/100Mbps store-and-forward and 100Mbps cut-through transmission with optional dip-switch
Support the transmission of 100Base-Fx or STM-1, compatible with other devices
Support low-time lag transmission
Support the transmission of extra-long packets up to1600 bytes
Support the transmission of extra-long VLAN packets
Support Quality of Service (QoS) , ensuring the transmission of VoIP packets
Extremely low power consumption (less than 2W), low heat, reliable and stable performance, and long lifetime

Technical Parameters:

Parameter Specifications

Access mode: 10/100Mbps

Standard: IEEE802.3 10Base-T Ethernet, IEEE802.3u,100Base-TX/FX Fast Ethernet, IEEE802.3x Flow control

Wavelength: 1310nm/1550nm

Transmission distance: Single fiber single mode: 20/40/60/80/100 km
Category-5 twisted pairs: 100m

Port:

One RJ45 port: for connecting STP/UTP category-5 twisted pairs
One optical port: Single mode Single fiber: SC or FC (9/125μm)

Conversion means: Store and Forward mode or Cut-Through mode

Buffer space: Built in 128Kb RAM for data buffer

Flow control: Full duplex: flow control; Half duplex: back pressure

BER: <19-9

MTBF: 100,000 hours

LED indicator:

POER (power supply)
FX LINK/ACT (optical link action)
FDX (FX full duplex)
TX LINK/ACT (TP cable link/action)
TX 100 (TP cable rate 100M)
FX100 (fiber cable rate 100M)

Power supply: Internal: AC90~264V/DC100~380V input

Power consumption: <40W (the chassis at full load), <2W

Operating temperature: -10~55ºC

Operating humidity: 5%~90%

Maintaining temperature: -40~70ºC

Maintaining humidity: 5% ~ 90% non-condensing

Packing and Shipping:

Packaging and Shipping for Fiber Ethernet Media Converter

Thank you for choosing our Fiber Ethernet Media Converter. Here is the information for packaging and shipping:

Each Fiber Ethernet Media Converter will be packaged in a sturdy cardboard box to ensure safe transportation.
The box will be labeled with the product name, model number, and SKU for easy identification.
Inside the box, the Fiber Ethernet Media Converter will be wrapped in bubble wrap to protect it from any potential damage during shipping.
Additional padding will be added to the box to further protect the product.
The package will be sealed with strong adhesive tape to prevent any accidental opening.
For international orders, all necessary customs documents will be included in the package.
The package will be shipped using a reliable and efficient shipping service to ensure timely delivery.
A tracking number will be provided so you can easily track your package.

Thank you for choosing our Fiber Ethernet Media Converter. We are confident that it will exceed your expectations.

Ordering Information:

LNK-S1100N-20	10/100Base-T to 100Base-F, WDM(single fiber bi-direction), 20km, 1310/1550nm, SC, standalone, external power adaptor, used by pairs
LNK-S1100N-40	10/100Base-T to 100Base-F, WDM(single fiber bi-direction), 40km, 1310/1550nm, SC, standalone, external power adaptor, used by pairs
LNK-S1100N-60	10/100Base-T to 100Base-F, WDM(single fiber bi-direction), 60km, 1310/1550nm, SC, standalone, external power adaptor, used by pairs
LNK-S1100N-80	10/100Base-T to 100Base-F, WDM(single fiber bi-direction), 80km, 1310/1550nm, SC, standalone, external power adaptor, used by pairs
LNK-S1100N-100	10/100Base-T to 100Base-F, WDM(single fiber bi-direction), 100km, 1310/1550nm, SC, standalone, external power adaptor, used by pairs
