Product Details:
Payment & Shipping Terms:
|
| Keywords: | 10G Fiber Media Converter | Data Rate: | 10G/5G/2.5G/1G/100M |
|---|---|---|---|
| Optical Port: | 10GBASE-X SFP+ | Power Supply: | 24W 1A 24VDC |
| Power Input: | 12~48V DC Terminal Block | Operating Temperature: | -40°C To 75°C (-40°F To 167°F) |
| Installtions: | DIN-Rail & Wall-mount | Dimensions (WxDxH): | 95 X 70 X 30 Mm |
| Highlight: | 10G Industrial Fiber Media Converter,100M Industrial Fiber Media Converter |
||
10G Fiber Media Converter 10G/5G/2.5G/1G/100M Copper To 10GBASE-X SFP+
10G Fiber Media Converter Advantages
►100/1G/2.5G/5G/10G BASE-T RJ45 interface with auto MDI/MDI-X function, 10GBASE-X SFP+ slot interface
►IEEE 802.3u/802.3ab/802.3bz/802.3ae Ethernet standard compliant
►Supports auto-negotiation 100Mbps, 1Gbps half/full duplex and 2.5/5/10Gbps full duplex mode
►Extensive LED indicators for network diagnostics
Fiber Media Converter Technical Indexes
|
Forward & Filtering Rate |
100Mbps |
|||
|
1000Mbps |
||||
|
2.5Gbps |
||||
|
5Gbps |
||||
|
10Gbps |
||||
|
Network Cables |
10G/5G/2.5G/1G/100M BASE-T: 10G – Cat 6A/7 5G – Cat 6/6A/7 1G/2.5G – Cat 5e/6/6A/7 100M – Cat 5/5e/6/6A/7 Cat 5/5e/6/6A/7 UTP cable (100 meters, max.) EIA/TIA-568 100-ohm STP (100 meters, max.) 10GBASE-LR/SR/BX: 50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 300m 9/125μm single-mode fiber optic cable, up to 80km |
|||
|
Operating Temperature |
-40°C to 80°C (-40°F to 176°F) |
|||
|
Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
|||
|
Relative Humidity |
5% to 95% non-condensing |
|||
|
MTBF |
> 200,000 hrs |
|||
|
Input Power |
12~48VDC, Redundant Power (4-pin Terminal Block) |
|||
|
Power Consumption |
5W Max |
|||
|
4-digit DIP switch function |
DIP |
Function |
Settings |
|
|
SW 1 |
Reserved |
ON - Reserved |
OFF - Reserved |
|
|
SW 2 |
Reserved |
ON - Reserved |
OFF - Reserved |
|
|
SW 3 |
Reserved |
ON - Reserved |
OFF - Reserved |
|
|
SW 4 |
Reserved |
ON - Reserved |
OFF - Reserved |
|
|
Note: DIP Switch’s function can be customized based on client’s requirements. |
||||
Fiber Etherent Media Converter Overview

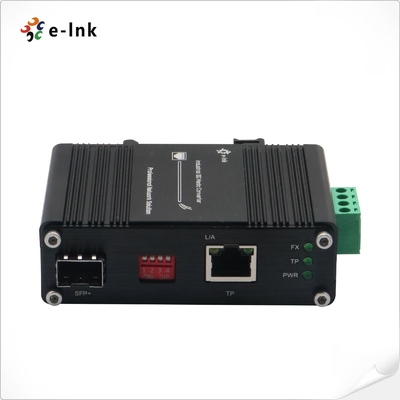

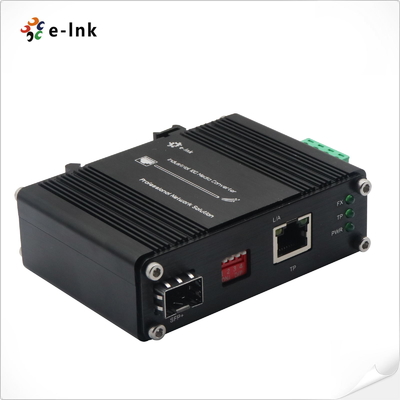

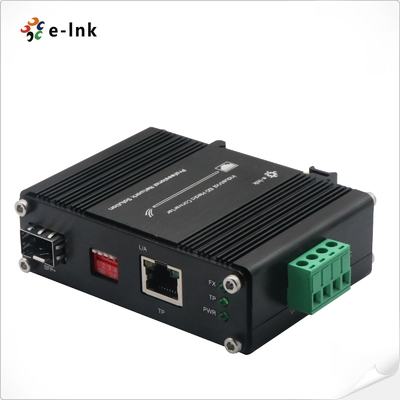

LNK-IMC10G-SFP+is the smallest industrial grade 10G Ethernet media converter, providing non blocking line speed performance and great flexibility for 10 Gigabit Ethernet expansion in harsh industrial environments. It is equipped with a 100Mbps, 1Gbps, 2.5Gbps, 5Gbps, and 10GBASE-T RJ45 copper interface, as well as a 10GBASE-X SFP+fiber optic interface, using a sturdy but compact IP40 casing with a redundant power system. LNK-IMC10G-SFP+is the ideal choice for a wide range of applications from copper to fiber optic dielectric conversion, requiring 10Gigabit bandwidth in harsh environments ranging from -40 to 80 degrees Celsius.
Industrial Media Converter Ordering Information
|
Model |
Description |
|
LNK-IMC10G-SFP+ |
Mini Industrial 10G/5G/2.5G/1G/100M Copper to 10GBASE-X SFP+ Din Rail Media Converter |
|
SFP Options |
► SFP+ option. Please select your SFP+ on our SFP+ Options Page (Industrial SFP). |
|
► SFP+ module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
