8 Channels 3G-SDI Fiber Converter With 10G Ethernet And Loop Out SMF 20KM

Large Image : 8 Channels 3G-SDI Fiber Converter With 10G Ethernet And Loop Out SMF 20KM

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE,FCC,RoHs
Model Number:	LNK-3G8V10GE

Payment & Shipping Terms:

Minimum Order Quantity:	1 pair
Price:	Negotiation
Packaging Details:	3G-SDI Fiber Transmitter Receiver Standard Export Package
Delivery Time:	7 working days
Payment Terms:	Western Union, L/C, T/T,
Supply Ability:	2000 pairs/per month

Contact Now

Detailed Product Description

Product Name:	8 Channels 3G-SDI Fiber Converter	Power Input:	100VAC To 220VAC
Input Format:	SD/HD/3G-SDI	Video Input/Output:	8 Channel With Loop Out On TX/RX
Ethernet Interface:	1-port 10G/5G/2.5G/1G/100BASE-T RJ45	Fiber Type:	Single LC Optical Fiber
Transmission Distance:	Up To 20KM	Dimensions (LxWxH):	483 X 270 X 45mm (19inch 1U)
Weight:	8KG/pair	Warranty:	3 Years
Highlight:	8 Channels Fiber Converter , Fiber Converter With 10G Ethernet

8 Channels 3G-SDI Fiber Extender With 10G Ethernet And Loop Out Single Mode Fiber 20KM

3G/6G/12G SDI Video Over Fiber Extender Advantages
► Supporting eight channels of 3G-SDI input and supporting embedded audio synchronous transmission
► Support one 10G Ethernet transmission
► The transmitter supports ring pass output, while the receiver supports dual output
► The dual color BNC design facilitates the identification of input and output signals (with gold as the input terminal)
► Support HDTV 1080P, 1080I, 720P. Maximum 1920* 1080@60Hz
► Strong compatibility, without selecting signal sources and devices

8Ch 3G-SDI Fiber Transmitter Receiver Technical Indexes

Fiber Optical interface
Fiber interface	Simplex LC
Transmission distance	20Km
Wavelength	1310nm/1550nm
Video
Video interface	BNC
Video input/output impedance	75Ω
Video input/output voltage	Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp
Video Bits Rate	Max 3.2Gb/s
Differential gain (10%～90% APL)	<1%
Video SDI standard	270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI)
	SMPTE425M3Gb/s Mapping(3G-SDI)
	SMPTE424M 3Gb/s serial interface(3G-SDI)
Video Input	8 Channel with Loop Out on TX
Video Output	8 Channel with Loop Out on RX
Ethernet
Standards	IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5G/5GBASE-T IEEE 802.3an 10GBASE-T IEEE 802.3ae 10Gbps Ethernet IEEE 802.3x full-duplex flow control
Interface	1 x 10G/5G/2.5G/1G/100BASE-T RJ45
Working mode	Auto-negotiation by default
LED Indicator
PWR	Power Supply
SDI 1~8	3G-SDI Signal
ACT	RJ45 Ethernet Signal
LINK	Link Status

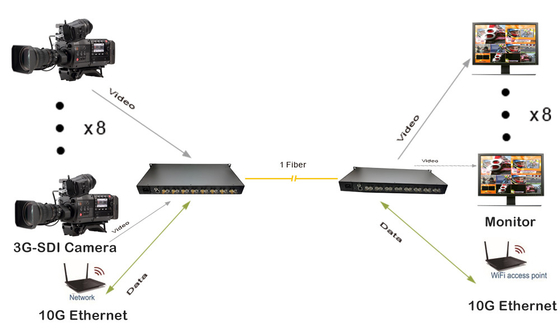

8 Channels 3G SDI Fiber Extender Over Ethernet Overview
The 8-channel uncompressed 3G-SDI digital optical transceiver is composed of 8-channel 3G-SDI and 1-channel 10G network port, and transmits high-definition SDI signals through single core single-mode optical fibers. Optical transceiver transmission has the advantages of long transmission distance (1-80km), wide frequency band, strong anti-interference performance, high safety performance, small size, and light weight, making it suitable for long-distance and special environment transmission.

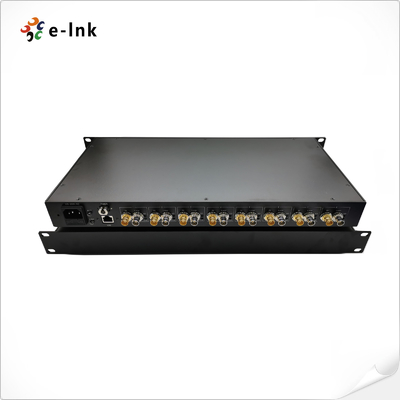

8 Channels 3G-SDI Fiber Converter With 10G Ethernet And Loop Out SMF 20KM 0

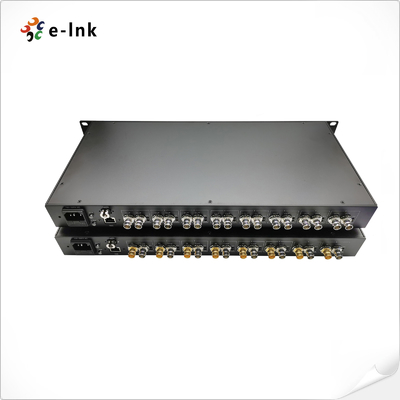

8 Channels 3G-SDI Fiber Converter With 10G Ethernet And Loop Out SMF 20KM 1
8-Channels 3G-SDI Fiber Converter With 10G Ethernet Ordering Information

Model	Description
LNK-3G8V10GE	8Ch 3G-SDI Fiber Converter with 10G Ethernet and loop out, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs
