Product Details:
Payment & Shipping Terms:
|
| Product Name: | 12G SDI Over Ethernet Fiber Transmitter Receiver | Video Format: | SD / HD / 3G / 6G / 12G-SDI |
|---|---|---|---|
| Input: | 1-Channel 12G-SDI On BNC | Output: | 1-Channel 12G-SDI Loop-out On BNC |
| Data Type: | 2Ch Backward RS485 | Fiber Type: | 2 X FC Optical Fiber |
| Ethernet: | 10/100/1000Mbps | Video Distance: | Up To 10KM |
| Dimensions (LxWxH): | 117 X 80 X 24 (mm) | Operating Temperature: | -10℃～70℃ |
| High Light: | 12G SDI Fiber Extender,1000Mbps Ethernet Fiber Extender,2 Channels Backward Fiber Extender |
||

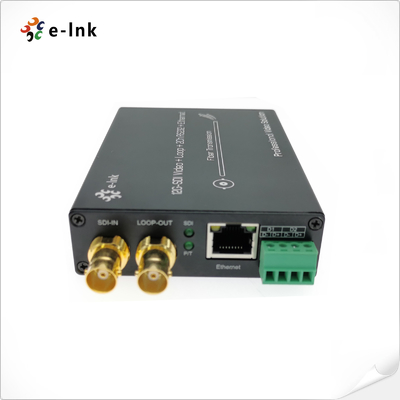

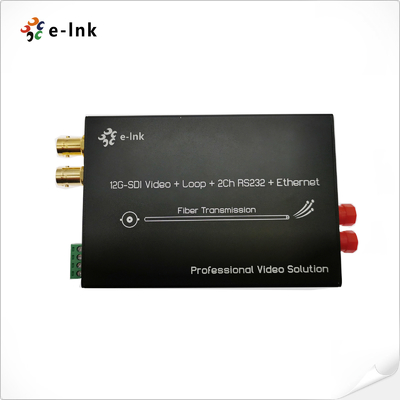

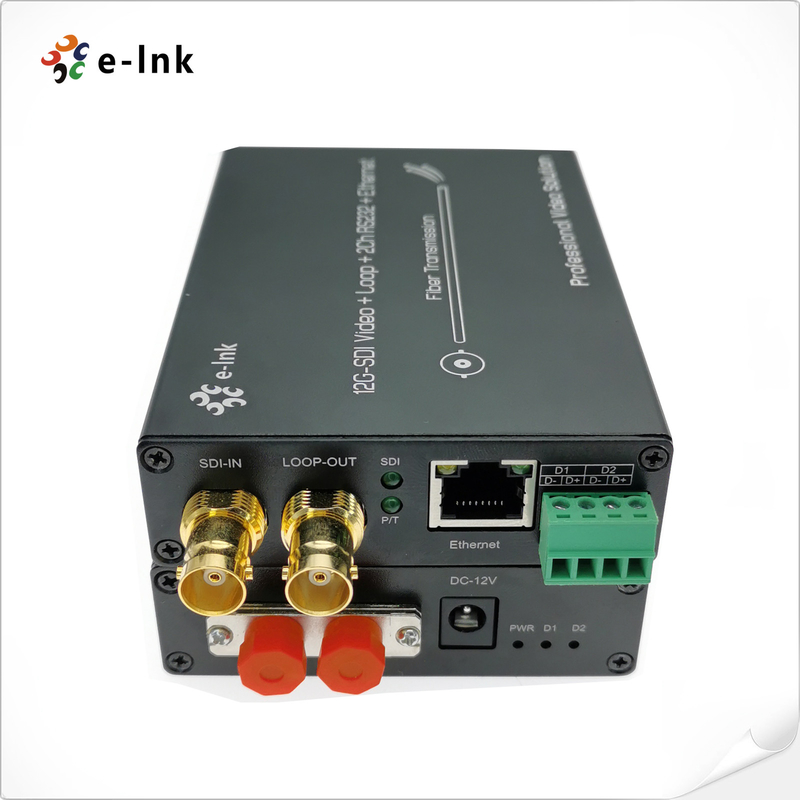

12G SDI Fiber Extender With 10/100/1000Mbps Ethernet and 2 Channels Backward RS485
3G/6G/12G SDI Fiber Extender Advantages
►Directly compatible with 12G/6G/3G-SDI camera systems
►Long transmission capability up to 20 km
►Support 2Ch Backwards RS485
►Supports 1Ch 10/100/1000M Ethernet
►Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) and ST-259(SD)
►Integrated Reclocker Locks to SMPTE Rates of 11.88Gbps, 5.94Gbps, 2.97Gbps, 1.485Gbps or Divide-by-1.001 Subrates and 270 Mbps
12G-SDI Over Fiber Extender Technical Indexes
|
Formats |
Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) And ST-259(SD) |
|
Compatible |
Compatible With DVB-ASI and AES10 (MADI) |
|
Input |
1 x 12G-SDI on BNC |
|
Output |
2 x FC optical fiber |
|
1 x 12G-SDI loop-out on BNC |
|
|
Supported Resolution |
HDTV 4K*2K, 1080P, 1080I, 720P |
|
Resolution range |
3840*2160@60Hz |
|
Input cable specification |
≤70m@12G SDI Belden 1694A |
|
Output cable specification |
≤60m@12G SDI Belden 1694A |
|
Ethernet |
10/100/1000Mbps |
|
Data type |
2Ch Backward RS485 |
|
Optical transmission bandwidth |
270MHz～12GHz |
|
Power |
12 VDC |
|
Power Consumption |
6 W (Max.) |
|
Dimensions (LxWxH) |
117 x 80 x 24 (mm) |
|
Operating Temperature |
-10℃～70℃ |
|
Storage Temperature |
-40℃～85℃ |
12G SDI Optical Extender Over Ethernet Overview
LNK-12GSDI-1V2R1GE Series 12G-SDI Fiber Converter supports 1Ch 12G Video (audio embedded) &1Ch Gigabit Ethernet&2Ch Backward RS485 transmitted via fiber optical cable, and monitor the signal locally over a 12G loop output. E-link 12G Video over Fiber Converters includes one transmitter and one receiver for HDTV 4K*2K(3840*2160@60Hz), 1080P,1080I, 720P.
12G-SDI Fiber Converter With 10/100/1000Mbps Ethernet Ordering Information
|
Model |
Description |
|
LNK-12GSDI-1V2R1GE
|
12G-SDI to Fiber Converter with Gigabit Ethernet and 2Ch Backward RS485, SMF, LC Fiber Connector 10KM, including Transmitter and Receiver, used by pairs
|
