Product Details:
Payment & Shipping Terms:
|
| Product Name: | SDI Fiber Optic Extender | Signal Format: | 3G-SDI / HD-SDI / SD-SDI |
|---|---|---|---|
| SDI Connector: | SMB | SM Wavelength: | 1310nm, 1550nm |
| Power Supply: | 5VDC 1A | Weight: | 100g/pair |
| Casing: | Aluminum Case | Working Temperature: | 0~70˚C |
| Dimensions (LxWxH): | 58 X 21 X 20 Mm | ||
| High Light: | 3G HD Fiber Optic Extender,Simplex LC 20KM Fiber Optic Extender |
||

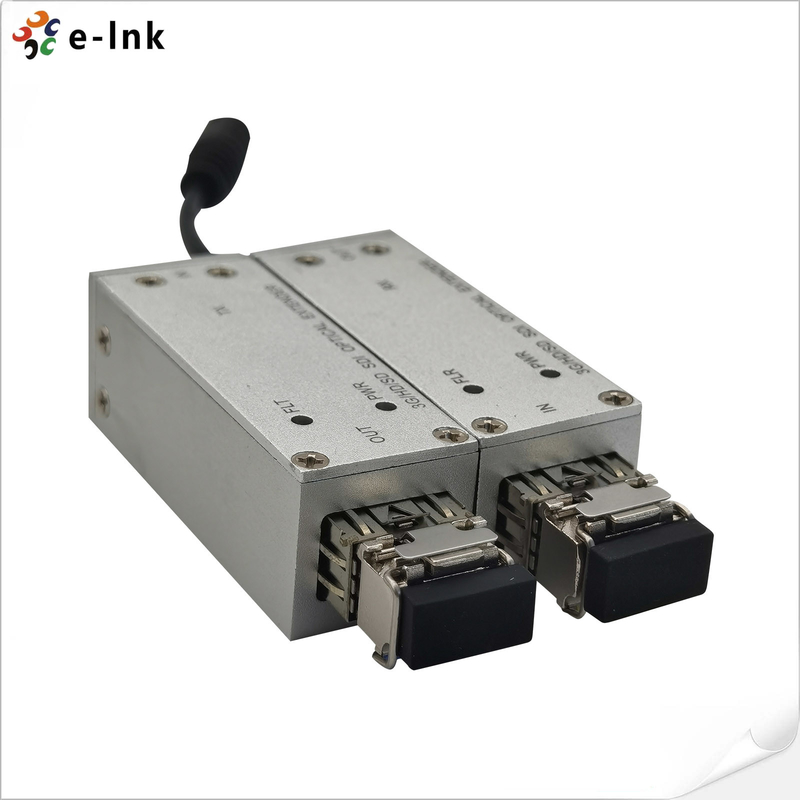

3G/HD/SD-SDI Fiber Optic Extender SMB Connector Simplex LC 20KM
Single Mode SDI Fiber Extender Advantages
► CWDM technology to allow up to 16(18) channels to transmit over one fiber
► Convenient instruction of LED status. Fiber link indicator, power
► PCB board is environmentally friendly (Pb-free)
► PCB board with multilayer design to ensure stable and reliable signal transmission
3G SDI Fiber Transmitter Receiver Technical Indexes
|
SDI Input |
|
|
Video standard |
SMPTE424M, SMPTE292M, SMPTE259M, SMPTE297M, SMPTE310M, SMPTE305M (SDTI) |
|
Signal standard |
SD-SDI(270Mbps), HD-SDI(1.485Gbps), 3G-SDI(2.97Gbps) |
|
Resolution |
10 Bit |
|
Signal level |
<380mVp-p |
|
Impedance |
75Ω |
|
Connector |
SMB |
|
SDI output |
|
|
Signal level |
800mVp-p±10% |
|
Rise/Fall time |
<0.8ns |
|
HD-SDI Jitter |
<0.2UI(134ps)@100kHz, <1.0UI(673ps)@10Hz |
|
SDI Jitter |
<0.2UI(740ps)@10Hz, 0.2UI(740ps)@1kHz |
|
Impedance |
75Ω |
|
Connector |
SMB |
|
Optical Interface |
|
|
SFP |
Simplex LC, 3,125Gbps. ≤120km transmission distance |
|
Standard SM wavelength |
1310nm, 1550nm |
|
CWDM wavelength |
1270~1610nm, 20nm grid according ITU-T |
|
Temperature range |
0~70˚C |
|
Electrical |
|
|
Power |
5VDC, 1A |
|
Consumption |
<5W |
|

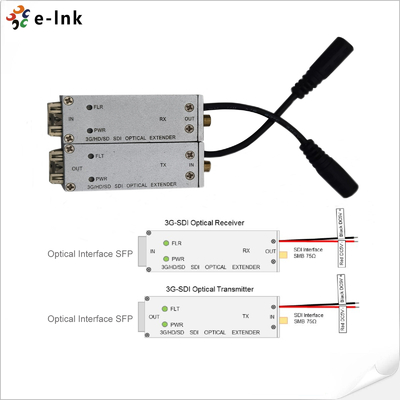

LED Indicator |
|
|
FLT |
Fiber link status (Transmitter) |
|
FLR |
Fiber link status (Receiver) |
|
PWR |
Power status |
3G-SDI Optical Fiber Transceiver Overview

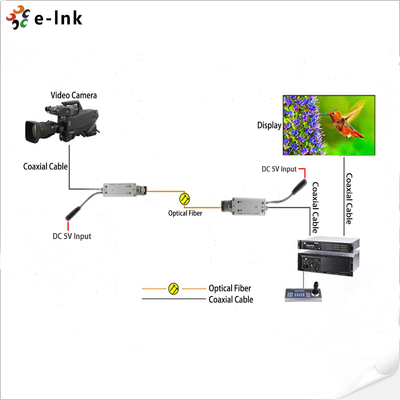

The LNK-M3G-SMB1V20 series 3G-SDI/HD-SDI/SD-SDI micro extender fiber optic transmission system transmits a 3G-SDI, HD-SDI, SD-SDI high-definition digital video or a DVB-ASI stream through a single mode or multimode fiber that supports SMPTE424M, SMPTE259M, SMPTE297M, SMPTE310M, and SMPTE305M (SDTI) standards. With its advanced digital fiber optic transmission technology, there is no need for adjustment, simple setup, and easy operation. The SDI mini extender series uses a 5V power supply with low power consumption.
SMB 3G-SDI Over Fiber Converter Ordering Information
|
Model |
Description |
|
LNK-M3G-SMB1V-20 |
SMB 3G/HD/SD-SDI Optical Micro-Extender, 1310/1550nm, Simplex LC, Single Mode, 20KM including Transmitter and Receiver, used by pairs |
