Product Details:
Payment & Shipping Terms:
|
| Product Name: | 4-Channel 3G-SDI Fiber Transmitter Receiver | Data Type: | 1Ch RS485 & 4Ch Tally |
|---|---|---|---|
| Video Input: | 4 X 3G/HD/SD-SDI On BNC | Supported Resolution: | 1080P/1080i/720p |
| Fiber Output: | 1 X FC/ST/SC/LC Optical Fiber | Fiber Type: | Single Mode Simplex Fiber |
| Power Input: | 12VDC 1A | Working Temperature: | -20℃~+70℃ |
| Warranty: | 3 Years | ||
| High Light: | 4 Channel Fiber Extender,Fiber Extender With Backward RS485 |
||

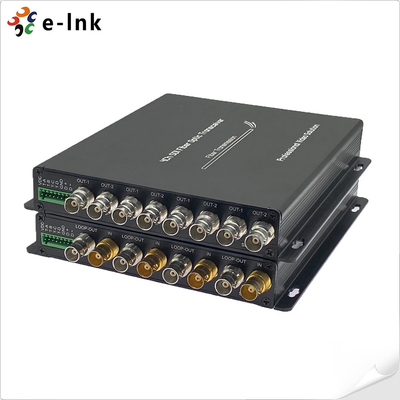

4-Channel 3G-SDI Fiber Extender with Backward RS485 & 4Ch Tally 20KM FC Connector
4Ch 3G SDI Video Over Fiber Extender Advantages
► 4 channel 3G-SDI video transmission over optic fiber
► Directly compatible with HD-SDI camera systems
► SLong transmission capability at least 20 km (40~80km Optional)
► Support 1-Channel RS485 and 4-Channels Tally
4-Channels 3G SDI Fiber Transmitter Receiver Technical Indexes
|
SDI Input |
SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI, DVB-SSI and Telecom/Datacom |
|
270Mbit/s - 1.48Gbit/s – 3Gbit/s |
|
|
Input number: 4 |
|
|
Reflection loss: >15DB |
|
|
Equilibrium: 0-150m @3Gb/s |
|
|
Connector: BNC |
|
|
Optics |
Channel: 1 |
|
Type: single-mode |
|
|
Transmission distance: 20km (Other distance Optional) |
|
|
Reflection loss: > 15dB |
|
|
Dithering: < 0.2UI |
|
|
Connector: FC/UPC (SC, LC, ST optional) |
|
|
SDI Output |
Output number:4 |
|
Signal level: 800mV nominal |
|
|
Rise/fall time: 200ps indication |
|
|
Overshoot: < 10% amplitude |
|
|
Reflection loss: >15dB |
|
|
Dithering: < 0.2UI |
|
|
Connector: 75Ω BNC |
|
|
Data |
1Ch RS-485 (full/half duplex) and support NRZ, RZI and Manchester |
|
Max. 57600bps for RS485 |
|
|
4Ch Tally: A, B , C, D |
|
|
SDI video format supports |
625/25PAL; 525/29.97NTSC; 525/23.98NTSC; 720p50; 720p59.94; 1080P23.98/24/30/50/60; 1080i 23/24/30/50/59.94; |
3G-SDI Optical Fiber Transceiver
1. Tally Connections
|
|
T-A |
T-B |
T-C |
T-D |
GND |
|
LED Type |
SDI-A |
SDI-B |
SDI-C |
SDI-D |
GND |
Receiver TALLY Signal Input Connection: (LED load type is only suitable for OC derive LED - driver)
|
|
A |
B |
C |
D |
VDD |
|
LED Type |
SDI-A |
SDI-B |
SDI-C |
SDI-D |
2. RS485 Connections
|
GND |
D+ |
D- |
4 Channels 3G-SDI Over Fiber Transmitter Receiver Ordering Information
|
Model |
Description |
|
LNK-HDSDI-4V1D4T |
4-Ch HD-SDI Video with Loop output + 1Ch backward RS485 + 4Ch Tally, SM 20km, FC, including 1 transmitter & 1 receiver, used by pairs |
|
LNK-3GSDI-4V1D4T |
4-Ch 3G-SDI Video with Loop output + backward RS485 + 4Ch Tally, SM 20km, FC, including 1 transmitter & 1 receiver, used by pairs |
