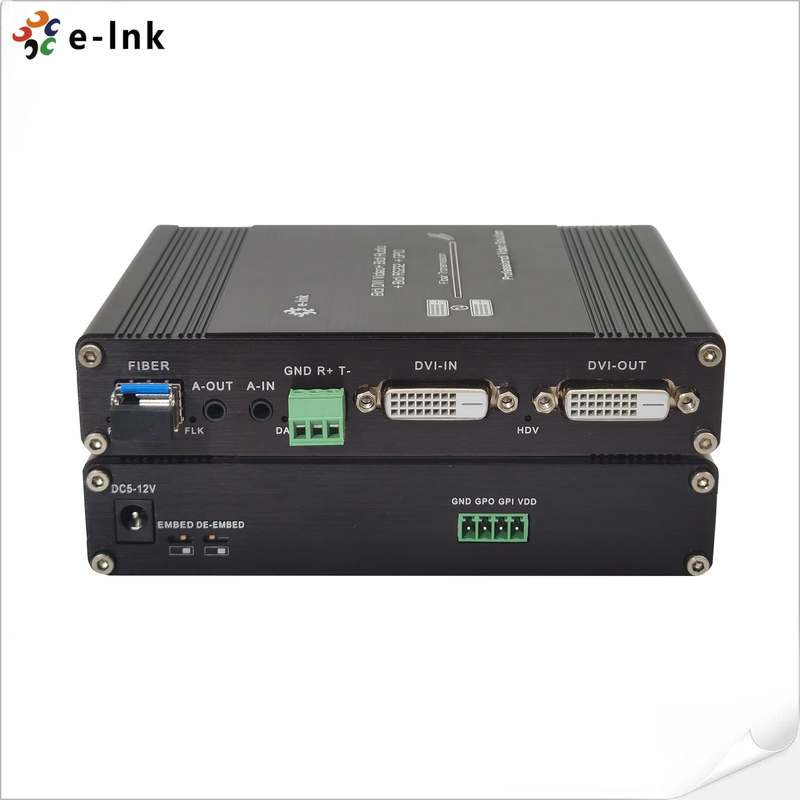

1080P BIDI DVI Fiber Optic Extender With RS232 And BIDI Stereo Audio OEM

Name: 1080P BIDI DVI Fiber Optic Extender With RS232 And BIDI Stereo Audio OEM
Brand: E-link
SKU: LNK-B-DVI-1DA1GO
Rating: 4.9 (200 reviews)

Large Image : 1080P BIDI DVI Fiber Optic Extender With RS232 And BIDI Stereo Audio OEM

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE,FCC,RoHs
Model Number:	LNK-B-DVI-1DA1GO

Payment & Shipping Terms:

Minimum Order Quantity:	1 pair
Price:	Negotiation
Packaging Details:	DVI Fiber Extender Standard Export Package
Delivery Time:	7 days
Payment Terms:	Western Union, L/C, T/T, MoneyGram
Supply Ability:	2000 pairs/month

Contact Now

Detailed Product Description

Keywords:	DVI Fiber Optic Extender With RS232	Video Standards:	DVI 1.0; HDCP 1.2
Audio Interface:	3.5mm Earphone Seat	Fiber Type:	Single-mode Single Fiber
RS232 Baud Rate:	115200bps Max	Power Adapter:	DC 12V/1A
High Light:	1080P BIDI DVI Fiber Optic Extender , DVI Fiber Optic Extender OEM , RS232 DVI Optical Extender

OEM 1080P BIDI DVI Video Fiber Extender With BIDI RS232 And BIDI Stereo Audio
DVI Fiber Extender Advantages
► Transmits Bi-directional DVI video signals up to 20km over one fiber optic cable;
► Support video resolution up to 1920*1200P@60Hz;
► Support external stereo audio bi-directional transmission;
► Support RS232 signal bi-directional transmission, baud rate self-adaptive;
► Support general-purpose input/output (GPIO) signal;
► High compatibility, can auto-match source and display device
Fiber Optic Converter With RS232 Technical Indexes

Video	Standards	DVI 1.0; HDCP 1.2
Video	Resolution	19201200@60Hz 19201080@50Hz 19201080@30Hz 19201080@25Hz 19201080@24Hz 1080I@60Hz 1080I@50Hz 1280720@60Hz 1280*720@50Hz
Audio	Interface	3.5mm earphone seat
Audio	Signal type	Stereo
GPIO	Interface	Industrial terminal
RS232	Signal direction	Bi-directional
RS232	Baud rate	Self-adaptive, Max:115200bps
Optical fiber	Interface	LC connector
	Fiber type	Single-mode single fiber
	Wavelength	Single-mode 1310nm
	Transmission distance	standard 10km
Other	Power supply	The power adapter: DC 12V/1A
	Power dissipation	MAX 6W

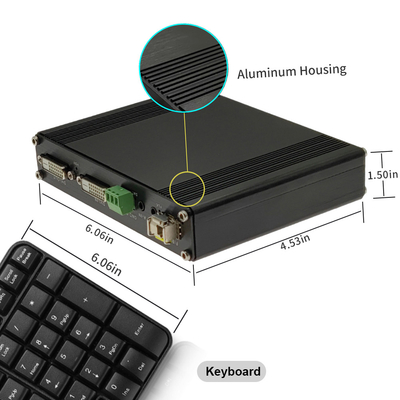

	Dimension (LxWxH)	15411538mm
	The warranty	1-year warranty

BIDI DVI Video Transceiver Overview

The LNK-B-DVI-1DA1GO Fiber optic extender provides extension of DVI signals long distances over one fiber optic cable, it supports high resolution up to 1080P, RS232, GPIO signal and external audio transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

DVI over Transmitter Receiver Ordering Information
