E-link China Technology Co.,Ltd.
Professional Fiber Optical Communication and CCTV Security Transmission Product Manufacturer
|
Product Details:
Payment & Shipping Terms:
|
| Key Words: | 10M Fiber Media Converter | Connector: | 1x RJ45 10Base-T |
|---|---|---|---|
| Optical Port: | 1 X ST 10Base-FL | Input Power: | 12~48VDC |
| Mounting Options: | DIN-Rail And Wall-Mount | Operating Temperature: | -40°C To 75°C |
| Highlight: | Ethernet Media Converter 48VDC,ST Connector Ethernet Media Converter,10M Fiber Media Converter |
||

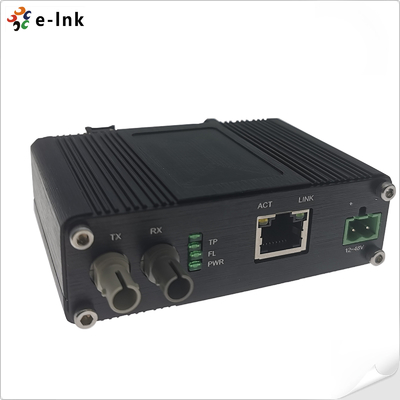

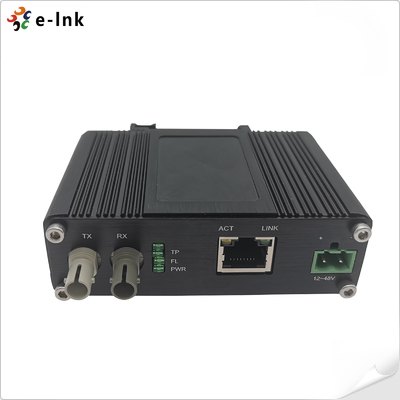

OEM Mini Industrial 10BASE-T To 10BASE-FL Ethernet Media Converter ST Connector
Industrial Media Converter Advantages
► Complies with 802.3 10Base-T and 10Base-FL standards
► Extends network span from up to 2km(Multi mode)
► Interoperable with other 10Base media converters, 10Base, 10Base-T NICs, hubs or switches
► Provides LEDs for easy network monitoring
► Supporting Quality of Service (QoS), ensuring the transmission of VoIP packets
10M Fiber Media Converter Technical Indexes
| Standards: | IEEE 802.3 |
| 10 Base-T | |
| 10 Base-FL | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| IEEE802.3x Full duplex and flow control | |
| Wavelength: | 850nm |
| Buffer Space: | Built in 128Kb RAM for data buffer |
| Flow Control: |
Full duplex: flow control; Half duplex: back pressure |
| Cable Length: |
50/125um or 62.5/125um Multi-mode duplex fiber optic cable for 10Base-FL 100 meters max. for UTP 2000 meters max. for fiber optic Multi-mode |
| Transmission type: | Base band |
| Connection switch: | 2-position 10Base-T switch on RJ-45 side (hub or W/S) |
| LED Indicators: | |
| PWR: | Power Status |
| ACT: | Data LINK Status |
| TP: | Ethernet Status |
| FL: | Fiber LINK Status |
Fiber to Copper ST Media Converter Overview
E-link Mini Industrial 10Base-T Ethernet to 10Base-FL fiber optical media converter converts your existing 10Base-T Ethernet to a 10Base-FL network with single mode or multimode fiber optic cable up to 20,000 meters.
It’s a hardened product with wide operating temperature range from -40°C to 75°C, and ruggedized aluminum housing. The Ethernet port supports both half-duplex and full-duplex mode. The rugged hardware design ensures that your Ethernet equipment can withstand demanding industrial conditions. The LNK-IMC10FST Series are easy to mount on a DIN rail or in distribution boxes.
Fiber Optic Ethernet Media Converter Ordering Information
| Model | Description |
| LNK-IMC10FST-MM | Mini Industrial 10BASE-T to 10BASE-FL Ethernet Media Converter, multi-mode, 2km, 850nm, ST |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |
