Industrial PoE Media Converter 10GBase-X SFP To 10G 5G 2.5G 1G 100M Base-T 802.3bt

Name: Industrial PoE Media Converter 10GBase-X SFP To 10G 5G 2.5G 1G 100M Base-T 802.3bt
Brand: E-link
SKU: LNK-GY10GP-SFP
Rating: 4.8 (137 reviews)

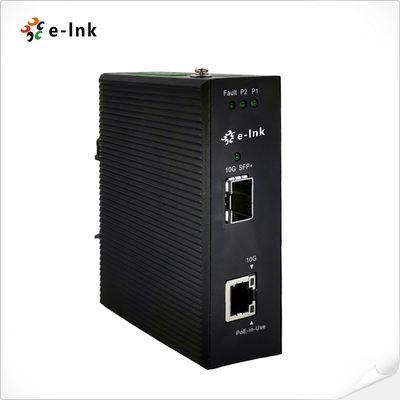

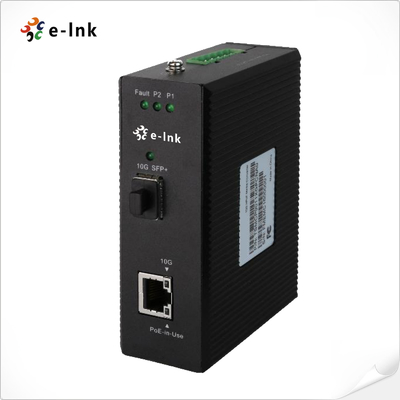

Large Image : Industrial PoE Media Converter 10GBase-X SFP To 10G 5G 2.5G 1G 100M Base-T 802.3bt

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE,FCC,RoHs
Model Number:	LNK-GY10GP-SFP

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiation
Packaging Details:	PoE Media Converter standard export package
Delivery Time:	7 working days
Payment Terms:	Western Union, L/C, T/T, MoneyGram, Paypal
Supply Ability:	2000pcs/per month

Contact Now

Detailed Product Description

Key Words:	10G Fiber PoE Media Converter	Connector:	10G/5G/2.5G/1G/100M Base-T RJ45
Optical Port:	10GBase-X SFP Interface	Input Power:	44~57V DC
Mounting Options:	DIN-Rail And Wall-Mount	Casing:	IP40 Aluminum Case
Highlight:	Aluminum Case PoE Media Converter , 10G Fiber PoE Media Converter , 802.3bt PoE Media Converter

Industrial 10GBase-X SFP To 10G 5G 2.5G 1G 100M Base-T 802.3bt PoE Media Converter
802.3bt PoE Media Converter Advantages
►One 10G/5G/2.5G/1G/100M Base-T RJ45 interface with IEEE 802.3bt PoE++ injector function
►One 10GBASE-X SFP+ slot interface
►Complies with IEEE 802.3bt PoE++ Type-4 PSE
►Supports PoE Power up to 90 watts for PoE port
►44~57V DC redundant power with reverse polarity protection
►Compact fanless design avoids overheating
10G 90W PoE Media Converter Technical Indexes

Standards:	IEEE 802.3u Fast Ethernet
	IEEE 802.3ab Gigabit Ethernet
	IEEE 802.3bz 2.5G/5GBASE-T
	IEEE 802.3an 10GBASE-T
	IEEE 802.3ae 10Gbps Ethernet
	IEEE 802.3x Full-Duplex Flow Control
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE 802.3bt 4-pair Power over Ethernet
	IEEE 802.3at Power over Ethernet Plus PSE
	IEEE 802.3af Power over Ethernet Plus
Network Cables	10G/5G/2.5G/1G/100M Base-T: 10G - Cat 6A/7 5G - Cat 6/6A/7 2.5G/1G - Cat 5e/6/6A/7 100M – Cat 5/5e/6/6A/7 Cat 5/5e/6/6A/7 UTP cable (max 100 meters) EIA/TIA-568 100-ohm STP (max 100 meters) 10GBase-LR/SR/BX: 50/125um or 62.5/125um multi-mode fiber optic cable, up to 300m 9/125um single-mode fiber optic cable, up to 80km
Connector:	1 x 10G/5G/2.5G/1G/100M Base-T RJ45 interface with IEEE 802.3bt PoE++ injector function
Optical Port:	1 x 10GBase-X SFP+ interface
PoE Power Output:	802.3bt PoE++ : 90W
PoE Power Supply Type:	End-span + mid-span
Power Pin Assignment:	End-span: 1/2 (-), 3/6 (+); mid-span: 4/5 (+), 7/8 (-)
Input Power:	44~57VDC (Terminal Block)
Power Consumption:	System ON without loading: 48V DC: 4.36W Full loading with PoE++: 48V DC: 98W
Dimensions (WxDxH):	3.03 x 1.48 x 4.21 in (77 x 37.5 x 107mm)
Weight:	270g

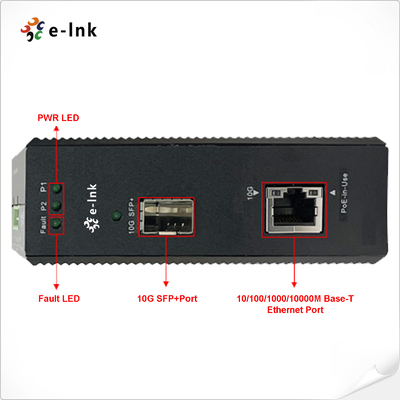

LED Indicators:
P1/P2:	Power Status
Fault:	Fault Alarm
10G:	10G Ethernet Link Status
10G SFP+:	10G SFP+ Link Status

Fiber to Copper Media Converter Overview
The E-link 10G HPoE Media Converter is the smallest industrial-grade 10G Ethernet media converter (from 10000Base-X SFP+ to 10G/5G/2.5G/1G/100M Base-T Copper) with 802.3bt Power over Ethernet Plus Plus (PoE++) injector function to deliver up to 90W of power output and high data transmission speed to PDs (powered devices) installed in a remote area where sufficient and reliable power input is required, providing non-blocking wire-speed performance and great flexibility for 10G Ethernet extension in harsh industrial environment. It is equipped with one 10G/5G/2.5G/1G/100M Base-T RJ45 copper interface and one 10GBase-X SFP+ fiber optic interface delivered in an IP40 rugged but compact sized strong case with redundant power system (44~57VDC).
Industrial PoE Media Converter 10GBase-X SFP To 10G 5G 2.5G 1G 100M Base-T 802.3bt 0
10G Ethernet Media Converter Ordering Information

Model	Description
LNK-GY10GP-SFP	Industrial 10GBase-X SFP+ to 10G/5G/2.5G/1G/100M Base-T 802.3bt PoE++ Media Converter
SFP+ Options	► SFP+ option. Please select your SFP on our SFP Options Page (Industrial SFP).
SFP+ Options	► SFP+ module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed;
Power Options	► 120W/2.5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
Power Options	► Power Supply is to be purchased separately
