E-link China Technology Co.,Ltd.
Professional Fiber Optical Communication and CCTV Security Transmission Product Manufacturer
|
Product Details:
Payment & Shipping Terms:
|
| Key Words: | 802.3at PoE PD Gigabit Media Converter | Data Rate: | 10/100/1000Mbps |
|---|---|---|---|
| Input Power: | DC 48V~54V Or DC 5~15V | PoE Standard: | 802.3af/at/bt |
| Mounting Options: | Desktop | Casing: | IP40 Aluminum Case |
| High Light: | 802.3at PoE Fiber Media Converter,Fiber Media Converter Aluminum Case,802.3at PoE PD Gigabit Media Converter |
||

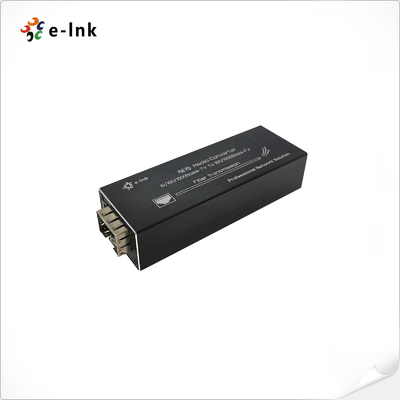

OEM Mini Gigabit 1000Mbps 802.3at PoE PD SFP Fiber Media Converter Aluminum Case
SFP Media Converter Advantages
►IEEE 802.3af/at/bt 48V~54V DC in-line power input
►SFP port support 100Base-FX or 1000Base-X dual mode (auto detection)
►USB-powered for portability, or use 5~15VDC wide range power input
►Options in single mode dual fiber, multi-mode dual fiber, and single mode in single fiber
►Aluminum Case: Conducive to heat dissipation; Lower weight and lower freight cost
Copper to Fiber Meida Converter Technical Indexes
| Max Packet Length: | 9K Bytes |
| Connector: | 1 x 10/100/1000BASE-T Ethernet TP RJ45 port |
| Optical Port: | 1 x 100/1000BASE-X SFP (LC) (auto detection) |
| Standard: | IEEE 802.3af Power over Ethernet |
| IEEE 802.3at Power over Ethernet Plus | |
| IEEE 802.3bt 4-pair Power over Ethernet Plus Plus (Type 3) | |
| IEEE 802.3bt 4-pair Power over Ethernet Plus Plus (Type 4) | |
| Input Power: | IEEE 802.3af/at/bt PoE 48V-54V DC in-line power or optional DC 5~15V(Type-C) external power adapter(Not included in standard package) |
| Power Consumption: |
DC 48V PoE In: 3.1 watts/10.5BTU DC 54V PoE In: 3.2watts/10.9BTU |
| LED Indicators: | |
| PWR: | Power Status |
| TX: | LINK100/1000, TP cable rate 100/1000M |
| FX/ACT: | Optical link action /TP cable packet forwarding action |
| Dimensions (WxDxH): | 78 x 27 x 18 mm |
| Weight: | 46g |
| Operating Temperature: | -20°C to 70°C (-4°F to 158°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
Gigabit Ethernet Media Converter Overview

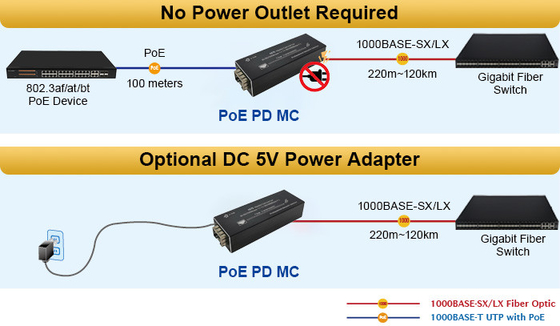

The LNK-M3011SFP-PD features two kinds of power input system designs (IEEE 802.3af/at/bt 48V~54V DC in-line power and optional 5~15V DC input) incorporated into customer’s network to enhance system reliability and uptime. However, that has to depend on the kind of Ethernet environment that is needed, be it the LNK-M3011SFP-PD operated as a PoE PD media converter or standard Gigabit media converter with optional 5~15V DC input. The Micro Mini Media Converters are excellent solutions for fiber-to-the-laptop applications where you need Gigabit fiber connectivity but local power isn't available.
Power Over Ethernet PD Media Converter Ordering Information
| Model | Description |
| LNK-M3011SFP-PD | Micro Mini 802.3at PoE+ PD 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter |
| SFP Options | SFP option. Please select your SFP on our SFP Options Page (Industrial SFP) |
| SFP module is to be purchased separately | |
| Mounting Options | Desktop |
| Power Options | IEEE 802.3af/at/bt 48V~54V DC in-line power |
| Optional 5~15V DC input |
