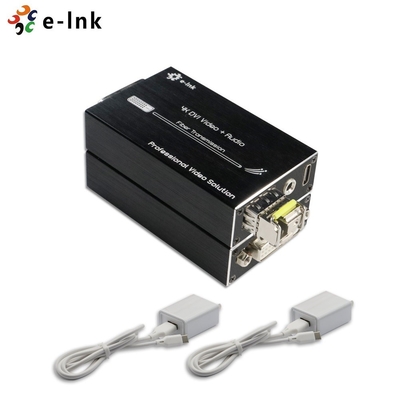

OEM Micro 4K 60HZ DVI Fiber Optic Extender Transceiver With Stereo Audio 5VDC Power
DVI Video Audio Converter Advantages
►DDC HPDT Signal Support
►Support 3.5mm External Stereo Audio
►Transmission distance up to 80km over fiber cable
►Supports All Modes up to maximum 4K*2K@60Hz, YUV 4:2:0

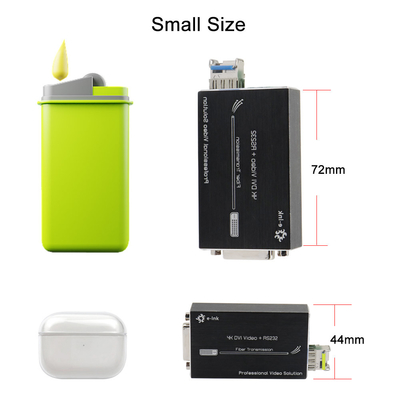

►Miniature form factor for ease of use and installation
Fiber Optical Extender Technical Indexes
|
Type of Extender |
Fiber Transmitter for DVI signal over Optical Fiber Cable |
|
Signal Support |
DVI 1.0 format standard and HDCP compliant |
|
Video Support |
Up to 720P/960P/1080p@60Hz, 4K*2K@60Hz |
|
Audio Support |
Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH) |
|
Chroma Subsampling |
Max 3840*2160@60Hz (4:2:0) Max 3840*2160@30Hz (4:4:4, 4:2:2) |
|
EDID |
Bi-Directional (Forward + Backward) Transmission: Support Dynamic EDID, Plug & Play, no need to learn Single-Directional (Forward) Transmission: Support EDID learning manually |
|
Audio Interface |
3.5MM external stereo audio |
|
Fiber Connector |
SFP/LC |
|
Bandwidth |
10.2Gbps |
|
Transmission Distance |
300m (Over OM3 Fiber) |
|
Up to 80km (Over Single-mode Fiber) |
|
|
Operating Temperature |
-10 ~ + 50°C |
|
Storage Temperature |
-20 ~ + 80°C |
|
Humidity |
5% to 90% RH (non-condensing) |
|
MTBF |
100,000 hours |
|
Power Supply |
5V DC (USB-C) |
DVI Fiber Optical Transceiver Overview

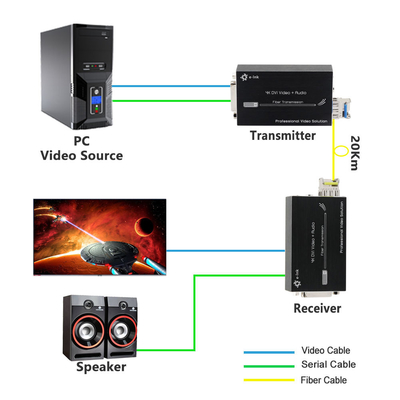

The transceivers are RoHS compliant and lead-free per requirements in Europe and China. This product is ideal for large-screen display, conferencing systems and home entertainment and so on. The device has the ability of anti-interference, to ensure the stability of the signal.
Mini DVI over Transmitter Receiver Ordering Information
|
Model |
Description |
|
LNK-MDA4K-MM |
Mini DVI Fiber Extender: 1Ch DVI Signal(4K*2K) + 1Ch Stereo Audio, OM3 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, 5V DC Power Input |
|
LNK- MDA4K-S20 |
Mini DVI Fiber Extender: 1Ch DVI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Fiber, 20km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input |
|
LNK- MDA4K-S40 |
Mini DVI Fiber Extender: 1Ch DVI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Fiber, 40km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input |
|
LNK- MDA4K-S80 |
Mini DVI Fiber Extender: 1Ch DVI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Fiber, 80km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input |
