Product Details:
Payment & Shipping Terms:
|
| Keywords: | DVI Fiber Optic Extender | Power Supply: | 5V DC USB-C |
|---|---|---|---|
| Video Support: | 4Kx2K 30Hz | Baud Rate: | 38400 RS232 |
| Transmission Distance: | 300m~80km | Operating Temperature: | -10 ~ + 50°C |
| High Light: | Mini 4K DVI Fiber Optic Extender,LC Connector DVI Fiber Optic Extender,80KM DVI To Fiber Optic Converter |
||

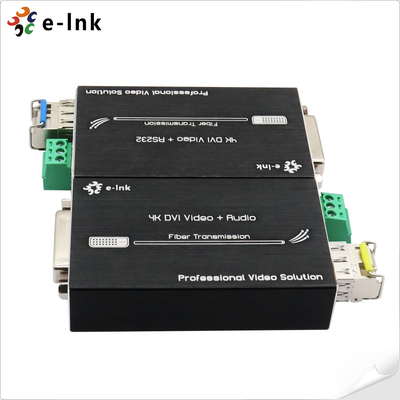

OEM Mini 4K 60HZ DVI Fiber Optic Extender With RS232 Data LC Connector Up To 80KM
DVI Video Fiber Converter Advantages
►Uncompressed transmission, No delay, No losses
►Data rate up to 10.2Gbps
►Transmission distance up to 80km over fiber cable
►Supports All Modes up to maximum 4K*2K@60Hz, YUV 4:2:0
►Auto EDID, match different kind display device
►Hot-Pluggable, EMI/RFI Resistant
Fiber Optic Converter Technical Indexes
| Input Signals | DVI |
| Signal Support | DVI 1.0 format standard and HDCP compliant |
| Video Support | Up to 720P/960P/1080p@60Hz, 4K*2K@30Hz |
| Audio Support | Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH) |
| Chroma Subsampling |
Max 3840*2160@60Hz (4:2:0) Max 3840*2160@30Hz (4:4:4, 4:2:2) |
| EDID |
Bi-Directional (Forward + Backward) Transmission: Support Dynamic EDID, Plug & Play, no need to learn Single-Directional (Forward) Transmission: Support EDID learning manually |
| RS232 | 3 Pin terminal, Baud rate ≤ 38400 |
| Fiber Connector | SFP/LC |
| Bandwidth | 10.2Gbps |
| Transmission Distance | 300m (Over OM3 Fiber) |
| Up to 80km (Over Single-mode Fiber) | |
| Operating Temperature | -10 ~ + 50°C |
| MTBF | 100,000 hours |
| Dimension (WxDxH) | 2.87 x 1.73 x 0.69in (73x44x17mm) |
| Weight | 60g / 0.13 lb |
Fiber Optical Transceiver Overview

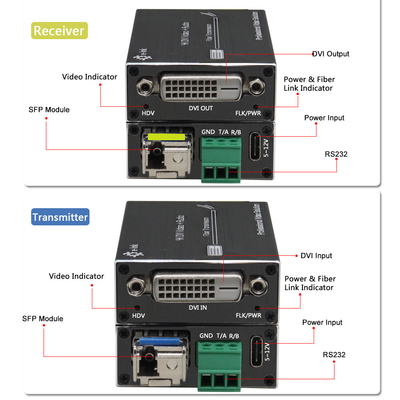

The LNK-MDR4K Series 4K DVI Fiber Extender are designed to support transmission of uncompressed DVI signal and RS232 signal over optical fiber up to distances of 80km at a resolution of maximum 4K*2K@60Hz, YUV 4:2:0. The Transmitter converts DVI signal to a single 10Gb/s serial data stream for transmission over optical fiber. The Receiver converts the serial data back to an DVI signal.
Micro DVI over Transmitter Receiver Ordering Information
| Model | Description |
| LNK-MDR4K-MM | Mini DVI Fiber Extender: 1-Ch DVI Signal(4K*2K) + Backwards RS232, OM3 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, 5V DC Power Input |
| LNK- MDR4K-S20 | Mini DVI Fiber Extender: 1-Ch DVI Signal(4K*2K) + Backwards RS232, Single-mode Fiber, 20km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input |
| LNK- MDR4K-S40 | Mini DVI Fiber Extender: 1-Ch DVI Signal(4K*2K) + Backwards RS232, Single-mode Fiber, 40km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input |
| LNK- MDR4K-S80 | Mini DVI Fiber Extender: 1-Ch DVI Signal(4K*2K) + Backwards RS232, Single-mode Fiber, 80km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input |
