12G SDI Video Fiber Converter 2Ch Backward RS485 FC Fiber With Gigabit Ethernet

Name: 12G SDI Video Fiber Converter 2Ch Backward RS485 FC Fiber With Gigabit Ethernet
Brand: E-link
SKU: LNK-12GSDI-1V2R1GE
Rating: 4.6 (192 reviews)

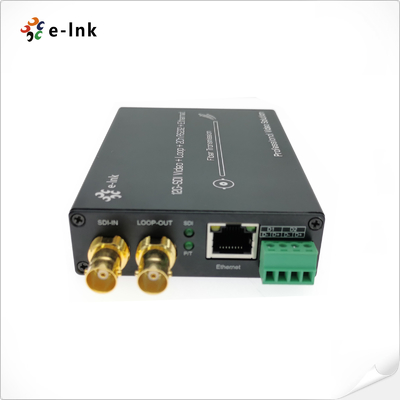

Large Image : 12G SDI Video Fiber Converter 2Ch Backward RS485 FC Fiber With Gigabit Ethernet

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE,FCC,RoHs
Model Number:	LNK-12GSDI-1V2R1GE

Payment & Shipping Terms:

Minimum Order Quantity:	1 pair
Price:	Negotiation
Packaging Details:	SDI Fiber Optic Extender Standard Export Package
Delivery Time:	7 Working days
Payment Terms:	Western Union, L/C, T/T, MoneyGram
Supply Ability:	2000 pairs/month

Contact Now

Detailed Product Description

Keywords:	Ethernet Over Fiber Converter	Resolution Range:	3840 X 2160@60Hz
Ethernet:	10/100/1000Mbps Gigabit	Data Type:	2Ch Backward RS485
Input:	1 X 12G-SDI On BNC	Fiber Port:	2 X FC Optical Fiber
High Light:	12G SDI Video Fiber Converter , Gigabit Ethernet SDI Fiber Converter , 2Ch Backward SDI Fiber Converter

12G SDI Video Fiber Converter With Gigabit Ethernet And 2Ch Backward RS485 FC Fiber
SDI Fiber Transceiver Advantages

► Directly compatible with 12G/6G/3G-SDI camera systems

► Long transmission capability up to 80 km

► Full digital non-compression broadcast level transmission

► Super optic dynamic range and free of adjustment

► Fiber optic WDM/CWDM/DWDM technique

Video Fiber Transmitter Receiver Technical Indexes

Formats	Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) And ST-259(SD)
Compatible	Compatible With DVB-ASI and AES10 (MADI)
Input	1 x 12G-SDI on BNC
Output	2 x FC optical fiber
Output	1 x 12G-SDI loop-out on BNC
Supported Resolution	HDTV 4K*2K, 1080P, 1080I, 720P
Resolution range	3840*2160@60Hz
Input cable specification	≤70m@12G SDI Belden 1694A
Output cable specification	≤60m@12G SDI Belden 1694A
Ethernet	10/100/1000Mbps
Data type	2Ch Backward RS485
Optical transmission bandwidth	270MHz～12GHz
Power	12 VDC
Power Consumption	6 W (Max.)
Dimensions (LxWxH)	117 x 80 x 24 (mm)
Operating Temperature	-10℃～70℃
Storage Temperature	-40℃～85℃

Ethernet Over Fiber Extender Overview

LNK-12GSDI-1V2R1GE Series 12G-SDI Fiber Converter supports 1Ch 12G Video (audio embedded) &1Ch Gigabit Ethernet&2Ch Backward RS485 transmitted via fiber optical cable, and monitor the signal locally over a 12G loop output. E-link 12G Video over Fiber Converters includes one transmitter and one receiver for HDTV 4K*2K(3840*2160@60Hz), 1080P,1080I, 720P.

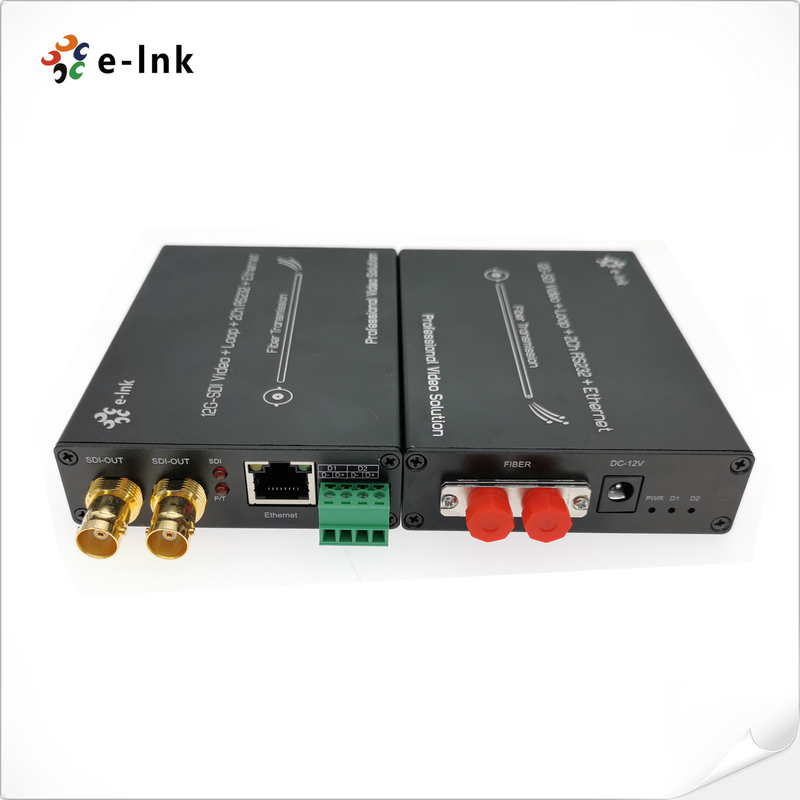

12G SDI Video Fiber Converter 2Ch Backward RS485 FC Fiber With Gigabit Ethernet 0

Ordering Information

Model	Description
LNK-12GSDI-1V2R1GE	12G-SDI to Fiber Converter with Gigabit Ethernet and 2Ch Backward RS485, SMF, LC Fiber Connector 10KM, including Transmitter and Receiver, used by pairs
