DC5V SDI To Fiber Optic Converter 20km With IR Remote Control

Name: DC5V SDI To Fiber Optic Converter 20km With IR Remote Control
Brand: E-link
SKU: LNK-SDIR
Rating: 4.5 (182 reviews)

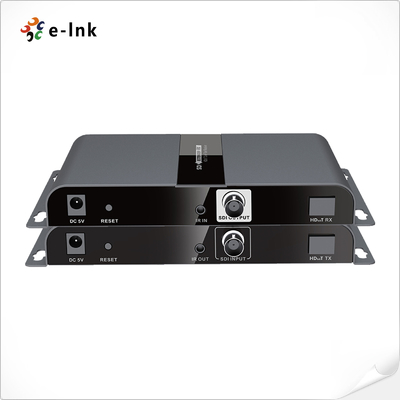

Large Image : DC5V SDI To Fiber Optic Converter 20km With IR Remote Control

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE,FCC,RoHs
Model Number:	LNK-SDIR

Payment & Shipping Terms:

Minimum Order Quantity:	1 pair
Price:	Negotiation
Packaging Details:	SDI To Fiber Optic Converter Standard Export Package
Delivery Time:	7 days
Payment Terms:	Western Union, L/C, T/T, MoneyGram, Paypal
Supply Ability:	2000 pairs/per month

Contact Now

Detailed Product Description

Keywords:	SDI Over Fiber Extender	Power Supply:	DC5V/2A
Weight:	0.6Kg	Casing:	Metal Case
Color:	Black	Mounting Options:	Desk-top / Wall-mount
High Light:	DC5V SDI To Fiber Optic Converter , 20km SDI To Fiber Optic Converter , IR SDI Over Fiber Extender

SDI To Fiber Optic Converter HD-SDI Over Fiber Extender With IR Remote Control

HD-SDI Extender Advantages

► Extend HD-SDI signal over SC optical fiber cable

► Transmit 1080P signal up to 20km

► Support SD-SDI, HD-SDI signal input

► Support IR pass-back function

Technical indexes

SDI rate	270Mb/s, 1.485Gb/s
Support resolution	SD-SDI signal: 480i@60Hz, 576i@50Hz
Support resolution	HD-SDI signal: 720P@50/60Hz, 1080i@50/60Hz, 1080P@24/25/30Hz
Transmission Distance	Extend 1080P resolution up to 20KM over SMF cables
IR remote control	Support 20~60KHz IR remote control
Operating Temperature	0°C to 60°C (32°F to 140°F)
MTBF	> 200,000 hrs
Power supply	DC5V/2A
Power Consumption:	TX<10W
Power Consumption:	RX<10W
Dimension (LxWxH)	168x95x22mm

Overview

LNK-SDIR Series SDI Fiber extender transmits 1080P SDI signal over a single optical fiber cable up to 20 km. It supports IR pass-back function and SD-SDI, HD-SDI signal input. LNK-SDIR Series HD-SDI Video over Fiber Converters includes one transmitter and one receiver for 1080P HD-SDI signal.

DC5V SDI To Fiber Optic Converter 20km With IR Remote Control 0

Ordering Information

Model	Description
LNK-SDIR-20	HD-SDI over Fiber Extender with IR Remote Control, SMF, SC, 20KM
Mounting Options	► Default Wall Mount Bracket is included.
Power Options	► DC5V/2A Power Adapter
Power Options	► Power Supply is included
