Product Details:
Payment & Shipping Terms:
|
| Item Name: | HD-SDI To Fiber Converter | Power: | 5-25VDC |
|---|---|---|---|
| Wavelength: | 1310nm/1550nm | Data Type: | Tally Or Reverse RS485 |
| Dimensions: | 80 X 40 X 20 Mm | Weight: | 1KG/pair |
| Highlight: | 25VDC SDI Video To Fiber Converter,1550nm SDI Video To Fiber Converter,BNC Hd Sdi To Fiber Converter |
||
Overview

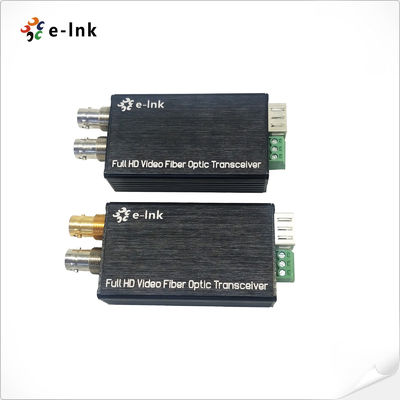

LNK-MHD-1V Series Mini-type HD-SDI Fiber Converter supports 1-channel HD-SDI Video (audio embedded) & Tally or Reverse RS485 signal transmitted via fiber optical cable, and monitor the signal locally over a HD-SDI loop output. E-link HD-SDI Video over Fiber Converters includes one transmitter and one receiver for HD-SDI signal.
Features
Technical Indexes
| Fiber Optical interface | |
| Fiber interface | Simplex LC |
| Transmission distance | 550m-20Km |
| Wavelength | 1310nm/1550nm |
| Video | |
| Video interface | BNC |
| Video input/output impedance | 75Ω |
| Video input/output voltage | Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp |
| Video Bits Rate | Max 1.48Gb/s |
| Differential gain (10%～90% APL) | <1% |
| SDI format support | 625/25 PAL |
| 525/29.97 NTSC, 525/23.98 NTSC | |
| 720p50, 720p59.94 | |
| 1080i 23/24/30/50/59.94 | |
| Video SDI standard | 270Mbps (SD-SDI) |
| 1.485Gbps (HD-SDI) | |
| Data | |
| Physical interface | Industrial standard screw terminal |
| Data type | Tally or Reverse RS485 |
| Frequency/Rate support |
Max. 115200bps for RS422 Max. 57600bps for RS485 |
| BER | <10ˉ9 |
| Electrical | |
| Power adaptor | DC 5~25V |
| Power consumption | <5W |
| LED Indicator | |
| SDI | SDI video |
| P/T | Power Supply |
| Mechanical | |
| Dimensions (LxWxH) | 80 x 40 x 20 mm |
| Weight | 1KG/pair |
| Casing | Aluminum Case |
| Mounting Options | Desktop |
| Environmental | |
| Working Temperature | -20℃～+70℃ |
| Storage Temperature | -40℃～+80℃ |
| Working Humidity | 0~95% |
| MTBF | ≥100000 hours |
Ordering Information
| Model | Description |
| LNK-MHD-1V1T-MM | Mini-type HD-SDI to Fiber Converter with Tally and loop out, MMF, LC Fiber Connector 500 meters, including Transmitter and Receiver, used by pairs |
| LNK-MHD-1V1D-MM | Mini-type HD-SDI to Fiber Converter with Reverse RS485 and loop out, MMF, LC Fiber Connector 500 meters, including Transmitter and Receiver, used by pairs |
| LNK-MHD-1V1T-20 | Mini-type HD-SDI to Fiber Converter with Tally and loop out, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs |
| LNK-MHD-1V1D-20 | Mini-type HD-SDI to Fiber Converter with Reverse RS485 and loop out, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs |
| LNK-MHD-1V1T-40 | Mini-type HD-SDI to Fiber Converter with Tally and loop out, SMF, LC Fiber Connector 40KM, including Transmitter and Receiver, used by pairs |
| LNK-MHD-1V1D-40 | Mini-type HD-SDI to Fiber Converter with Reverse RS485 and loop out, SMF, LC Fiber Connector 40KM, including Transmitter and Receiver, used by pairs |
