Product Details:
Payment & Shipping Terms:
|
| Fiber Interface: | Simplex LC | Transmission Distance: | 20Km |
|---|---|---|---|
| Wavelength: | 1310nm/1550nm | Video Input: | 8 Channel With Loop Out On TX |
| Video Output: | 8 Channel With Loop Out On RX | Ethernet Interface: | 1 X 10G/5G/2.5G/1G/100BASE-T RJ45 |
| Power Consumption: | <12W | Weight: | 8KG/pair |
| Casing: | Metal Case | Mounting Options: | Rack-mount |
| High Light: | 8Ch SDI To Fiber Optic Converter,10G SDI To Fiber Optic Converter,1310nm Rack Mount Fiber Extender |
||
Overview

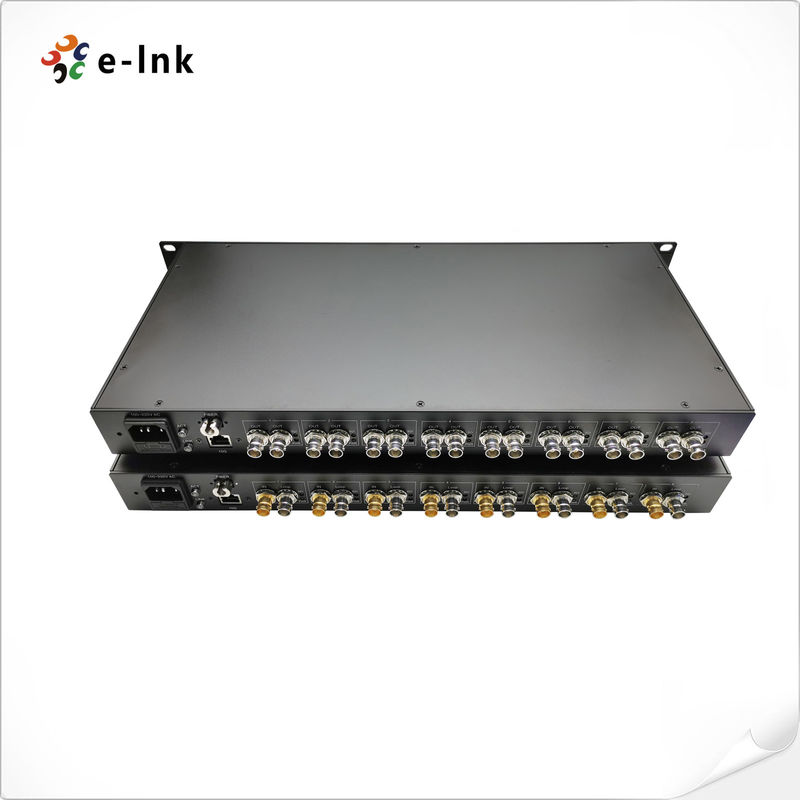

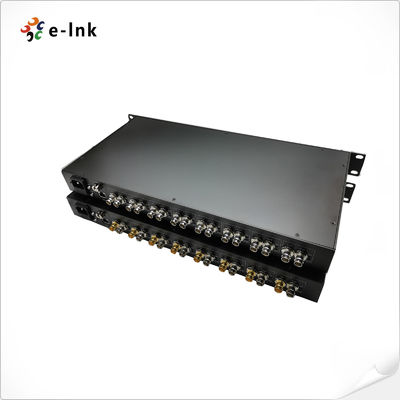

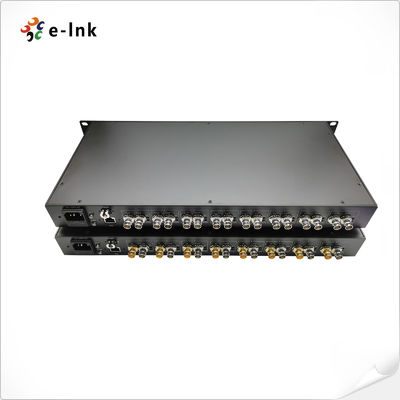

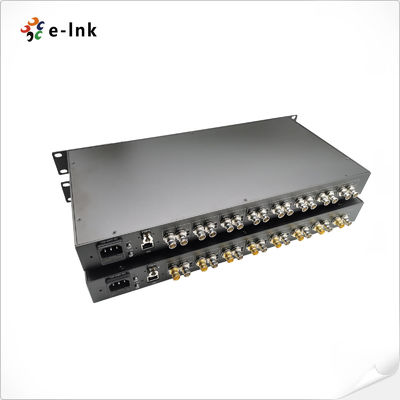

E-link LNK-3G8V10GE 3G-SDI & Ethernet fiber extender provides transmission of one 3G-SDI channel with 10G Ethernet IP channels over single mode optical cables. This SDI and IP to optical fiber converter enables high optical performance and brilliant HD video processing in real time. IP interfaces can dramatically increase scalability and compatibility with all modern high-end networking systems.
Since optical signals are not affected by electromagnetic noise, LNK-3G8V10GE makes your system more reliable and secure. It’s good solution for any HD surveillance system or live broadcasting application. All things considered, LNK-3G8V10GE pushes the limits of conventional coax CCTV or broadcast system to a completely new level and allows you to extend transmission distances up to 20km (optional 40/60/80km).
Features
Technical Indexes
| Fiber Optical interface | |
| Fiber interface | Simplex LC |
| Transmission distance | 20Km |
| Wavelength | 1310nm/1550nm |
| Video | |
| Video interface | BNC |
| Video input/output impedance | 75Ω |
| Video input/output voltage | Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp |
| Video Bits Rate | Max 3.2Gb/s |
| Differential gain (10%～90% APL) | <1% |
| Video SDI standard | 270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI) |
| SMPTE425M3Gb/s Mapping(3G-SDI) | |
| SMPTE424M 3Gb/s serial interface(3G-SDI) | |
| Video Input | 8 Channel with Loop Out on TX |
| Video Output | 8 Channel with Loop Out on RX |
| Ethernet | |
| Standards |
IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5G/5GBASE-T IEEE 802.3an 10GBASE-T IEEE 802.3ae 10Gbps Ethernet IEEE 802.3x full-duplex flow control |
| Interface | 1 x 10G/5G/2.5G/1G/100BASE-T RJ45 |
| Working mode | Auto-negotiation by default |
| Electrical | |
| Power Input | 100VAC to 220VAC |
| Power consumption | <12W |
| LED Indicator | |
| PWR | Power Supply |
| SDI 1~8 | 3G-SDI Signal |
| ACT | RJ45 Ethernet Signal |
| LINK | Link Status |
| Mechanical | |
| Dimensions (LxWxH) | 483 x 270 x 45mm (19inch 1U) |
| Weight | 8KG/pair |
| Casing | Metal Case |
| Mounting Options | Rack-mount |
| Environmental | |
| Working Temperature | -20℃～+70℃ |
| Storage Temperature | -40℃～+80℃ |
| Working Humidity | 0~95% |
| MTBF | ≥100000 hours |
Application
