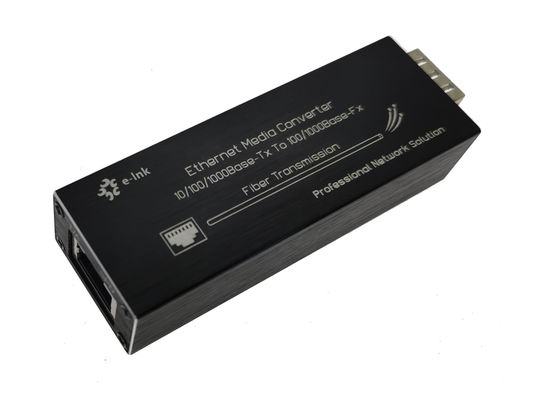

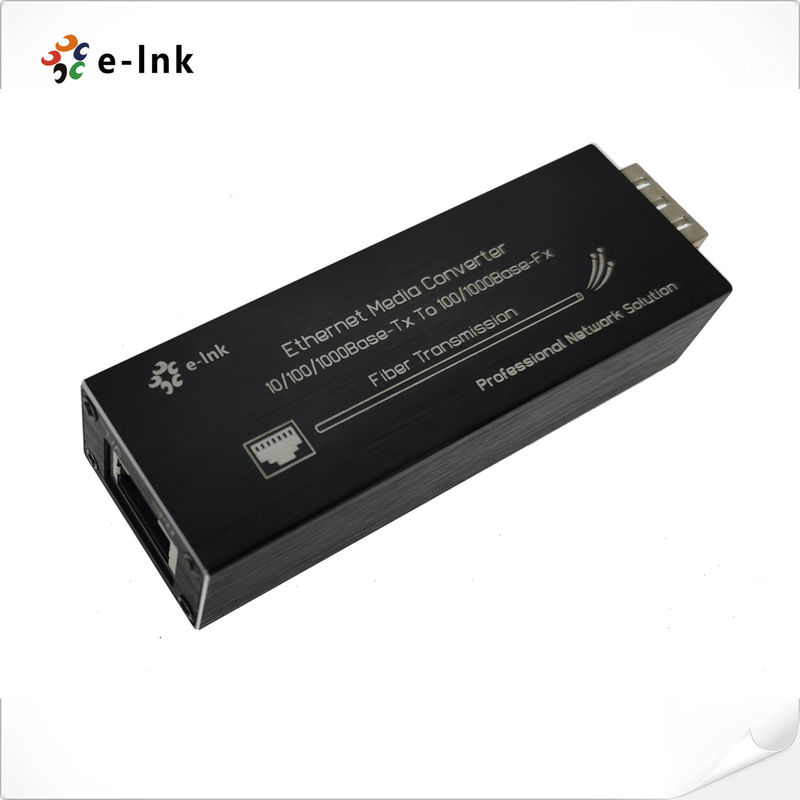

USB-powered for Gigabit Micro Mini SFP Media Converter

USB-powered for Gigabit Micro Mini SFP Media Converter
USB-powered for Gigabit Micro Mini SFP Media Converter
video play

Large Image :  USB-powered for Gigabit Micro Mini SFP Media Converter

Product Details:
Place of Origin: CN
Brand Name: E-link
Certification: CE
Model Number: LNK-M3011-SFP
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: USD10/PCS
Packaging Details: color box
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 1000000PCS/Month
Detailed Product Description
Product Name: USB-powered For Gigabit Micro Mini SFP Media Converter Fiber Port: SFP - 100/1000M Adaptive
Wavelength: 850nm/1310nm/1550nm (Based On SFP Module Used) Transmission Distance: Depends On SFP Module
RJ45 Port: 1 Optical Port: SFP
Power Supply: DC 5~15V Power Consumption: 3W
Operating Temperature: 0~45C Dimensions (W X D X H): 78 X 27 X 18 Mm

Micro Mini 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter





LNK-M3011-SFP 10/100/1000Mbps adaptive Gigabit Ethernet media converter adopts switching technology to fulfill media conversion. It complies with IEEE802.3, IEEE802.3u, IEEE802.3z and IEEE802.3ab standards. Presently it supports two types of media network connections: 10Base-T/100Base-TX/1000Base-T, and 100/1000Base-X, inter-converting electrical signals of 10Base-T/100Base-TX/1000Base-T twisted pairs with optical signals of 100/1000Base-SX/LX. It extends the transmission distance of network from 100m via copper cable to 120km Max via fiber optical cables. It supports transmission in multi-mode dual fiber, single mode dual fiber and single mode single fiber.

When plugged into a computer’s USB port, the media converter shuts down automatically when you turn off the computer, which saves energy. Micro Mini Media Converters are excellent solutions for fiber-to-the-laptop applications where you need Gigabit fiber connectivity but local power isn’t available.



  • Smallest media converters available; tuck the unobtrusively behind a PC
  • 10/100 /1000Base-T to 100/1000Base-X SFP
  • SFP port support 100Base-FX or 1000Base-X dual mode (auto detection)
  • USB-powered for portability, or use 5~15VDC wide range power input
  • Ultra compact and weigh less than 2 ounces
  • Support 9k jumbo frame
  • Options in single mode dual fiber, multi-mode dual fiber, and single mode in single fiber
  • Aluminum Case: Conducive to heat dissipation; Lower weight and lower freight cost
  • Including a Power Supply

USB-powered for Gigabit Micro Mini SFP Media Converter 0


Technical Indexes

Parameter Specifications
Access mode 10/100/1000Mbps Gigabit Ethernet
Standard IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet
Fiber Port SFP - 100/1000M adaptive
Wavelength 850nm/1310nm/1550nm (Based on SFP Module used)
Transmission distance

Fiber Cable: Depends on SFP Module

Category-5 twisted pairs: 100m


One RJ45 port: for connecting with STP/UTP cat5/6 twisted pairs

One Optical port: SFP

Conversion means Media conversion
LFP Not Support
BER <10-9
MTBF 100,000 hours
LED indicator

PWR (Power supply)

TX (LINK100/1000, TP cable rate 100/1000M)

FX/ACT (Optical link action /TP cable packet forwarding action)

Power supply DC 5~15V (Type-C)
Power consumption <3W
Operating temperature 0~45ºC
Operating humidity 5%~90%
Maintaining temperature -40~70ºC
Maintaining humidity 5% ~ 90% non-condensing
Weight 46g
Dimensions (W x D x H) 78 x 27 x 18 mm
