1080P Full HD FC SDI To Fiber Optic Converter 6 Channel Reverse RS-485 Data Format

1080P Full HD FC SDI To Fiber Optic Converter 6 Channel Reverse RS-485 Data Format
1080P Full HD FC SDI To Fiber Optic Converter 6 Channel Reverse RS-485 Data Format 1080P Full HD FC SDI To Fiber Optic Converter 6 Channel Reverse RS-485 Data Format

Large Image :  1080P Full HD FC SDI To Fiber Optic Converter 6 Channel Reverse RS-485 Data Format

Product Details:
Place of Origin: Shenzhen, China
Brand Name: E-link China
Certification: CE, RoHS, FCC, ISO9001
Model Number: LNK-SDI-6V
Payment & Shipping Terms:
Minimum Order Quantity: 1 pair
Packaging Details: 1 pair in 1 carton; Support OEM Service
Delivery Time: 3-5 Working days
Payment Terms: T/T, Western Union, MoneyGram, L/C, Paypal
Supply Ability: 10000000Pairs/Month
Detailed Product Description
Reflection Loss: >15DB SDI Input: 6 Channel
Fiber Type: Single Mode Optical Connector: FC/UPC
Equilibrium: 0-150m @1.485Gb/s Data Rate: DC To 100 Kb/s
Data Format: Reverse RS-485 Pressure: 1A@12VDC
Operating Temperature: -40℃~+85℃ Warranty: 2 Years
High Light:

hd sdi to fiber optic converter

,

hd sdi fiber optic transmitter and receiver

1080P Full HD FC Optical Connector 6 Channel SDI to Fiber Optic Converter



Technical Indexes

Serial TV, BNC Input SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI, DVB-SSI and Telecom/Datacom
270Mbit/s - 1.48Gbit/s
Input number: 6
Reflection loss: >15DB
Equilibrium: 0-150m @1.485Gb/s
Connector: FC/PC(SC/PC optional)
Optics Channel: 1
Type: single-mode (multimode optional)
Wavelength: 1310nm /1550nm
Transmission distance (550m-120Km
Reflection loss: > 15dB
Dithering: < 0.2UI
Connector: FC/PC (SC/PC optional)
Serial TV, BNC output (EO/OE) Output number:6
Signal level: 800mV nominal
Rise/fall time: 200ps indication
Overshoot: < 10% amplitude
Reflection loss: >15dB
Dithering: < 0.2UI
Connector: 75Ω BNC
Data Channel: 1
Data format: Reverse RS-485 (full/half duplex) and support NRZ, RZI and Manchester
Data rate: DC to 100 Kb/s
Mode: Full/half duplex
Connector: wire connecting terminal
Power and environmental indication Operating temperature: -40℃~+85℃
Pressure: 1A@12VDC
Power: 12 W
EMI/RFI: meet FCC Part 15 Class A, EU EMC standard
Average time trouble-free: >100000 hours
SDI video format supports 625/25PAL;525/29.97NTSC;525/23.98NTSC; 720p50; 720p59.94; 1080P23.98/24/30/50/60; 1080i 23/24/30/50/59.94;








Overview

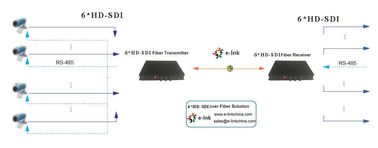

LNK-SDI-6V Series supports 6-channel HD-SDI standard high-definition video signal transmitted via single fiber optical cable. E-link HD-SDI Video over Fiber Converters includes one transmitter and one receiver for 1080P HD-SDI signal. E-link HD-SDI Fiber Converters can simultaneously transmit 6-Ch HD-SDI Video, 1-Ch Reverse RS-485 data, signal through a single optical fiber. The video quality up to broadcast standard, audio quality up to CD level, supports Reverse RS-485 data communication format.





Features

  • 6 channel HD-SDI video transmission over optic fiber
  • Automatic cable equalization to ensure signal integrity
  • Automatic reclocking 270Mbit/s - 1.48Gbit/s
  • Directly compatible with HD-SDI camera systems and support Reverse RS-485 data protocols
  • Long transmission capability at least 10 km (6.2miles) , up to 80 km
  • Terminal block power input for industrial application
  • Supports hot swapping and hot plugging
  • Full digital non-compression broadcast level transmission;
  • super optic dynamic range and free of adjustment prior to use;
  • surface coating technique;
  • fiber optic WDM/CWDM/DWDM technique;
  • 1000M optical fiber transmission, easy for update;
  • industry level ultra-broad temperature range (-40℃~+85℃), adaptable to various environments;





Application

  • Intelligent HP monitoring & HD multiple-media system
  • Community safety & security HD multi-media system and campus network
  • Industrial monitoring (power, chemical industry, steel, oil and railway etc.)
  • Military monitoring (warehouse, border of defense and security guarding etc.)
  • HD multi-media system for transmission of TV programs
  • Stadium (HD audio & video synchronized transmission for live telecast),

1080P Full HD FC SDI To Fiber Optic Converter 6 Channel Reverse RS-485 Data Format 01080P Full HD FC SDI To Fiber Optic Converter 6 Channel Reverse RS-485 Data Format 1
