E-link Mini HD-SDI Fiber Converter with Tally & RS485 Loop Out
Overview
The LNK-MHD-1V Series Mini-type HD-SDI to Fiber Converter by E-link is a compact and
industrial-grade solution designed for transmitting uncompressed HD-SDI video (with
embedded audio), Tally signals, and reverse RS485 data over a single optical fiber.
Supporting video resolutions up to 1080i and a data rate of up to 1.485Gbps, this converter
features automatic cable equalization, loop-out monitoring, and robust performance across
extended distances—up to 20km on single-mode fiber. Engineered for demanding
environments, it offers wide temperature tolerance (-20℃ to +70℃), LED status indicators,
hot-swappable installation, and compatibility with SDI camera systems. Ideal for broadcast,
live events, and studio applications requiring reliable, real-time video transmission over fiber.
Features
Mini HD-SDI to fiber converter with Tally & RS485
Supports 720p, 1080i, PAL/NTSC formats
Loop-out for local SDI monitoring
Transmission up to 20km over LC fiber
Stable signal with auto equalization & reclocking
Wide temp range: -20°C to +70°C
Plug & play, compact aluminum housing
Technical Indexes
|
Fiber Optical interface
|
|
Fiber interface
|
Simplex LC
|
|
Transmission distance
|
550m-20Km
|
|
Wavelength
|
1310nm/1550nm
|
|
Video
|
|
Video interface
|
BNC
|
|
Video input/output impedance
|
75Ω
|
|
Video input/output voltage
|
Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp
|
|
Video Bits Rate
|
Max 1.48Gb/s
|
|
Differential gain (10%～90% APL)
|
<1%
|
|
SDI format support
|
625/25 PAL
|
|
525/29.97 NTSC, 525/23.98 NTSC
|
|
720p50, 720p59.94
|
|
1080i 23/24/30/50/59.94
|
|
Video SDI standard
|
270Mbps (SD-SDI)
|
|
1.485Gbps (HD-SDI)
|
|
Data
|
|
Physical interface
|
Industrial standard screw terminal
|
|
Data type
|
Tally & Reverse RS485
|
|
Frequency/Rate support
|
Max. 115200bps for RS422
Max. 57600bps for RS485
|
|
BER
|
<10ˉ9
|
|
Electrical
|
|
Power adaptor
|
DC 5V
|
|
Power consumption
|
<5W
|
|
LED Indicator
|
|
SDI
|
SDI video
|
|
P/T
|
Power Supply
|
|
Mechanical
|
|
Dimensions (LxWxH)
|
73 x 44 x 17 mm (TX)
73 x 44 x 17 mm (RX)
185 x 132 x 100 mm (Package)
|
|
Weight
|
75g (TX)
75g (RX)
450g (Package)
|
|
Casing
|
Aluminum Case
|
|
Mounting Options
|
Desktop
|
|
Environmental
|
|
Working Temperature
|
-20℃～+70℃
|
|
Storage Temperature
|
-40℃～+80℃
|
|
Working Humidity
|
0~95%
|
|
MTBF
|
≥100000 hours
|
Ordering Information
|
Model
|
Description
|
|
LNK-MHD-1V-MM
|
Mini-type HD-SDI to Fiber Converter with Tally & Reverse RS485 and loop out, MMF, LC Fiber Connector 500 meters, including Transmitter and Receiver, used by pairs
|
|
LNK-MHD-1V-20
|
Mini-type HD-SDI to Fiber Converter with Tally & Reverse RS485 and loop out, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs
|
|
LNK-MHD-1V-40
|
Mini-type HD-SDI to Fiber Converter with Tally & Reverse RS485 and loop out, SMF, LC Fiber Connector 40KM, including Transmitter and Receiver, used by pairs
|

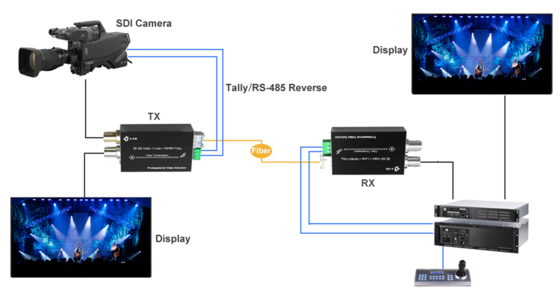

Application

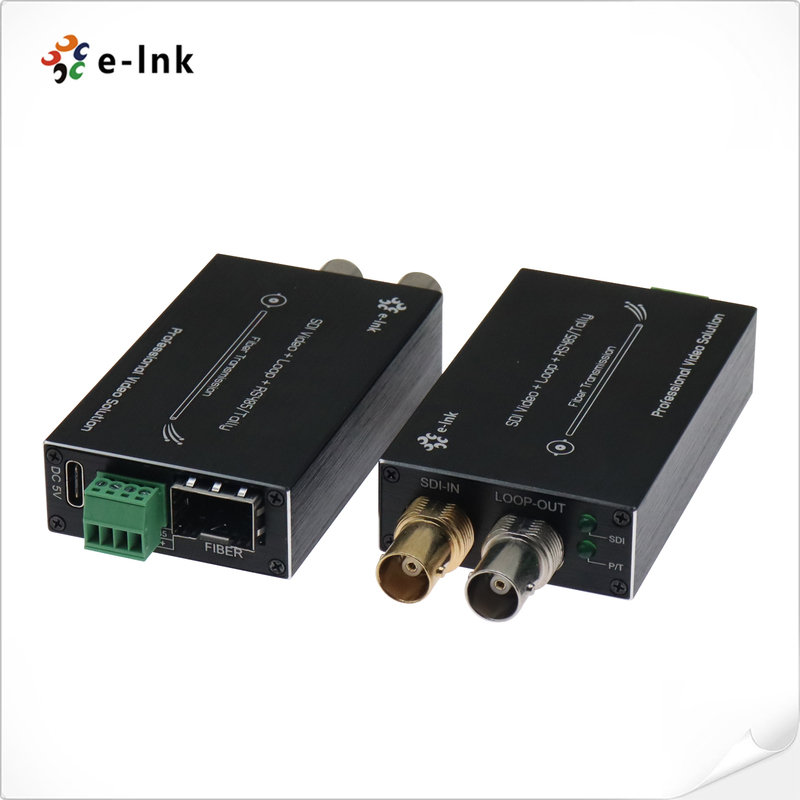

Interface & LED
