Broadcast Fiber System 3GHD-SDI 10/100Base-T RS422 Genlock Remote Control

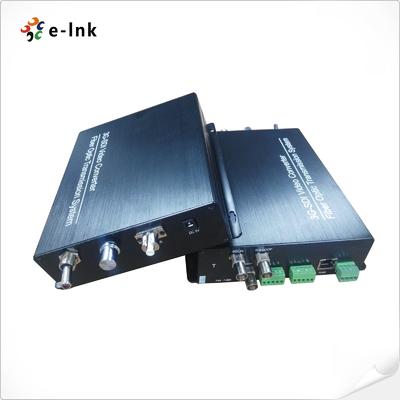

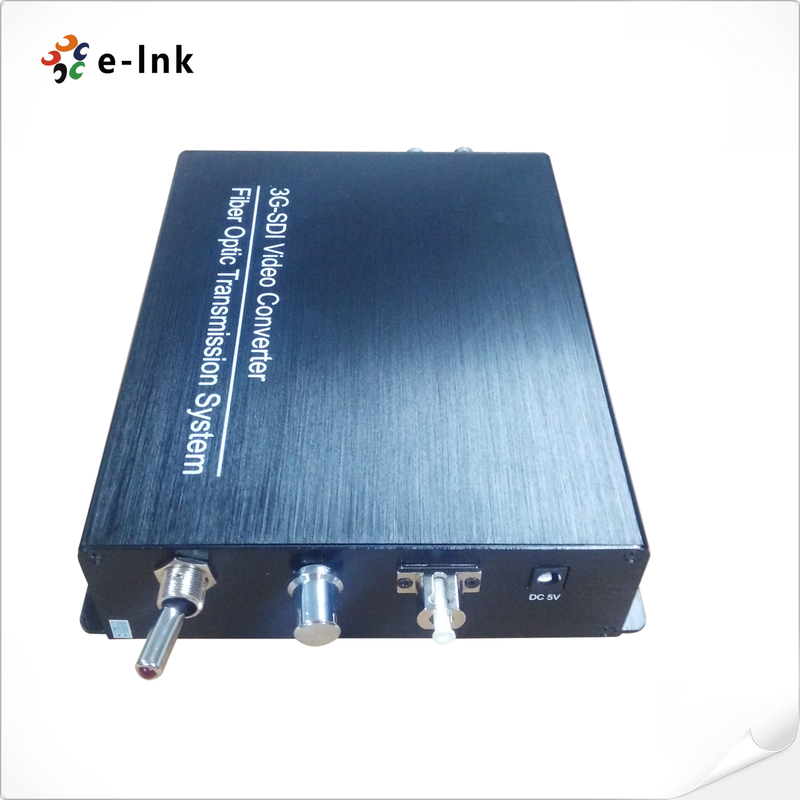

Large Image : Broadcast Fiber System 3GHD-SDI 10/100Base-T RS422 Genlock Remote Control

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE, RoHS, FCC
Model Number:	LNK-MSDI
Document:	E-link LNK-MSDI Series Mult....0.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	USD $679-699
Packaging Details:	3G-SDI Fiber Converter Standard Export Package
Delivery Time:	3-10working days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal,Credit Card
Supply Ability:	2000pcs/month

Contact Now

Detailed Product Description

Data:	RS422 /RS232/RS485	Wavelength:	1310nm / 1550nm / CWDM
Power Consumption:	15W	Dimensions (LxWxH):	172mm167mm45mm
Net Weight:	4kg	Input Power:	DC5V 3A
Transmission Distance:	SM Fiber 10+km , MM Fiber 300m	Port:	10/100 Base-T, RJ-45 Connector

3G/HD/SD-SDI, RS422, Audio, Ethernet, Tally, Intercom & Return Video over Fiber Multiplexer

3G/HD/SD-SDI Fiber Optic Converter Overview

The LNK-MSDI Series is a professional fibre optic transmission system that delivers 3G/HD/SD-SDI video compliant with SMPTE 424M-2006, 292 and 259 standards, as well as 10/100Base-T Ethernet, RS422, audio, tally, intercom and return video, all over single- or multi-mode fibre. This advanced system enables the simultaneous transmission of all data channels, providing a comprehensive solution for broadcast and production environments. It transports 3G/HD-SDI signals from the camera to the base station while supporting return video (3G/HD-SDI), remote control data, genlock, intercom, tally, audio and Ethernet over a single SM/MM tactical or SMPTE hybrid fibre cable. Designed for reliability and robust performance, the LNK-MSDI Series provides seamless, high-quality connectivity for studio productions, remote broadcasts and multi-camera setups.

3G/HD/SD-SDI Fiber Optic Converter Features

Supports SMPTE 3G, HD, and SD-SDI data rates
Fully handles all pathological test patterns for reliable broadcast performance
Automatic cable equalization to maintain optimal signal integrity
Integrated Remote control, Tally, Audio (Intercom), and Return Video functions
10/100 Ethernet connectivity for versatile network integration
Automatic re-locking at 270 Mbit/s, 1.48 Gbit/s, and 3 Gbit/s
Compatible with SMPTE 424M, SMPTE 292M, SMPTE 259M standards and DVB-ASI formats
Direct compatibility with 3G/HD/SD-SDI camera systems and support for RS-232, RS-422, RS-485 data protocols
Transmission distance: up to 10+ km on single-mode fiber or 300 m on multi-mode fiber
Terminal block power input , supports hot swapping and hot plugging
Industrial-grade design with -10 °C to 75 °C operating temperature range for harsh environments

3G/HD/SD-SDI Fiber Optic Converter Technical Indexes

General Specifications
Work Temp	-10°C to +75°C
Storage Temp	-40°C to 85°C
humidity	0 ~ 95% (non-condensing)
Input power	DC5V 3A
Power consumption	15W
Net weight	4kg
Appearance size	172mm167mm45mm (LxWxH)
Optical Fiber
Wavelength	1310nm / 1550nm / CWDM
Output Power	-6~-1dBm
Rx sensitivity	<-18dBm
Transmission Distance	SM fiber 10+km , MM fiber 300m
Optical connector	Dal LC /FC/ST/SC/MX/ Lemo / Neutrino (optional)
SDI input/output
Signal format	SMPTE 424M, SMPTE 292M, SMPTE 259M
Data rate	270Mbit/s - 1.48Gbit/s - 3Gbit/s
Cable Equalization	Automatic cable EQ (Bel den 1694A cable)
Cable Equalization	250m @ 270Mbit/s, 140m @ 1.5Gbit/s, 80m @ 3Gbit/s
SDI interface	BNC 75 Ohm
Intercom
Camera Optic Adaptor
Interface	4pin XLR(Male) /5pin XLR(Female)/ 3.5mm headset jack
Microphone	Mic inputs with mute and pre-empt
Headphone	with volume up or down
Audio	Balance or unbalance line level
Tally
Camera Optic Adaptor
Interface	4pin air head or 3pin mini XLR
Output	Dry Contact Closure or wet +12V
	On: short or +12V
	Off: open or 0V
Remote Control
Interface	Terminal Block of Industrial Standard
Data	RS422 /RS232/RS485
Ethernet
Port	10/100 Base-T, RJ-45 connector
Work mode	Full duplex/half duplex
Data Rate	10 M bps & 100 M bps Ethernet (Auto Adaptive)

3G/HD/SD-SDI Fiber Optic Converter Application
