12~48V DC Power Input Industrial 10G 60W PoE Injector
Industrial 10G 60W PoE Injector Overview

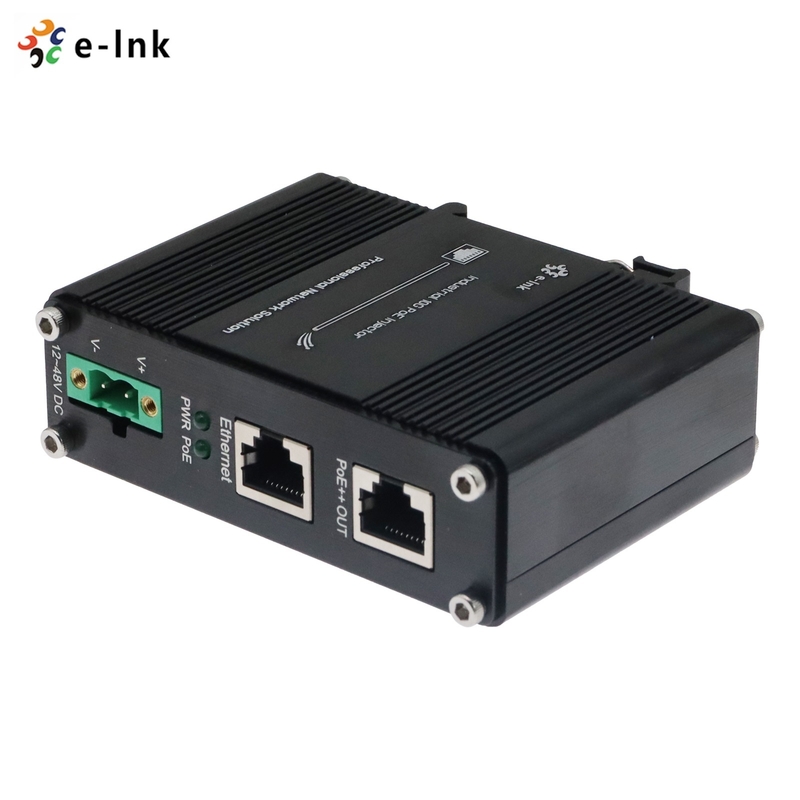

The LNK-INJ601-60 is a hardened 10G high-power PoE injector designed to deliver 60W of power for
demanding network applications in rugged environments. This industrial-grade injector enables the
seamless integration of IEEE 802.3af/at PoE devices, including high-resolution cameras and high-performance
wireless access points, with standard, non-PoE network switches. It supports transmission distances of
up to 30 meters. The data input and PoE output ports support network speeds from 10 Mbps to 10 Gbps
(10 G Base-T) and comply with IEEE 802.3ab standards. The PoE output meets IEEE 802.3at (PoE+)
specifications for enhanced power delivery. Engineered for mission-critical applications, the LNK-INJ601-60
features a wide 12–48 VDC input voltage range to ensure reliable operation in industrial and outdoor
settings where power fluctuations and extreme conditions are common.
Industrial 10G 60W PoE Injector Features
- High-Speed 10G PoE+: Delivers both data (10Mbps to 10Gbps) and power (IEEE 802.3at, 30W) over a single Ethernet cable.
- Wide Voltage Input: Flexible 12-48V DC power compatibility for various industrial settings.
- Rugged & Durable: Hardened aluminum case built for extreme temperatures (-40°C to 80°C).
- Easy Installation: Compact design (95x70x30mm) supports both DIN-rail and wall mounting.
- Clear Diagnostics: Comprehensive LED status indicators for easy monitoring and troubleshooting.
Industrial 10G 60W PoE Injector Technical Indexes
|
Ethernet
|
|
Standards:
|
IEEE802.3af Power over Ethernet
|
|
IEEE802.3at Power over Ethernet
|
|
Processing Type:
|
Forward
|
|
Half-duplex, Full-duplex
|
|
Forward Filter Rate:
|
14,880,000pps (10Gbps)
|
|
Cabling:
|
10/100/1000/2.5G/5G/10G Base-T: Cat7 or above
|
|
Maximum Distance:
|
Cat7 UTP up to 30m
|
|
Connector:
|
2x RJ45
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 80°C (-40°F to 176°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF:
|
>200,000hrs
|
|
Electrical and Mechanical
|
|
Input Power:
|
12~48VDC (Terminal Block)
|
|
Power Consumption:
|
65W Max.
|
|
PoE (Power over Ethernet)
|
|
Standard:
|
IEEE802.3af/at
|
|
Port:
|
RJ45
|
|
Power Pin Assignment
|
4/5(+), 7/8(-)
|
|
Max. Power per Port:
|
60W Max per port (Alternative B Mode)
|
|
LED Indicators:
|
|
Power:
|
Power Status
|
|
PoE:
|
PoE Status
|
|
Dimensions (WxDxH):
|
95 x 70 x 30 mm
|
|
Weight:
|
0.25Kg
|
|
Casing:
|
Aluminum Case
|
|
Mounting Options:
|
DIN-Rail / Wall-mount
|
|
Regulatory Approvals
|
|
ISO9001
|
|
FCC part 15, Class A
|
|
EN55022:2006+A1: 2007 Class A
|
|
Surge Protection:
|
|
RJ45: 1KV
|
|
Power: 500V
|
|
ESD: 4KV/8KV
|
Industrial 10G 60W PoE Injector Ordering Information
|
Model
|
Description
|
|
LNK-INJ601-60
|
12~48VDC Power Input Industrial 10G 60W PoE Injector
|
|
Mounting Options
|
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
|
|
Power Options
|
► Power Supply is to be purchased separately
|
