Industrial 5G 95W 802.3bt PoE++ Injector (12~48VDC)
Industrial 5G 95W PoE++ Injector Overview

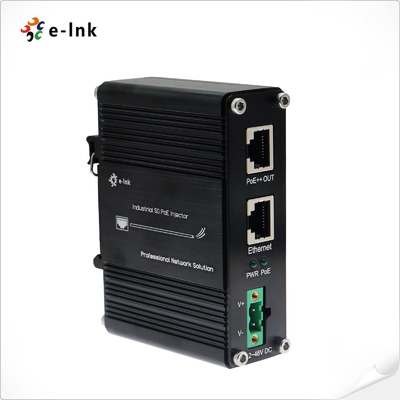

The LNK-INJ501-90 is an industrial-grade, 95W PoE injector engineered to deliver ultra-high power
to demanding devices. It supports the latest IEEE 802.3bt (Type 4) and LTPoE++ standards and provides
a substantial 95W output. This allows it to power high-performance equipment such as PTZ cameras
and wireless access points. The LNK-INJ501-90 seamlessly bridges non-PoE network switches to any
PoE device over a 30-meter distance. The data input and PoE output ports robustly support
multi-gigabit speeds ranging from 10 Mbps to 5 Gbps (5 G Base-T), complying with IEEE 802.3ab.
Designed for harsh environments, the LNK-INJ501-90 features a wide 12–48 V DC input range
with an integrated voltage booster to ensure stable and reliable power delivery in industrial and outdoor applications.
Industrial 5G 95W PoE++ Injector Features
- 1x RJ45 Ethernet data input + 1x RJ45 PoE output (Data + Power)
- Supports up to 95W LTPoE++ Power Sourcing Equipment (PSE)
- Compliant with IEEE 802.3at/bt PoE end-span and mid-span standards
- Compatible with 10/100/1000/2.5G/5G Base-TX network speeds
- Comprehensive LED indicators for real-time PoE status and diagnostics
- Wide 12~48V DC power input with built-in power booster function
- PoE budget:
- 95W at 48VDC
- 95W at 24VDC
- 60W at 12VDC
- Flexible mounting options: DIN-rail or wall-mount installation
- Rugged industrial design with operating temperature range -40°C to 80°C (-40°F to 176°F)
Industrial 5G 95W PoE++ Injector Technical Indexes
|
Ethernet
|
|
Standards:
|
10/100/1000/2.5G/5G BASE-T Ethernet
|
|
Processing Type:
|
Forward
|
|
Half-duplex, Full-duplex
|
|
Forward Filter Rate:
|
7,440,000pps (5Gbps)
|
|
Cabling:
|
10/100/1000/2.5G/5G BASE-T: CAT7 or above
|
|
Maximum Distance:
|
CAT7 UTP up to 30m
|
|
Connector:
|
2x RJ45
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 80°C (-40°F to 176°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF:
|
>200,000hrs
|
|
Electrical and Mechanical
|
|
Input Power:
|
12~48VDC (Terminal Block)
|
|
Power Consumption:
|
100W Max.
|
|
Power over Ethernet:
|
|
Standard:
|
IEEE 802.3bt 4-pair Power over Ethernet
|
|
IEEE 802.3at Power over Ethernet Plus
|
|
IEEE 802.3af Power over Ethernet
|
|
Port:
|
RJ45
|
|
Power Pin Assignment
|
Data provide over pairs 1,2TX and 3,6RX
Power over spare pairs 1,2,4,5(+) and 3,6,7,8(-)
|
|
PoE Budget:
|
Up to 95-watt PoE budget (48VDC)
Up to 95-watt PoE budget (24VDC)
Up to 60-watt PoE budget (12VDC)
|
|
LED Indicators:
|
|
Power:
|
Power Status
|
|
PoE:
|
PoE Status
|
|
Dimensions (WxDxH):
|
95 x 70 x 30 mm
|
|
Weight:
|
0.25Kg
|
|
Casing:
|
IP40 Aluminum Case
|
|
Mounting Options:
|
DIN-Rail / Wall-mount
|
|
Standard Accessories
|
|
Package Contents
|
LNK-INJ501-90
|
|
User's manual
|
|
Wall-mount kit
|
|
DIN-mount kit
|
|
Regulatory Approvals
|
|
ISO9001
|
|
FCC part 15, Class A
|
|
EN55022:2006+A1: 2007 Class A
|
|
Surge Protection:
|
|
RJ45: 1KV
|
|
Power: 500V
|
|
ESD: 4KV/8KV
|
Industrial 5G 95W PoE++ Injector Ordering Information
|
Model
|
Description
|
|
LNK-INJ501-90
|
5G Hardened 1-port Ethernet Input + 1-port 95W PoE++ Output Injector
with 12~48V DC wide range power input
|
|
Mounting Options
|
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
|
|
Power Options
|
► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block
|
|
► Power Supply is to be purchased separately.
|
