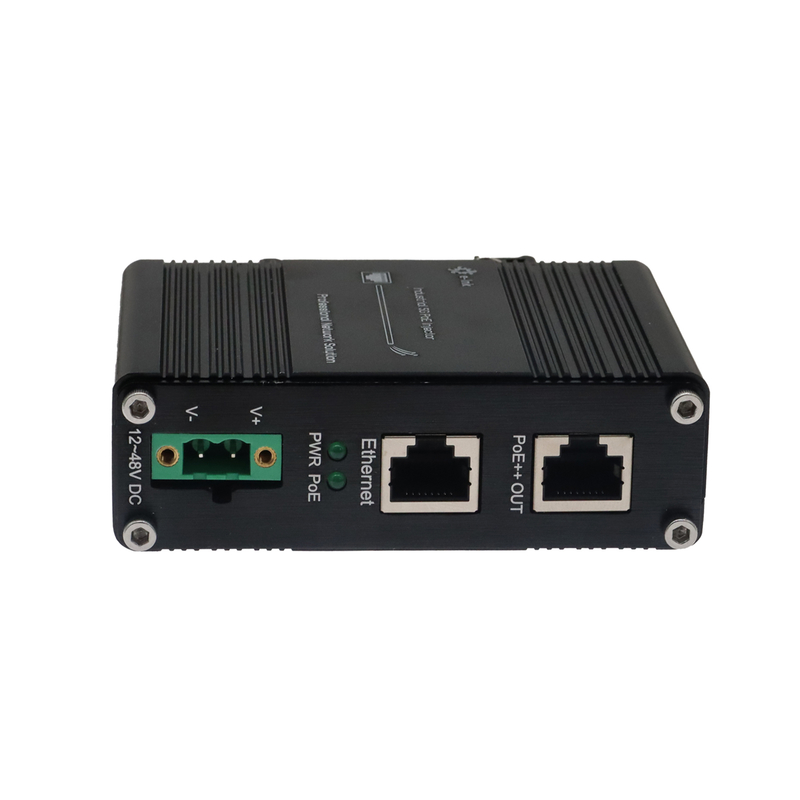

12~48V DC Power Input Industrial 5G 60W PoE Injector
Industrial 5G 60W PoE Injector Overview
The LNK-INJ501-60 is a hardened, high-power 5G PoE injector that delivers up to 60W. It is designed
for robust outdoor and industrial applications. It connects IEEE 802.3af/at PoE devices, such as
PTZ cameras and wireless access points, to standard non-PoE network switches and can reach
distances of up to 30 meters. Its data input (to switch) and PoE output (to device) ports both support
multi-gigabit speeds of 10/100/1000/2.5G/5G Base-T, and the device is fully compliant with
IEEE 802.3ab and IEEE 802.3at standards. Engineered for high availability, the LNK-INJ501-60
features a wide 12–48 VDC input voltage range to ensure reliable operation in environments with power fluctuations.
Industrial 5G 60W PoE Injector Features
-
Wide 12~48V DC power input for flexible deployment
-
1x RJ45 Ethernet data input + 1x RJ45 PoE output (Data + Power)
-
Compliant with IEEE 802.3at PoE+ Power Sourcing Equipment (PSE)
-
Supports 10/100/1000/2.5G/5G Base-TX network speeds
-
LED indicators for real-time PoE status and diagnostics
-
Industrial-grade design, operating temperature: -40°C to 80°C (-40°F to 176°F)
-
Compact form factor: 95 × 70 × 30 mm
-
Durable aluminum alloy housing for enhanced heat dissipation and EMI protection
-
Flexible installation with DIN-rail or wall mounting
Industrial 5G 60W PoE Injector Technical Indexes
|
Ethernet
|
|
Standards:
|
IEEE802.3af Power over Ethernet
|
|
IEEE802.3at Power over Ethernet
|
|
Processing Type:
|
Forward
|
|
Half-duplex, Full-duplex
|
|
Forward Filter Rate:
|
7,440,000pps (5Gbps)
|
|
Cabling:
|
10/100/1000/2.5G/5G Base-T: Cat7 or above
|
|
Maximum Distance:
|
Cat7 UTP up to 30m
|
|
Connector:
|
2x RJ45
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 80°C (-40°F to 176°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF:
|
>200,000hrs
|
|
Electrical and Mechanical
|
|
Input Power:
|
12~48VDC (Terminal Block)
|
|
Power Consumption:
|
65W Max.
|
|
PoE (Power over Ethernet)
|
|
Standard:
|
IEEE802.3af/at
|
|
Port:
|
RJ45
|
|
Power Pin Assignment
|
4/5(+), 7/8(-)
|
|
Max. Power per Port:
|
60W Max per port (Alternative B Mode)
|
|
LED Indicators:
|
|
Power:
|
Power Status
|
|
PoE:
|
PoE Status
|
|
Dimensions (WxDxH):
|
95 x 70 x 30 mm
|
|
Weight:
|
0.25Kg
|
|
Casing:
|
Aluminum Case
|
|
Mounting Options:
|
DIN-Rail / Wall-mount
|
|
Regulatory Approvals
|
|
ISO9001
|
|
FCC part 15, Class A
|
|
EN55022:2006+A1: 2007 Class A
|
|
Surge Protection:
|
|
RJ45: 1KV
|
|
Power: 500V
|
|
ESD: 4KV/8KV
|
Industrial 5G 60W PoE Injector Ordering Information
|
Model
|
Description
|
|
LNK-INJ501-60
|
12~48VDC Power Input Industrial 5G 60W PoE Injector
|
|
Mounting Options
|
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
|
|
Power Options
|
► Power Supply is to be purchased separately
|
