12~48V DC Power Input Industrial 5G PoE+ Injector
Industrial 5G PoE+ Injector Overview

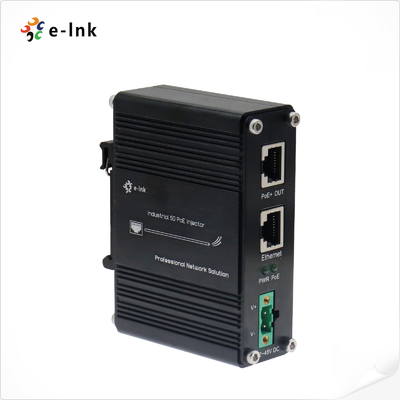

The LNK-INJ501-30 is a ruggedized 5G PoE injector that delivers high-speed connectivity and reliable
power over extended distances. It enables the seamless integration of IEEE 802.3af/at PoE devices,
such as cameras and access points, with non-PoE LAN switches and supports distances of up to 30 meters.
With both Ethernet (to switch) and PoE Out (to device) ports that comply with the IEEE 802.3ab
and IEEE 802.3at standards, this injector guarantees compatibility with 10/100/1000/2.5G/5G Base-T
networks. Built for high-availability applications, the LNK-INJ501-30 offers a wide voltage input
range (12–48 VDC) for robust and flexible power management in demanding environments.
Industrial 5G PoE+ Injector Features
- Wide-range 12~48V DC power input for flexible deployment
- 1x RJ45 Ethernet Data Input + 1x RJ45 PoE Output (Data + Power)
- Compliant with IEEE 802.3at PoE+ Power Sourcing Equipment (PSE)
- Supports 10/100/1000/2.5G/5G Base-TX network speeds
- Comprehensive LED indicators for real-time PoE status and diagnostics
- Industrial-grade design with operating temperature from -40°C to 80°C (-40°F to 176°F)
- Compact size: 95 × 70 × 30 mm, ideal for space-limited environments
- Durable aluminum alloy housing for superior heat dissipation and anti-interference performance
- Flexible installation options with DIN-rail and wall-mounting support
Industrial 5G PoE+ Injector Technical Indexes
|
Ethernet
|
|
Standards:
|
IEEE802.3af Power over Ethernet
|
|
IEEE802.3at Power over Ethernet
|
|
Processing Type:
|
Forward
|
|
Half-duplex, Full-duplex
|
|
Forward Filter Rate:
|
7,440,000pps (5Gbps)
|
|
Cabling:
|
10/100/1000/2.5G/5G Base-T: Cat7 or above
|
|
Maximum Distance:
|
Cat7 UTP up to 30m
|
|
Connector:
|
2x RJ45
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 80°C (-40°F to 176°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF:
|
>200,000hrs
|
|
Electrical and Mechanical
|
|
Input Power:
|
12~48VDC (Terminal Block)
|
|
Power Consumption:
|
36W Max.
|
|
PoE (Power over Ethernet)
|
|
Standard:
|
IEEE802.3af/at
|
|
Port:
|
RJ45
|
|
Power Pin Assignment
|
4/5(+), 7/8(-)
|
|
Max. Power per Port:
|
30W Max per port (Alternative B Mode)
|
|
LED Indicators:
|
|
Power:
|
Power Status
|
|
PoE:
|
PoE Status
|
|
Dimensions (WxDxH):
|
95 x 70 x 30 mm
|
|
Weight:
|
0.25Kg
|
|
Casing:
|
Aluminum Case
|
|
Mounting Options:
|
DIN-Rail / Wall-mount
|
|
Regulatory Approvals
|
|
ISO9001
|
|
FCC part 15, Class A
|
|
EN55022:2006+A1: 2007 Class A
|
|
Surge Protection:
|
|
RJ45: 1KV
|
|
Power: 500V
|
|
ESD: 4KV/8KV
|
Industrial 5G PoE+ Injector Ordering Information
|
Model
|
Description
|
|
LNK-INJ501-30
|
12~48VDC Power Input Industrial 5G PoE+ Injector
|
|
Mounting Options
|
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
|
|
Power Options
|
► Power Supply is to be purchased separately
|
After-Sales and Warranty Policy
It is composed of online customer service and telephone customer service, providing
product consultation, remote technical support, maintenance and acceptance services.
Service Policy: Three-month replacement and three-year warranty.
Replacement: Within three months of purchasing a series of products, after testing the product failure
by technicians and man-made damage caused by non-natural disasters, the purchaser can directly
go to the purchasing point to replace the same type of products.Or a product of comparable performance.
If there is no trouble in product testing, the original sample will be returned.
Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.
[The following circumstances do not fall within the scope of replacement and free maintenance]
1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
