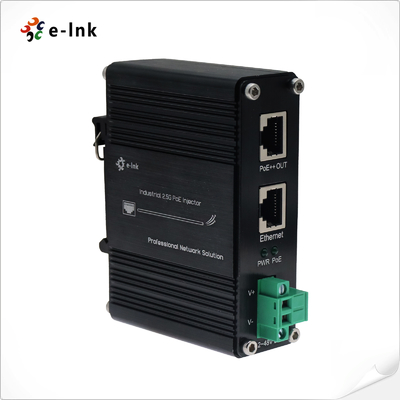

12~48V DC Power Input Industrial 2.5G 60W PoE Injector
Industrial 2.5G 60W PoE Injector Overview
The LNK-INJ401-60 is a hardened 2.5G high-power PoE injector that delivers a robust 60W power
output to IEEE 802.3af/at-compliant devices, such as IP cameras and wireless access points.
The LNK-INJ401-60 enables seamless connectivity between non-PoE network switches and PoE devices
over distances of up to 100 meters. It supports data rates of 10/100/1000/2500 Mbps on both
the Ethernet input port and the PoE output port. Its industrial-grade construction and wide 12–48 VDC
voltage input range provide reliable power delivery for high-availability applications in demanding environments.
Industrial 2.5G 60W PoE Injector Features
- Wide Power Input: Supports 12~48V DC for flexible power options.
- Dual RJ45 Ports: 1 Ethernet Data Input and 1 PoE Output Port (Data + Power).
- PoE+ Support: Compliant with IEEE802.3at for reliable Power over Ethernet (PoE+) sourcing.
- High-Speed Connectivity: Supports 10/100/1000/2.5G Base-TX networks.
- LED Status Indicators: Clear and comprehensive PoE and network diagnostics.
- Industrial-Grade Design: Operating temperature range -40°C to 80°C (-40°F to 176°F).
- Compact Size: Space-saving design, 95 × 70 × 30 mm.
- Rugged Housing: Aluminum alloy enclosure for durability and superior heat dissipation.
- Flexible Mounting: Supports DIN-rail and wall-mount installations.
Industrial 2.5G 60W PoE Injector Technical Indexes
|
Ethernet
|
|
Standards:
|
IEEE802.3af Power over Ethernet
|
|
IEEE802.3at Power over Ethernet
|
|
Processing Type:
|
Forward
|
|
Half-duplex, Full-duplex
|
|
Forward Filter Rate:
|
3,720,000pps (2.5Gbps)
|
|
Cabling:
|
10/100/1000/2.5G Base-T: Cat6A or above
|
|
Maximum Distance:
|
Cat6A UTP up to 100m
|
|
Connector:
|
2x RJ45
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 80°C (-40°F to 176°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF:
|
>200,000hrs
|
|
Electrical and Mechanical
|
|
Input Power:
|
12~48VDC (Terminal Block)
|
|
Power Consumption:
|
65W Max.
|
|
PoE (Power over Ethernet)
|
|
Standard:
|
IEEE802.3af/at
|
|
Port:
|
RJ45
|
|
Power Pin Assignment
|
4/5(+), 7/8(-)
|
|
Max. Power per Port:
|
60W Max per port (Alternative B Mode)
|
|
LED Indicators:
|
|
Power:
|
Power Status
|
|
PoE:
|
PoE Status
|
|
Dimensions (WxDxH):
|
95 x 70 x 30 mm
|
|
Weight:
|
0.25Kg
|
|
Casing:
|
Aluminum Case
|
|
Mounting Options:
|
DIN-Rail / Wall-mount
|
|
Regulatory Approvals
|
|
ISO9001
|
|
FCC part 15, Class A
|
|
EN55022:2006+A1: 2007 Class A
|
|
Surge Protection:
|
|
RJ45: 1KV
|
|
Power: 500V
|
|
ESD: 4KV/8KV
|
Industrial 2.5G 60W PoE Injector Ordering Information
|
Model
|
Description
|
|
LNK-INJ401-60
|
12~48VDC Power Input Industrial 2.5G 60W PoE Injector
|
|
Mounting Options
|
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
|
|
Power Options
|
► Power Supply is to be purchased separately
|
