12~48V DC Power Input Industrial 2.5G PoE+ Injector
Industrial 2.5G PoE+ Injector Overview

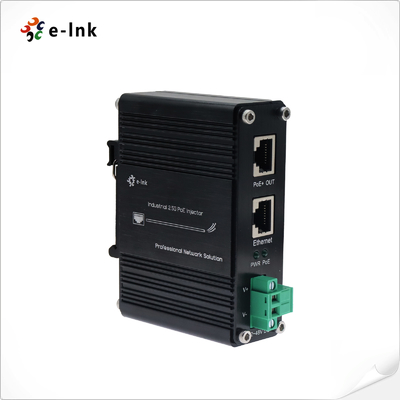

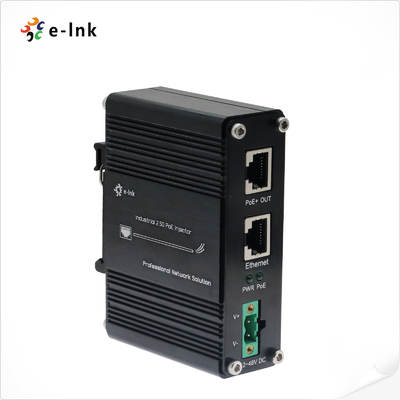

The LNK-INJ401-30 is a hardened 2.5G PoE injector designed to deliver high-speed power
over Ethernet (PoE) to IEEE 802.3af/at-compliant devices, such as IP cameras and wireless
access points, over distances of up to 100 meters. It connects non-PoE network switches to
PoE devices seamlessly and supports data rates of 10/100/1000/2500 Mbps on its Ethernet input
and PoE output ports. With its robust 12-48 VDC wide voltage input, the LNK-INJ401-30 ensures
reliable power delivery for high-availability applications in demanding environments.
Industrial 2.5G PoE+ Injector Features
-
Wide Power Input Range: Supports 12~48V DC power input for flexible deployment.
-
Dual RJ45 Ports: Includes 1 Ethernet Data Input Port and 1 PoE Output Port (Data + Power).
-
PoE+ Support: Compliant with IEEE802.3at Power over Ethernet (PoE+) for reliable power sourcing.
-
High-Speed Network Support: Compatible with 10/100/1000/2.5G Base-TX connections.
-
LED Status Indicators: Provides clear diagnostics for PoE and network status.
-
Industrial-Grade Design: Operates in extreme temperatures from -40°C to 80°C (-40°F to 176°F).
-
Compact Size: Space-saving design with dimensions of 95 × 70 × 30 mm.
-
Durable Construction: Rugged aluminum alloy housing for enhanced durability and heat dissipation.
-
Flexible Installation: Supports both DIN-rail and wall-mount installation options.
Industrial 2.5G PoE+ Injector Technical Indexes
|
Ethernet
|
|
Standards:
|
IEEE802.3af Power over Ethernet
|
|
IEEE802.3at Power over Ethernet
|
|
Processing Type:
|
Forward
|
|
Half-duplex, Full-duplex
|
|
Forward Filter Rate:
|
3,720,000pps (2.5Gbps)
|
|
Cabling:
|
10/100/1000/2.5G Base-T: Cat6A or above
|
|
Maximum Distance:
|
Cat6A UTP up to 100m
|
|
Connector:
|
2x RJ45
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 80°C (-40°F to 176°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF:
|
>200,000hrs
|
|
Electrical and Mechanical
|
|
Input Power:
|
12~48VDC (Terminal Block)
|
|
Power Consumption:
|
36W Max.
|
|
PoE (Power over Ethernet)
|
|
Standard:
|
IEEE802.3af/at
|
|
Port:
|
RJ45
|
|
Power Pin Assignment
|
4/5(+), 7/8(-)
|
|
Max. Power per Port:
|
30W Max per port (Alternative B Mode)
|
|
LED Indicators:
|
|
Power:
|
Power Status
|
|
PoE:
|
PoE Status
|
|
Dimensions (WxDxH):
|
95 x 70 x 30 mm
|
|
Weight:
|
0.25Kg
|
|
Casing:
|
Aluminum Case
|
|
Mounting Options:
|
DIN-Rail / Wall-mount
|
|
Regulatory Approvals
|
|
ISO9001
|
|
FCC part 15, Class A
|
|
EN55022:2006+A1: 2007 Class A
|
|
Surge Protection:
|
|
RJ45: 1KV
|
|
Power: 500V
|
|
ESD: 4KV/8KV
|
Industrial 2.5G PoE+ Injector Ordering Information
|
Model
|
Description
|
|
LNK-INJ401-30
|
12~48VDC Power Input Industrial 2.5G PoE+ Injector
|
|
Mounting Options
|
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
|
|
Power Options
|
► Power Supply is to be purchased separately
|
