24-Port 1U Rackmount Passive PoE Injector for Centralized Device Power

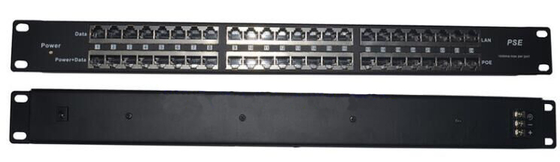

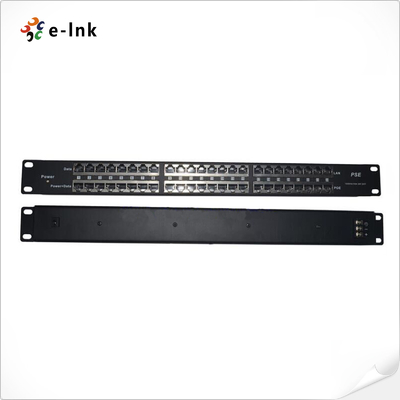

Large Image : 24-Port 1U Rackmount Passive PoE Injector for Centralized Device Power

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	E-link
Certification:	CE, FCC, RoHS, ISO9001
Model Number:	LNK-POE-24P
Document:	1E-link Communication & Net...og.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	$39-$59
Packaging Details:	PoE Injector Standard Export Package
Delivery Time:	3-7 working days
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	1000 pcs/month

Contact Now

Detailed Product Description

Type:	Passive PoE Power Supply	Ports:	24 PoE + 24 LAN RJ45 Connectors
Voltage:	12–57V DC, 1.5A Max Per Port	Ethernet Speed:	10/100 Mbps
Standards:	Non-IEEE802.3af/at	Dimension:	482.6 × 44.3 × 25 Mm (1U)

24-Port 1U Rackmount Passive PoE Injector for Centralized Device Power

Overview

The 24-Port 1U Rackmount Passive PoE Injector delivers reliable power and data

integration for up to 24 devices, making it ideal for IP cameras, WiFi access points, and

VoIP phones. With support for 12–57V DC input, this injector simplifies deployments by

centralizing power distribution over standard Ethernet cables, reducing clutter and

installation costs.

Features

24 Ports PoE: Power up to 24 devices over Ethernet

Flexible Input: Supports 12–57V DC voltage range

Rackmount Design: Compact 1U for standard 19” racks

Long Reach: Power delivery up to 100m over Cat5/6/7

Durable Build: Metal housing with CE, FCC, RoHS approval

Efficient & Reliable: ≥80% efficiency, fast <1ns response

Technical Indexes

Type	Passive POE power supply
Input Voltage	12-57Vdc
Input Current	16A max
Input Type	Passive
Output Voltage / Power	12-57Vdc, 1.5A max
Output type	Single output 24RJ45 connector ---POE 24RJ45 connector ----LAN
Ethernet speed	10/100Mbps Pin 45+78-, 2 pairs
Internet standard	NO Compliance IEEE802.3AF/802.3AT
Material	Metal
Approval	CE/ROHS/FCC
Warranty	2 year
Output Ripple	1% Max
Efficiency	≥80%
Response Time	<1ns
Combined Load Regulation	±3%
Combined Line Regulation	±5%
LED indicator	Power on, Green (With Plastic enclosure)
Operating Temp	0 to 40℃ (32 to 104℉)
Storage Temp	-20 to 85 ℃ ( -22 to 158 ℉)
Dimension (LxWxH)	482.6mm * 44.3mm * 25mm
Weight	5kg
Operating Humidity	10~ 90% Non-condensing
