4-Port Passive PoE Power Supply Injector for Cameras APs 100m Range

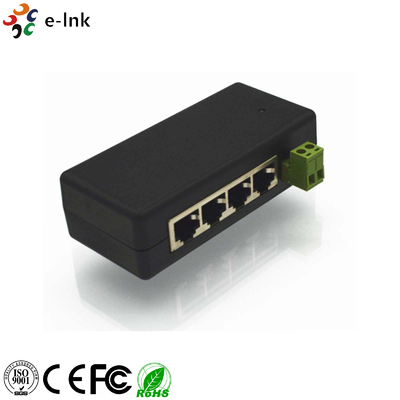

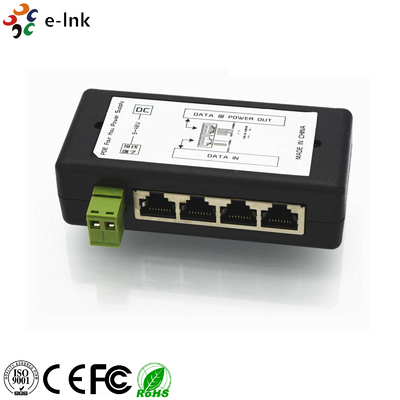

Large Image : 4-Port Passive PoE Power Supply Injector for Cameras APs 100m Range

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	E-link
Certification:	CE, FCC, RoHS, ISO9001
Model Number:	LNK-POE-4P
Document:	1E-link Communication & Net...og.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	$4-6
Packaging Details:	POE Power Supply Standard Export Package
Delivery Time:	3-9 working days
Payment Terms:	Western Union,MoneyGram,T/T
Supply Ability:	1000 pcs/month

Contact Now

Detailed Product Description

Type:	Passive PoE Injector, Non-IEEE Compliant	Ports:	4 LAN Input + 4 PoE Output (RJ45)
Ethernet Rate:	10/100 Mbps	Input Voltage:	12–57V DC
Max Output:	57W Total (up To 1.5A)	Operating Temp:	0°C ~ 40°C (32°F ~ 104°F)

4-Port Passive PoE Power Supply Injector for Cameras APs 100m Range

Overview

The 4-Port 10/100M Passive PoE Power Supply enables centralized and cost-effective

powering of up to four network devices such as IP cameras, access points, or VoIP phones.

By injecting power through Ethernet cabling, it eliminates the need for separate power lines,

ensuring a simplified and flexible deployment for small office, home, or surveillance networks.

Features

Supports up to 4 passive PoE devices via CAT5/6/7 cabling

100m (328 ft) power & data transmission distance

Uses pins 4/5 (+) and 7/8 (–) for power injection

Wide 12–57V DC input range, up to 1.5A

Compact plug-and-play design with power LED indicator

CE/ROHS/FCC certified with 3-year warranty

Technical Indexes

Type	Passive POE power supply
Input Voltage	12-57Vdc
Input Current	1.5A max
Input Type	Passive
Output Voltage / Power	12-57Vdc, 1.5A max
Output type	Single output 4RJ45 connector ---POE 4RJ45 connector ----LAN
Ethernet speed	10/100Mbps Pin 45+78-, 2 pairs
Internet standard	NO Compliance IEEE802.3AF/802.3AT
Material	Plastic
Approval	CE/ROHS/FCC
Warranty	3 year
Output Ripple	1% Max
Efficiency	≥80%
Response Time	<1ns
Combined Load Regualtion	±3%
Combined Line Regualtion	±5%
LED indicator	Power on, Green (With Plastic enclosure)
Operating Temp	0 to 40℃ (32 to 104℉)
Storage Temp	(-)20 to 85 ℃ ( -22 to 158 ℉)
Operating Humidity	10~ 90% Non condensing
