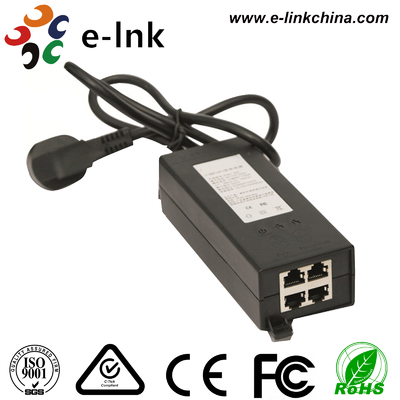

Dual-Port Gigabit PoE Injector 30W Power Supply Data Transmission

Large Image : Dual-Port Gigabit PoE Injector 30W Power Supply Data Transmission

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	E-link
Certification:	CE, FCC, RoHS, ISO9001
Model Number:	LNK-PJ202/LNK-PJ302
Document:	1E-link Communication & Net...og.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	500 pcs
Price:	$13-$20
Packaging Details:	PoE Injector Standard Export Package
Delivery Time:	3-9 working days
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	2000pcs/month

Contact Now

Detailed Product Description

Standard:	IEEE 802.3af/at Compliant	Data Rate:	10/100/1000Mbps
Output Voltage:	DC 48V, Up To 30W Per Port	Input Power:	AC 100–240V Or DC Selectable
Interfaces:	2 × RJ45, Power Plug As Required	Dimensions:	147×58×40mm \| Weight: ~200g

Dual-Port Gigabit PoE Injector 30W Power Supply Data Transmission

Overview

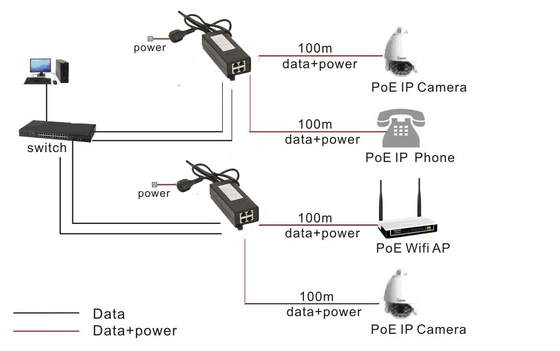

The 2-Group PoE Adapter Injector delivers reliable data and power over a single Ethernet

cable, reducing installation complexity. Supporting IEEE 802.3af/at standards, it ensures up

to 30W per port, ideal for IP cameras, wireless APs, and other PoE-enabled devices. With

dual output options and AC/DC selectable input, it provides a cost-effective solution for

network deployments where power access is limited.

Features

Dual PoE Output: Supports 2 devices with up to 30W per port

Standards Compliant: IEEE 802.3af/at, auto-detects PoE devices

Flexible Input: AC 100–240V or DC selectable power supply

High-Speed Transmission: 10/100/1000Mbps for bandwidth-intensive apps

Versatile Output Voltage: 5V/9V/12V options for different PD devices

Plug & Play: Easy deployment, no extra cabling required

Compact & Durable: Lightweight design with reliable performance

Technical Indexes

Standard	IEEE 802.3af, IEEE 802.3at
Transfer Data	10/100M or 10/100/1000Mbps
transmission medium	10 Base-T: Cat3, 4, 5 UTP, ≤100m 100/1000BASE-TX:Cat5 and Up UTP,≤100m
output voltage	DC 48V; Two Groups 0.6A,Single Port≤30W
Interface	RJ45
Interface	power plug: according to requirement
indicator	Power and Two Data+Power indicator
voltage range	AC 100～240V 50/60Hz
power dissipation	Standby 2.8W; FL 60W
Dimensions (W X D X H)	5.79 x 2.28x 1.57 in.(147×58×40mm) (Mounting holes on the other gauge)
Weight	About 200g
Environment	Operating Temperature: -15℃～+45℃(5℉~113℉)
	Operating Humidity: 20% ～85％
	Storage Temperature -25°C—60°C(-13℉~140℉)
	Storage Humidity:20% ～90％

Ordering Information

Model	Decription
LNK-PJ202	2-Port PoE Adapter, 10/100Mbps, IEEE 802.3af 15.4W
LNK-PJ202AT	2-Port PoE Adapter, 10/100Mbps, IEEE 802.3at 30W
LNK-PJ302	2-Port PoE Adapter, 10/100/1000Mbps, IEEE 802.3af 15.4W
LNK-PJ302AT	2-Port PoE Adapter, 10/100/1000Mbps, IEEE 802.3at 30W
