Dual-Port PoE Injector IEEE802.3af/at 15.4W/30W Power for APs IP Cameras

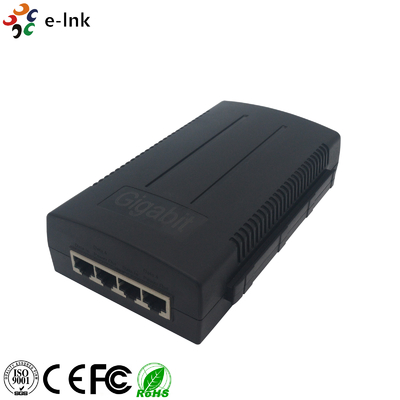

Large Image : Dual-Port PoE Injector IEEE802.3af/at 15.4W/30W Power for APs IP Cameras

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	E-link
Certification:	CE, FCC, RoHS, ISO9001
Model Number:	LNK-POE202/LNK-POE302
Document:	1E-link Communication & Net...og.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	$21-$38
Packaging Details:	PoE Injectors Standard Export Package
Delivery Time:	3-9 working days
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	1000 pcs/month

Contact Now

Detailed Product Description

Power Output:	15.4W (af) / 30W (at)	Data Rate:	10/100Mbps Or 10/100/1000Mbps
Input Voltage:	AC100–240V	Ports:	2 × RJ45 (LAN), 2 × RJ45 (PoE)
LED Indicators:	Power & PoE Status	Dimensions:	170 × 98 × 42mm

Dual-Port PoE Injector IEEE802.3af/at 15.4W/30W Power for APs IP Cameras

Overview

The LNK-POE202/302 Dual-Port PoE Injector delivers reliable power and data over a single

Ethernet cable, reducing installation costs and simplifying deployment of WLAN access points,

IP cameras, VoIP phones, and other PoE-enabled devices. Supporting IEEE802.3af/at

standards, it ensures safe, automatic detection and compatibility with both Fast Ethernet

and Gigabit networks.

Features

Supports IEEE802.3af (15.4W) / IEEE802.3at (30W) power output

Available in 10/100Mbps or 10/100/1000Mbps LAN environments

Dual-port design for flexible device connectivity

Plug & Play installation, no configuration required

Safe operation with automatic device detection & protection

Combines power and data on one cable, lowering costs and effort

Technical Indexes

Parameter	Specifications
Features	• Conforms to IEEE802.3af standard RJ-45 • Conforms to IEEE802.3af standard RJ-45
	• Data Input Interface RJ-45 10/100Base-TX/ • Data Input Interface RJ-45 10/100/1000Base-TX
	• Output Port Power Cable Included
Data Rate	10/100Mbps 10/100/1000Mbps
Input Power	AC100-240V
Output Power	15.4W Max IEEE802.3af 30W Max IEEE802.3at
Wiring	• Data provide over pairs 1/2(+) and 3/6(-)
Wiring	• Power over spare pairs 4/5(+) and 7/8(-)
Output type	Single outputa 2RJ45 connector ---POE 2RJ45 connector ----LAN
LED Display	YES
Operating Temperature	0 to +40°C,
Humidity	Max. 95% RH(non-condensing)
Dimension	1709842mm (H×D×W)
Weight	250g

Ordering Information

Model	Decription
LNK-POE202	2-Port PoE Adapter, 10/100Mbps, IEEE 802.3af 15.4W
LNK-POE202AT	2-Port PoE Adapter, 10/100Mbps, IEEE 802.3at 30W
LNK-POE302	2-Port PoE Adapter, 10/100/1000Mbps, IEEE 802.3af 15.4W
LNK-POE302AT	2-Port PoE Adapter, 10/100/1000Mbps, IEEE 802.3at 30W
