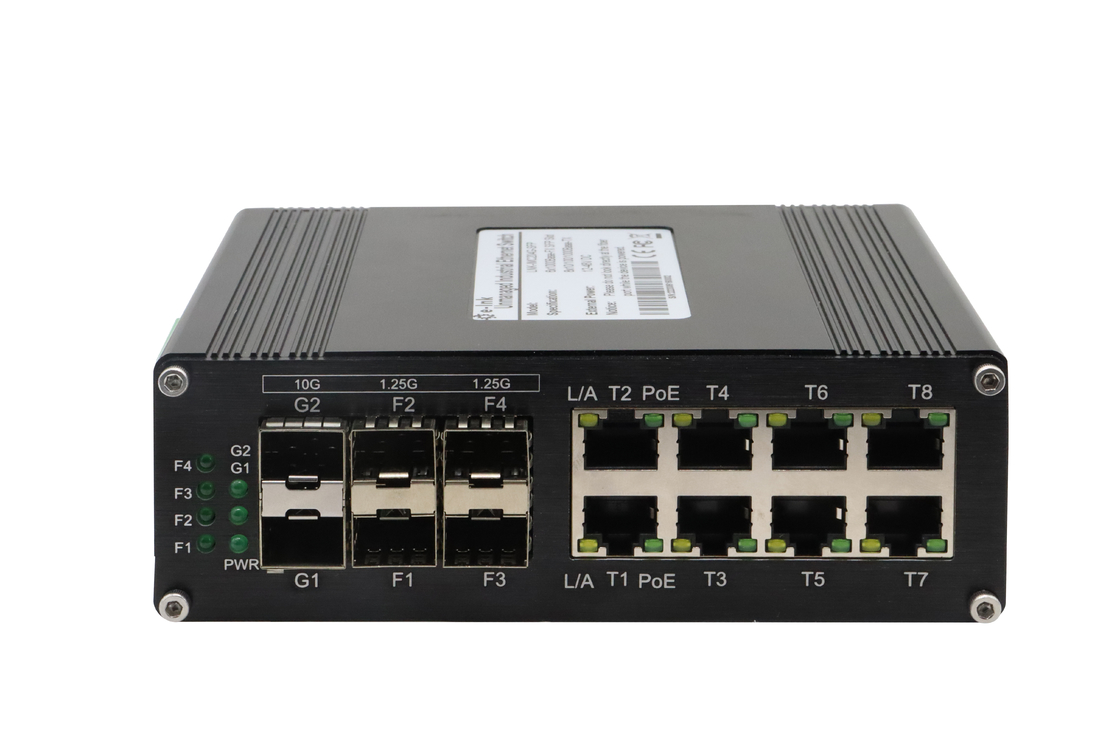

Industrial 8G + 4G SFP + 2x10G SFP+ Hardened Ethernet Switch DIN-Rail

Large Image : Industrial 8G + 4G SFP + 2x10G SFP+ Hardened Ethernet Switch DIN-Rail

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	E-link
Certification:	CE, RoHS, FCC, ISO9001
Model Number:	LNK-IMC2X4S8G
Document:	1E-link Communication & Net...og.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	$119-$145
Packaging Details:	Fiber Optic Switch Standard Export Package
Delivery Time:	5-12working days
Payment Terms:	T/T,Western Union,MoneyGram,paypal,Credit Card
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Port Configuration:	8 × RJ45 + 4 × 1G SFP + 2 × 10G SFP+	Switching Capacity:	Up To 1488 Mpps @10Gbps
Packet Buffer:	2.75M Bits, Store-and-Forward Processing	MAC Address Table:	8K Entries
Power Input:	12~48VDC Dual Redundant	Certifications:	CE, ISO9001, IEC 61000-4 Series
Highlight:	Industrial hardened Ethernet switch , 8G 4G SFP fiber switch , DIN-rail 10G SFP+ switch

Industrial 8G + 4G SFP + 2x10G SFP+ Hardened Ethernet Switch DIN-Rail

Overview

The LNK-IMC2X4S8G Series is a rugged industrial Ethernet switch with 8 Gigabit RJ45

ports, 4 Gigabit SFP slots, and 2 high-speed 10G SFP+ uplinks. Designed with a fanless

aluminum housing, wide -40°C to 80°C operating temperature, and redundant power inputs,

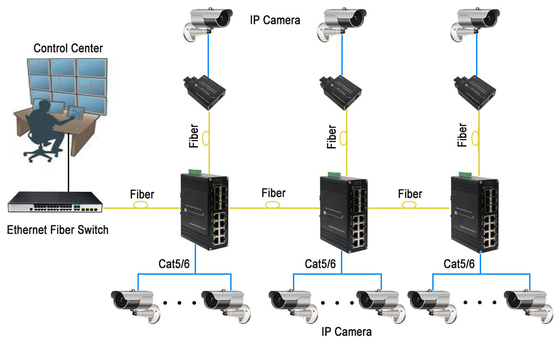

it delivers reliable, high-bandwidth connectivity for mission-critical industrial networks

such as surveillance, transportation, and wireless backhaul.

Features

High Port Density: 8 × Gigabit RJ45 + 4 × 1G SFP + 2 × 10G SFP+ uplinks

10G Capability: Future-proof bandwidth for high-speed backbone connections

Industrial Hardened: -40°C to 80°C operation, IP40 aluminum housing

Resilient Power: Dual 12~48VDC redundant inputs with overload protection

Efficient Networking: Jumbo frames up to 9K bytes, IEEE 802.3az Energy Efficient Ethernet

Easy Deployment: Compact 149 × 114 × 50 mm, DIN-Rail mount ready

Technical Indexes

Ethernet
Standards:	IEEE802.3 10BASE-T
	IEEE802.3u 100BASE-TX/FX
	IEEE802.3ab 1000BASE-T
	IEEE802.3z 1000BASE-X
	IEEE802.3ae 10GBase-R
	IEEE802.3p QoS
	IEEE802.1d Spanning Tree
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
	1,488,000,000pps (10000Mbps)
Packet Buffer Memory:	2.75M bits
Processing Type:	Store-and-Forward
Max Packet Length:	9K Bytes Jumbo Frame
Address Table Size:	8K MAC Addresses
Interface
Connector:	8 x RJ45
Optical Port:	4 x 1000Base-X SFP 2 x 10G Base-SR/LR SFP+
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	12~48VDC, Redundant Power (6-pin Terminal Block)
Power Consumption:	8W Max.
Protection:
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
LED Indicators:
Power:	Power Status
Ethernet (Per Port):	Link/Activity
Fiber:	Gigabit SFP Port: F1~F4
Fiber:	10G SFP+ Port: G1, G2
Dimensions (WxDxH):	149 x 114 x 50 mm
Weight:	0.55Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail mount
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024:2010
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC2X4S8G	Industrial 8-Port 10/100/1000T + 4-Port 1G SFP + 2-Port 10G SFP+ Ethernet Switch
SFP Options	► SFP option. Please select your SFP on our SFP Options Page
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed
Power Options	► DIN-Rail Power Supply. Open Wire for Terminal Block.
Power Options	► Power Supply is to be purchased separately.
