Mini Industrial 8-Port PoE+ 2-Port Gigabit Ethernet Switch 12–48V DC -40~80°C

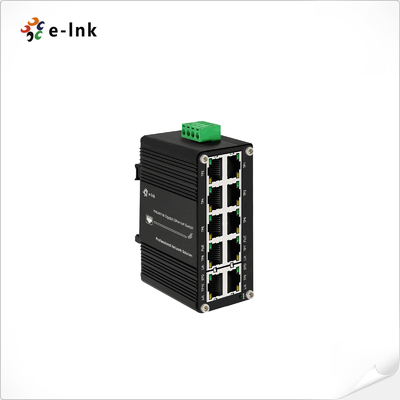

Large Image : Mini Industrial 8-Port PoE+ 2-Port Gigabit Ethernet Switch 12–48V DC -40~80°C

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-IMC010GPB
Document:	2E-link Video Transmission ...og.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	US$49.9/pc
Packaging Details:	PoE Switch Standard Export Package
Delivery Time:	3~5 working days
Payment Terms:	Paypal,TT,Western Union,MoneyGram,Alipay
Supply Ability:	5000pcs per month

Contact Now

Detailed Product Description

Ports:	8× PoE+ RJ45, 2× Gigabit RJ45	Power Input:	12–48V DC, Redundant, Reverse Polarity Protected
Operating Temp:	-40°C ~ 80°C	Housing:	IP40 Aluminum, Fanless, DIN-Rail Mountable
Certifications:	CE, FCC, RoHS, IEC Compliance	PoE Standard:	IEEE 802.3af/at, Max 30W Per Port

Mini Industrial 8-Port PoE+ 2-Port Gigabit Ethernet Switch 12–48V DC -40~80°C

Overview

The LNK-IMC010GPB is a compact industrial 10-port Gigabit switch with 8 PoE+ ports and 2 uplink RJ45 ports. Supporting up to 240W PoE budget and wide 12–48V DC redundant input, it delivers reliable power and data for IP cameras, access points, and other high-powered devices. Its rugged IP40 metal casing and fanless design enable operation in harsh industrial environments from -40°C to 80°C.

Features

8× PoE+ ports & 2× Gigabit RJ45 uplinks for flexible deployment

Up to 240W PoE budget with variable input (12–48V DC)

Fanless, IP40 rugged aluminum housing for extreme industrial environments

Redundant power with reverse polarity & overload protection

IEEE 802.3x flow control & IEEE 802.3az Energy Efficient Ethernet

DIN-Rail mountable for compact installations

Supports 8 Class 4 PDs simultaneously

Operating range: -40°C to 80°C

Enhanced protection: Surge 8kV, ESD, shock, vibration

Technical Indexes

Ethernet
Standards:	IEEE 802.3 Ethernet
	IEEE 802.3u Fast Ethernet
	IEEE 802.3ab Gigabit Ethernet
	IEEE 802.3x Full-Duplex Flow Control
	IEEE 802.3az Energy Efficient Ethernet (EEE)
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer:	2Mbits
Packet Length:	9216bytes
MAC Address Table:	4K entries
Switch Fabric:	20Gbps/non-blocking
Switch Throughput (packet per second)	14.88Mpps@64bytes
Interface
Connector:	10 10/100/1000BASET RJ45 auto-MDI/MDI-X ports 8 ports with 802.3at PoE+ function (Port 1 to 8)
PoE (Power over Ethernet)
Standard:	IEEE 802.3at Power over Ethernet Plus/PSE IEEE 802.3af Power over Ethernet/PSE
Port:	RJ45
Power Pin Assignment	4/5(+), 7/8(-)
PoE Budget:	Up to 240-watt PoE budget (48V DC), Up to 90-watt PoE budget (24V DC), Up to 60-watt PoE budget (12V DC)
Max. Number of Class 4 PDs	8
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 100,000 hrs
Electrical and Mechanical
Input Power:	12~48VDC Redundant power with polarity reverses protection function
Power Consumption:	<250W (Non-PoE<10W)
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present

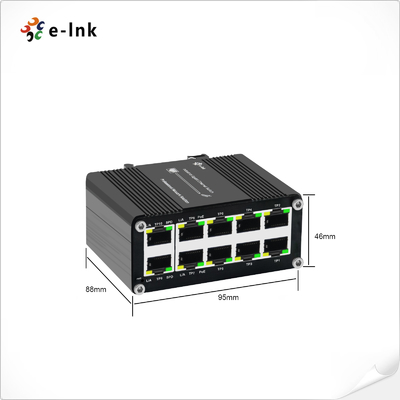

Dimensions (WxDxH):	95 x 88 x 46mm
Weight:	400g
Casing:	Aluminum Case
Mounting Options:	DIN-Rail mount
LED Indicators:
PWR	Power
L/A	Link/Activity
SPD	Data Rate
PoE	PoE Status
Regulatory Approvals
EMC	CE (EN55032, EN55035)
EMI	FCC Part 15 Subpart B
EMS	EN61000-4-2 (ESD) EN61000-4-3 (RS)
	EN61000-4-4 (EFT) EN61000-4-5 (Surge)
	EN61000-4-6 (CS) EN61000-4-8 (PFMF) EN61000-4-11
Safety	CE (EN60950-1)
Surge Protection	8KV for PoE, RJ-45 and SFP ports
Shock	IEC60068-2-27
Freefall	IEC60068-2-32
Vibration	IEC60068-2-6

Ordering Information

Model	Description
LNK-IMC010GPB	Mini Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Compact Ethernet Switch
Mounting Options	► Default DIN-Rail Bracket installed.
Power Options	► Power Supply is to be purchased separately
