Mini 4K DVI Fiber Optic Extender with RS232

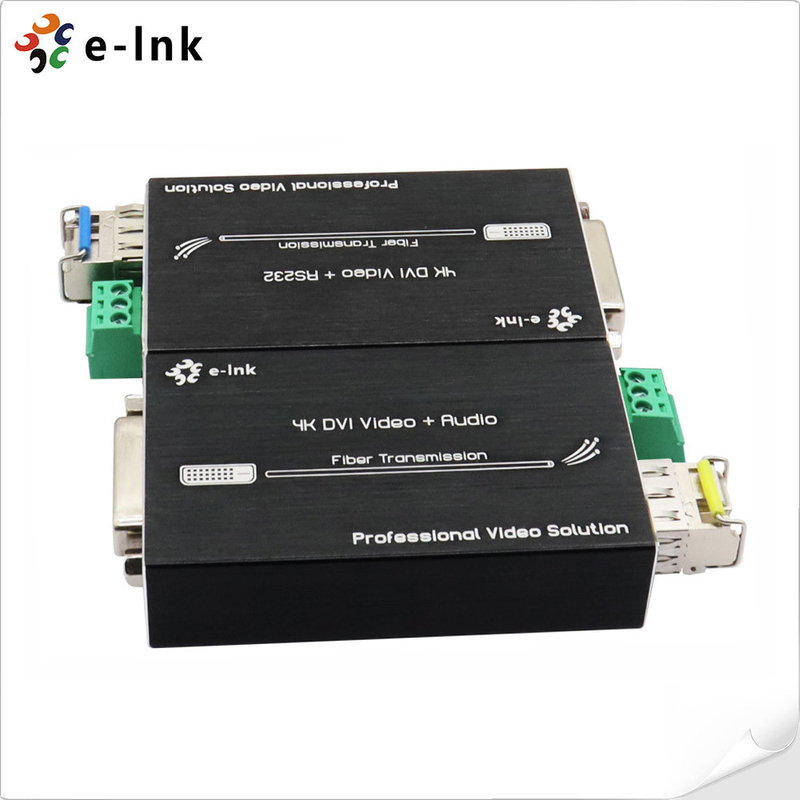

Mini 4K DVI Fiber Optic Extender Overview
The LNK-MDR4K Series 4K DVI fibre extender enables the high-performance transmission of
uncompressed DVI and RS232 signals over fibre optic cable, with a maximum distance of 80 km.
It delivers crystal-clear video at resolutions of up to 4K×2K@60Hz with YUV 4:2:0 chroma subsampling.
The transmitter converts DVI signals into a 10 Gb/s serial data stream for seamless fibre optic transmission,
and the receiver accurately restores the signal for output. Compliant with RoHS standards in Europe
and China, this extender provides excellent anti-interference capabilities, ensuring reliable performance
in large-screen displays, conferencing systems and home entertainment setups.
Mini 4K DVI Fiber Optic Extender Features
-
Compliant with DVI 1.0 and HDCP 1.2 standards
-
Uncompressed transmission with zero delay and zero data loss
-
High data rate up to 10.2Gbps for smooth signal performance
-
Supports transmission distance up to 80km over fiber optic cable
-
Compatible with all video modes up to 4K×2K@60Hz, YUV 4:2:0
-
RS232 signal transmission supported
-
Auto EDID for seamless display compatibility
-
Hot-pluggable design, resistant to EMI/RFI interference
-
Compact, lightweight form factor for easy installation
-
Wide operating temperature range: -10°C to +50°C
Mini 4K DVI Fiber Optic Extender Technical Indexes
|
Type of Extender
|
DVI signal over Optical Fiber Cable
|
|
Input Signals
|
DVI
|
|
Connector
|
DVI-D
|
|
Signal Support
|
DVI 1.0 format standard and HDCP compliant
|
|
Video Support
|
Up to 720P/960P/1080p@60Hz, 4K*2K@30Hz
|
|
Audio Support
|
Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)
|
|
Chroma Subsampling
|
Max 3840*2160@60Hz (4:2:0)
Max 3840*2160@30Hz (4:4:4, 4:2:2)
|
|
EDID
|
Bi-Directional (Forward + Backward) Transmission:
Support Dynamic EDID, Plug & Play, no need to learn
Single-Directional (Forward) Transmission:
Support EDID learning manually
|
|
RS232
|
3 Pin terminal, Baud rate ≤ 38400
|
|
Fiber Connector
|
SFP/LC
|
|
Bandwidth
|
10.2Gbps
|
|
Transmission Distance
|
300m (Over OM3 Fiber)
|
|
Up to 80km (Over Single-mode Fiber)
|
|
Operating Temperature
|
-10 ~ + 50°C
|
|
Storage Temperature
|
-20 ~ + 80°C
|
|
Humidity
|
5% to 90% RH (non-condensing)
|
|
MTBF
|
100,000 hours
|
|
Dimension (WxDxH)
|
2.87 x 1.73 x 0.69in (73x44x17mm)
|
|
Weight
|
60g / 0.13 lb
|
|
Power Supply
|
5V DC (USB-C)
|
|
Power dissipation
|
<5W
|
|
Safety Approvals
|
CE, FCC, Rohs
|
Mini 4K DVI Fiber Optic Extender Interfaces
Mini 4K DVI Fiber Optic Extender Ordering Information
|
Model
|
Description
|
|
|
LNK-MDR4K-MM
|
Mini DVI Fiber Extender: 1-Ch DVI Signal(4K*2K) + Backwards RS232, OM3 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, 5V DC Power Input
|
|
LNK- MDR4K-S20
|
Mini DVI Fiber Extender: 1-Ch DVI Signal(4K*2K) + Backwards RS232, Single-mode Fiber, 20km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input
|
|
LNK- MDR4K-S40
|
Mini DVI Fiber Extender: 1-Ch DVI Signal(4K*2K) + Backwards RS232, Single-mode Fiber, 40km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input
|
|
LNK- MDR4K-S80
|
Mini DVI Fiber Extender: 1-Ch DVI Signal(4K*2K) + Backwards RS232, Single-mode Fiber, 80km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input
|
Mini 4K DVI Fiber Optic Extender Application
