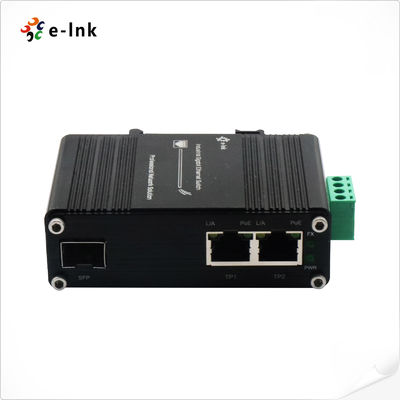

Mini Industrial 1-Port 100/1000X SFP to 2-Port 10/100/1000T 90W PoE++ Media Converter
Mini Industrial 90W Media Converter Overview
The LNK-IMC1200GP90-SFP is a high-performance industrial media converter designed
to deliver exceptional power and reliable connectivity for the most demanding network applications.
Seamlessly converting Gigabit copper Ethernet to fibre optic signals, it supplies an impressive 90 W
of IEEE 802.3bt (PoE+) power. This makes it the ultimate solution for powering high-wattage equipment
such as advanced PTZ cameras, Wi-Fi 7 access points, 5G small cells and industrial touch panels,
all via a single Ethernet cable.
Built for mission-critical environments, this robust converter can operate flawlessly in temperatures
ranging from -40°C to +75°C. Its compact, DIN rail-mountable form factor is ideal for industrial
control panels and harsh outdoor settings. By integrating a high-bandwidth fibre SFP uplink
with the industry's highest PoE power output, the converter eliminates the need for separate data
and power lines to be run to remote, power-hungry devices, ensuring maximum reliability and uptime.
Compliance with the EN55022 standard ensures reliable performance in electromagnetically noisy environments.
Mini Industrial 90W Media Converter Features
►2 × 10/100/1000BASE-T RJ45 Ports with auto MDI/MDI-X function
►1 × SFP Port with dual-mode auto detection (100Base-FX / 1000Base-X)
►High-Power PoE Support: IEEE 802.3af/at PoE+ (30W) and IEEE 802.3bt PoE++ (up to 90W)
►Reliable Data Transmission with Full/Half-duplex and Auto-negotiation support
►Energy-Efficient Design compliant with IEEE 802.3az (EEE)
►Wide Power Input Range: 48~57VDC via terminal block
►Flexible Installation: Supports DIN-Rail and Wall-mount mounting
►Rugged Industrial Design with extended operating temperature range of -40°C to 75°C (-40°F to 167°F)
Mini Industrial 90W Media Converter Technical Indexes
|
Ethernet
|
|
Standards:
|
IEEE802.3 10Base-T
|
|
IEEE802.3u 100Base-TX/FX
|
|
IEEE802.3ab 1000Base-T
|
|
IEEE802.3z 1000Base-X
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE)
|
|
IEEE802.3af Power over Ethernet
|
|
IEEE802.3at Power over Ethernet
|
|
IEEE802.3bt Power over Ethernet
|
|
Processing Type:
|
Store-and-Forward
|
|
Forward Filter Rate:
|
14,880pps (10Mbps)
|
|
148,800pps (100Mbps)
|
|
1,488,000pps (1000Mbps)
|
|
Packet Buffer Memory:
|
1 Mbit
|
|
Max Packet Length:
|
9K Bytes
|
|
Address Table Size
|
2K MAC Addresses
|
|
Interface
|
|
Connector:
|
2 x RJ45
|
|
Optical Port:
|
1 x SFP 1000Base-X or 100Base-FX (auto detection)
|
|
Electrical and Mechanical
|
|
Input Power:
|
48~57VDC, 4-pin terminal block
|
|
Power Consumption:
|
185W Max.
|
|
LED Indicators:
|
|
PWR:
|
Power Status
|
|
PoE:
|
PD Plug Status
|
|
RJ45:
|
LINK/Activity
|
|
SFP:
|
LINK
|
|
Dimensions (WxDxH):
|
95 x 70 x 30 mm
|
|
Weight:
|
0.25Kg
|
|
Casing:
|
Aluminum Case
|
|
Mounting Options:
|
DIN-Rail / Wall-mount
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 75°C (-40°F to 167°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF
|
> 200,000 hrs
|
|
Regulatory Approvals
|
|
ISO9001, CE, FCC, RoHS
|
|
EMI:
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024: 2010
|
|
EMS:
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)
|
Mini Industrial 90W Media Converter Ordering Information
|
Model
|
Description
|
|
LNK-IMC1200GP90-SFP
|
Hardened 2-Port 10/100/1000BASE-TX to 100/1000BASE-X SFP Media Converter with 90W PoE++
|
|
SFP Options
|
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
|
|
► SFP module is to be purchased separately.
|
|
Mounting Options
|
► Default DIN-Rail Bracket installed, Wall Mount Bracket is included.
|
|
Power Options
|
► 240W/5A 48VDC Power Supply. Open Wire for Terminal Block
|
|
► Power Supply is to be purchased separately.
|
Mini Industrial 90W Media Converter Application
