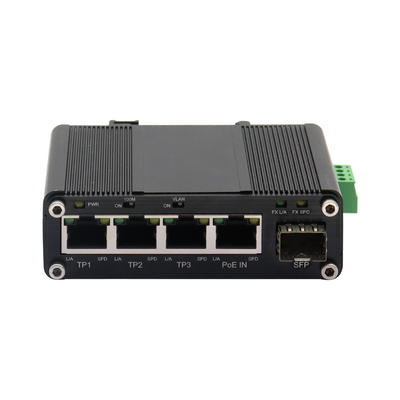

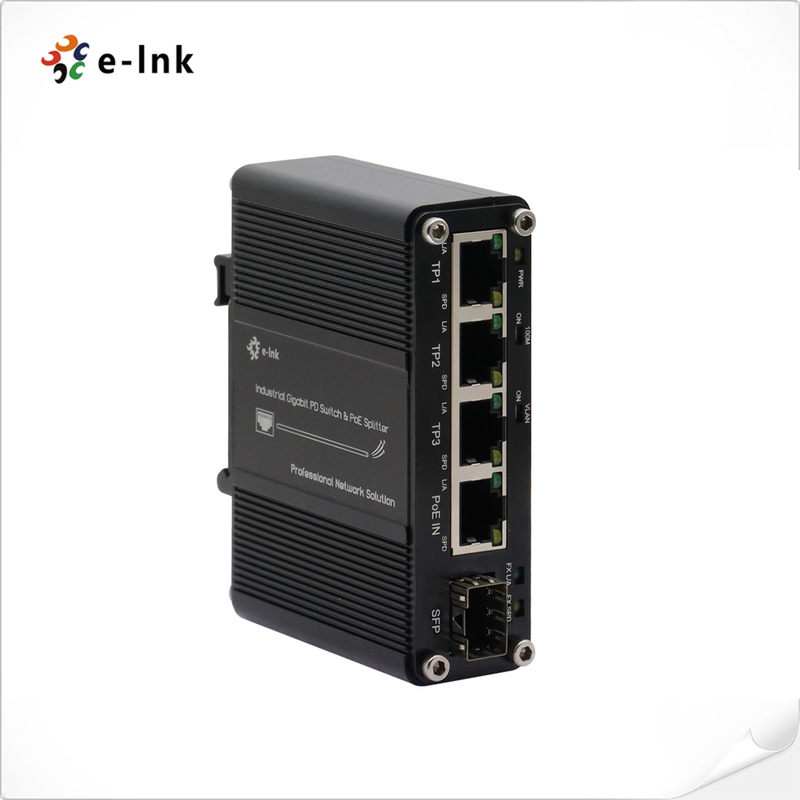

Mini Industrial 3-Port 10/100/1000T + 1-Port 100/1000X SFP PD Switch with PoE Splitter Function
Mini Industrial PD Switch with PoE Splitter Function Overview
The LNK-IMC103G-SFP-PD is a compact, feature-rich industrial switch that combines
a 4-port Gigabit Ethernet switch, a fibre optic SFP uplink and a high-power PoE splitter
in one ruggedised unit. Designed for use in environments where space is limited and conditions
are harsh, it provides unparalleled flexibility for network deployment and power delivery.
This versatile switch receives power remotely via a standard PoE input port, eliminating the need
for a local AC power source. It then converts this PoE power into a stable 5–24 V DC output (up to 60 W)
to power critical equipment such as industrial PCs, wireless access points or IP cameras directly.
The integrated SFP fibre slot enables reliable long-distance network extension with complete immunity
to electromagnetic interference. Its robust metal housing and support for DIN rail or wall mounting make
it ideal for automation, surveillance and IoT applications.
Mini Industrial PD Switch with PoE Splitter Function Features
► 100/1000BASE-X SFP Slot with auto-detection for flexible fiber connectivity
► 3 × 10/100/1000Mbps RJ45 Ports for high-speed Ethernet connections
► 1 × PoE PD RJ45 Port (10/100/1000Mbps) for Power over Ethernet input
► Energy Efficient Design compliant with IEEE 802.3az (EEE) standard
► DC Power Output: 5~24V, up to 3A / 60W maximum
► Flexible Installation: Supports both DIN-Rail and Wall-mount mounting
Mini Industrial PD Switch with PoE Splitter Function Technical Indexes
|
Ethernet
|
|
Standards:
|
IEEE802.3 10Base-T
|
|
IEEE802.3u 100Base-TX/FX
|
|
IEEE802.3ab 1000Base-T
|
|
IEEE802.3z 1000Base-X
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE)
|
|
IEEE802.3at/bt Power over Ethernet
|
|
Interface
|
|
Connector:
|
4x RJ45
|
|
Optical Port:
|
1 x SFP 1000Base-X or 100Base-FX (auto detection)
|
|
Phoenix Connector
|
Support 5-24V DC output (Max 3A, Max 60W)
|
|
Electrical and Mechanical
|
|
LED Indicators:
|
|
FX L/A:
|
Data LINK Status
|
|
FX SPD
|
FX SPD Status
|
|
PWR:
|
Power Status
|
|
100M/1000M:
|
Fiber LINK Status
|
|
DIP Switch Function:
|
|
100M DIP Switch
|
ON - Enabled OFF - Disabled
|
|
VLAN DIP Switch
|
ON - Enabled OFF - Disabled
|
|
Dimensions (WxDxH):
|
95 x 82 x 30 mm
|
|
Weight:
|
0.25Kg
|
|
Casing:
|
Aluminum Case
|
|
Mounting Options:
|
DIN-Rail / Wall-mount
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 75°C (-40°F to 167°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
90% max, non-condensing
|
|
MTBF
|
> 200,000 hrs
|
|
Regulatory Approvals
|
|
ISO9001, CE, FCC, RoHS
|
|
EMI:
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024: 2010
|
|
EMS:
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)
|
Mini Industrial PD Switch with PoE Splitter Function Ordering Information
|
Model
|
Description
|
|
LNK-IMC103G-SFP-PD
|
Mini Industrial 3-Port 10/100/1000T + 1-Port 100/1000X SFP PD Switch
with PoE Splitter Function
|
|
Mounting Options
|
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
|
