Mini Industrial 5-Port Gigabit Ethernet Switch 12~48VDC PoE Optional

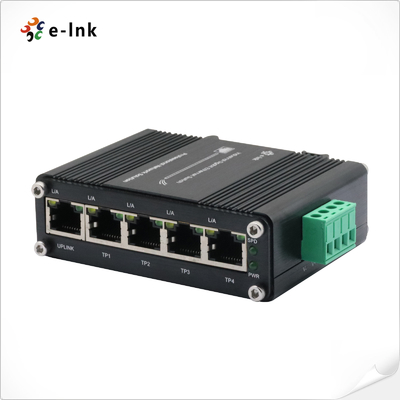

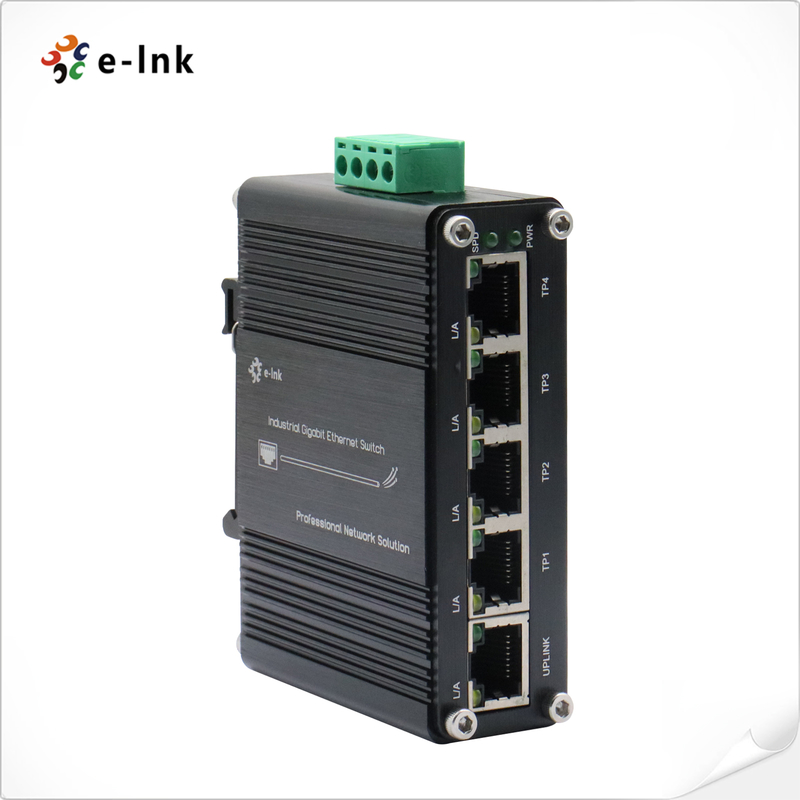

Large Image : Mini Industrial 5-Port Gigabit Ethernet Switch 12~48VDC PoE Optional

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	E-link
Certification:	CE, RoHS, FCC, ISO9001
Model Number:	LNK-IMC005G
Document:	1E-link Communication & Net...og.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	negotiated
Packaging Details:	Industrial Ethernet PoE Switch Standard Export Package
Delivery Time:	5-12working days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Ethernet Ports:	5 × 10/100/1000BASE-T RJ45	Standards:	IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3az
Power Input:	12~48VDC (Terminal Block), <6W (non-PoE)	Casing:	Aluminum, IP40 Protection
Dimensions:	95 × 70 × 29 Mm; Weight: 0.25Kg	Weight:	0.25Kg

Mini Industrial 5-Port Gigabit Ethernet Switch 12~48VDC PoE Optional

Overview

The LNK-IMC005G Series is a compact unmanaged industrial 5-port Gigabit switch with

wide 12~48VDC input and optional PoE support. Designed with rugged IP40 casing and

operating in extreme temperatures from -40°C to 80°C, it ensures reliable Ethernet

connectivity in harsh industrial environments. Certified with CE and FCC standards, it is

an economical and durable solution for surveillance, automation, and industrial networking

applications.

Features

5 × Gigabit RJ45 ports with auto-MDI/MDI-X

Optional PoE support (IEEE 802.3af/at)

Wide 12~48VDC power input with overload protection

Rugged IP40 aluminum casing, vibration & shock resistant

DIN-Rail & Wall-mount flexible installation

Energy Efficient Ethernet (EEE), MTBF >200,000 hrs

Operating temperature: -40°C ~ 80°C

Technical Indexes

Ethernet
Standards:	IEEE 802.3 Ethernet
	IEEE 802.3u Fast Ethernet
	IEEE 802.3ab Gigabit Ethernet
	IEEE 802.3x Full-Duplex Flow Control
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE 802.3af/at Optional
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer:	1Mbits
Packet Length:	10Kbytes
MAC Address Table:	8K
Switch Fabric:	10Gbps/non-blocking
Exchange Property	Backplane bandwidth: 10Gbps; Packet forwarding rate: 14.88Mpps
Connector:	5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	12~48VDC (Terminal Block)
Power Consumption:	<6W (PoE In Use: <125W)
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
Dimensions (WxDxH):	95 x 70x 29m
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
LED Indicators:
PWR	Power
L/A	Link/Activity
SPD	Data Rate
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55032:2017
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC005G	Mini Industrial 5-Port 10/100/1000T Gigabit Ethernet Switch
LNK-IMC005GP	Mini Industrial 4-Port 10/100/1000T PoE + 1- Uplink Port Ethernet Switch
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately
