Industrial 4-port 10/100/1000Base-T + 1-port 100/1000Base-X SFP Ethernet Switch with 110~230VAC Input
Industrial 4-Port SFP Gigabit Ethernet Switch Overview
The LNK-IMC-A1400G-SFP Series is a Gigabit Ethernet switch that can be mounted on a DIN rail.
It has 4x 10/100/1000Base-T ports and 1x 100/1000Base-X SFP slot for connecting to fibre networks.
It can operate in extreme temperatures (-40°C to 75°C) and complies with EN55022 standards.
It supports single/multi-mode SFP modules and can extend network reach up to 120km
(single-mode full-duplex). Auto-negotiation, half/full-duplex modes and wide-range AC power
(110V-230V) make it stable, reliable and cost-effective for fibre-optic networks..
Industrial 4-Port SFP Gigabit Ethernet Switch Features
-
4 10/100/1000BASE-T RJ45 ports, support auto MDI/MDI-X function
-
1 SFP port, supports 100Base-FX or 1000Base-X dual mode (DIP switch switch)
-
Support flow control function and broadcast storm suppression
-
Support VLAN and QoS functions to optimize network management and data transmission
-
Supports up to 10K byte jumbo frames to improve transmission efficiency
-
110~230VAC terminal block power input, convenient for industrial site access
-
Support DIN rail and wall mounting
-
Industrial-grade wide temperature design: -40°C to 75°C
Industrial 4-Port SFP Gigabit Ethernet Switch Technical Indexes
|
Ethernet
|
|
Standards:
|
IEEE802.3 10Base-T
|
|
IEEE802.3u 100Base-TX/FX
|
|
IEEE802.3ab 1000Base-T
|
|
IEEE802.3z 1000Base-X
|
|
IEEE 802.1d Spanning Tree
|
|
IEEE 802.1q VLAN TAG
|
|
IEEE 802.1p Qos
|
|
Processing Type:
|
Store-and-Forward
|
|
Forward Filter Rate:
|
14,880pps (10Mbps)
|
|
148,800pps (100Mbps)
|
|
1,488,000pps (1000Mbps)
|
|
Packet Buffer Memory:
|
1 Mbit
|
|
Max Packet Length:
|
9K Bytes
|
|
Address Table Size
|
4K MAC Addresses
|
|
Interface
|
|
Connector:
|
4x RJ45 10/100/1000Base-T
|
|
Optical Port:
|
1 x SFP 1000Base-X or 100Base-FX (DIP Switch)
|
|
Electrical and Mechanical
|
|
Input Power:
|
110~230VAC, 6-pin terminal block
|
|
Power Consumption:
|
5W Max.
|
|
LED Indicators:
|
|
PWR:
|
Power Status
|
|
L/A:
|
LINK/Activity
|
|
SYS:
|
System Status
|
|
1000M:
|
1000M Fiber Status
|
|
Dimensions (WxDxH):
|
95 x 95 x 30 mm
|
|
Weight:
|
0.26Kg
|
|
Casing:
|
Aluminum Case
|
|
Mounting Options:
|
DIN-Rail / Wall-mount
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 75°C (-40°F to 167°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF
|
> 200,000 hrs
|
|
Regulatory Approvals
|
|
ISO9001, CE, FCC, RoHS
|
|
EMI:
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024: 2010
|
|
EMS:
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)
|
Industrial 4-Port SFP Gigabit Ethernet Switch Ordering Information
|
Model
|
Description
|
|
LNK-IMC-A1400G-SFP
|
Hardened 4-Port 10/1001000BASE-TX to 100/1000BASE-X SFP Ethernet Switch
|
|
SFP Options
|
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
|
|
► SFP module is to be purchased separately.
|
|
Mounting Options
|
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
|
|
Power Options
|
► 110~230VAC Power Supply. Open Wire for Terminal Block
|

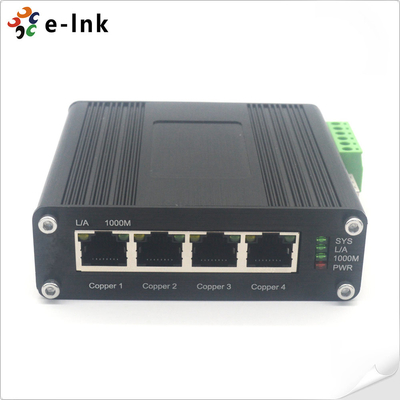

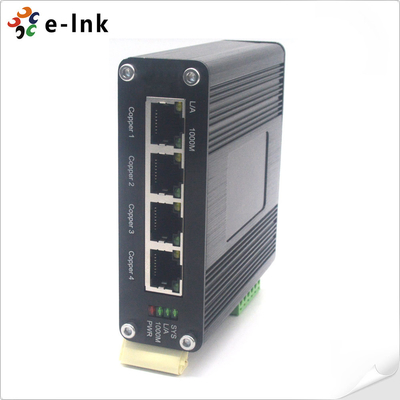

Industrial 4-Port SFP Gigabit Ethernet Switch Switch Panel
