EN50155 Industrial 10/100/1000M/2.5G/5G 30W PoE Injector with M12 connector
Industrial PoE Injector Overview
The LNK-INJ501-30-M12 is a rugged industrial-grade EN50155-compliant PoE injector
specially designed for railway, rolling stock, and vehicle applications.
It provides 1-port 10/100/1000/2.5G/5G Base-T(X) PoE output, supporting IEEE802.3at (PoE+)
with intelligent device detection to ensure that power is only delivered to PoE-compliant devices.

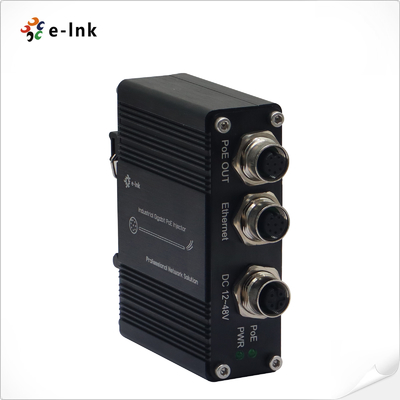

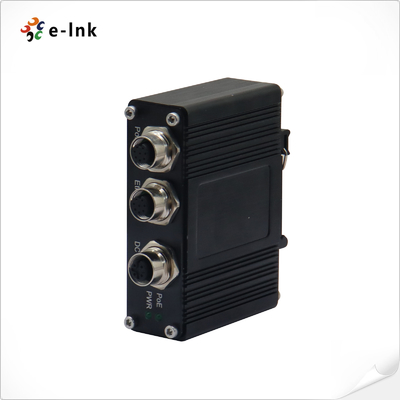

This injector is equipped with M12 circular connectors and offers vibration
and shock resistance in compliance with EN50155 standards. This makes it ideal for use
in high-reliability environments, such as train networks and onboard systems.
The M12 interface guarantees robust and secure connectivity, even under heavy mechanical stress.
The LNK-INJ501-30-M12 supports a wide input voltage range from 12~48V DC,
providing flexible power integration for mobile or remote installations.
Its compact, fanless design makes it an ideal solution for space-constrained
and mission-critical deployments that demand uncompromised performance and durability.
Industrial PoE Injector Features
► 12~48V DC Power Input
► Fully compliant with IEEE802.3af/at
► Support 10/100/1000Base-TX for power and data output

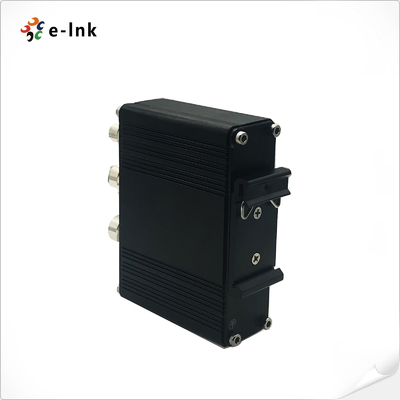

► Support DIN-Rail & Wall-mount installation
► Use Type-A M12 connectors to ensure tight and robust connections
► Small Size: 95 x 70 x 30mm
► Weight: 0.25KG
► Aluminum Case

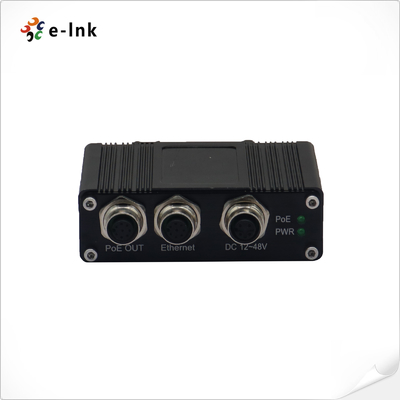

► Extensive LED indicators for PoE diagnostics
► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature
Industrial PoE Injector Technical Indexes
|
Ethernet
|
|
Standards:
|
IEEE802.3af Power over Ethernet
|
|
IEEE802.3at Power over Ethernet
|
|
Processing Type:
|
Forward
|
|
Half-duplex, Full-duplex
|
|
Forward Filter Rate:
|
7,440,000pps (5Gbps)
|
|
Cabling:
|
10/100/1000/2.5G/5G Base-T
|
|
Connector:
|
2x M12 connector (8-pin female M12 A-coding)
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 80°C (-40°F to 176°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF:
|
>200,000hrs
|
|
Electrical and Mechanical
|
|
Input Power:
|
12~48V DC on 4-pin female M12 A-Coding
|
|
Power Consumption:
|
36W Max.
|
|
PoE (Power over Ethernet)
|
|
Standard:
|
IEEE802.3af/at
|
|
Port:
|
M12 connector (8-pin female M12 A-coding)
|
|
Max. Power per Port:
|
30W Max
|
|
LED Indicators:
|
|
Power:
|
Power Status
|
|
PoE:
|
PoE Status
|
|
Dimensions (WxDxH):
|
95 x 70 x 30 mm
|
|
Weight:
|
0.25Kg
|
|
Casing:
|
Aluminum Case
|
|
Mounting Options:
|
DIN-Rail / Wall-mount
|
|
Regulatory Approvals
|
|
ISO9001
|
|
FCC part 15, Class A, EN50155
|
|
EN55022:2006+A1: 2007 Class A
|
|
Surge Protection:
|
|
RJ45: 1KV
|
|
Power: 500V
|
|
ESD: 4KV/8KV
|
Industrial PoE Injector Dimension
Industrial PoE Injector Ordering Information
|
Model
|
Description
|
|
LNK-INJ501-30-M12
|
EN50155 Industrial 1-port 10/100/1000M/2.5G/5G M12 PoE Injector 12~48V DC Power Input
|
|
Mounting Options
|
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
|
|
Power Options
|
► Power Supply is to be purchased separately
|
Industrial PoE Injector Application
