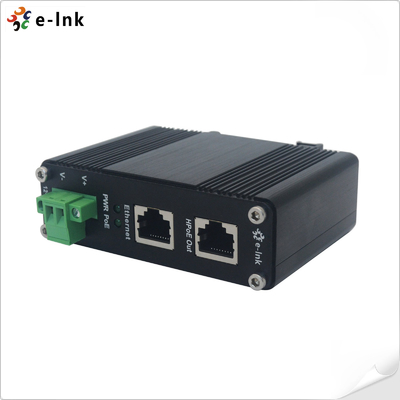

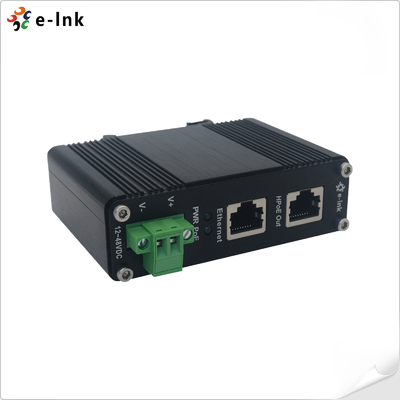

Industrial Gigabit 60W PoE Injector, IEEE 802.3af/at, 12~48V DC Wide Input

Large Image : Industrial Gigabit 60W PoE Injector, IEEE 802.3af/at, 12~48V DC Wide Input

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-INJ301-60

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	Gigabit PoE Injector Standard Export Package
Delivery Time:	3~10 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	2000pcs/month

Contact Now

Detailed Product Description

Product Name:	Industrial PoE Injector	Input Power:	12~48V DC(Terminal Block)
Power Consumption:	65W Max	Weight:	0.25KG
Dienmsion(WxDxH):	95 X 70 X 30 Mm	PoE Standard:	IEEE802.3af/at
Highlight:	48V DC 60W PoE Injector , IEEE 802.3af 60W PoE Injector , IEEE 802.3af PoE Injector

12~48V DC Power Input Industrial Gigabit 60W PoE Injector

Industrial Gigabit PoE Injector Overview

The LNK-INJ301-60 is an industrial-grade, hardened Gigabit PoE injector that supports

IEEE 802.3af/at standards and offers a maximum output power of 60W . Equipped with

auto-sensing 10/100/1000Base-T ports and fully compliant with IEEE 802.3ab , it enables

data and power connections between non-PoE switches and PoE end devices

(such as cameras and wireless access points) within a range of 100 meters .

Supporting a wide-range 12-48VDC power input , it provides a high-availability

solution for mission-critical and harsh environments,

meeting the demands of industrial-grade applications.

Industrial Gigabit PoE Injector Features

► 12~48V DC Power Input

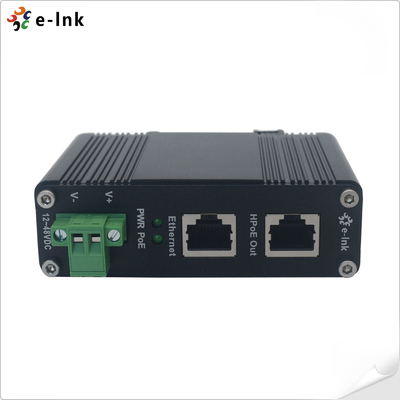

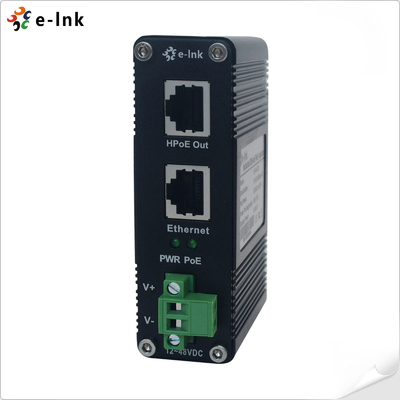

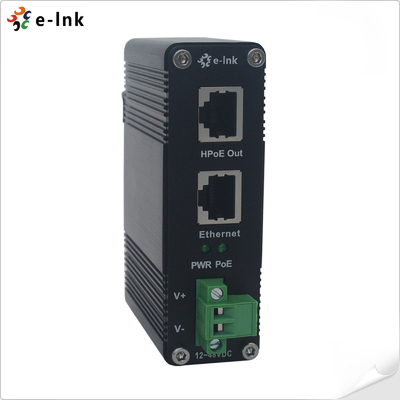

► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power Over Ethernet Output Port (Data + Power)

► Support IEEE802.3at Power over Ethernet Power Sourcing Equipment

► Support 10/100/1000Base-TX

► Extensive LED indicators for PoE diagnostics

► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature

► Small Size 95 x 70 x 30 mm

► Weight 0.25Kg

► Aluminum Alloy Metal Case

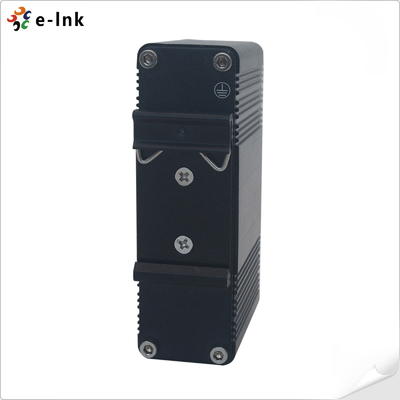

► Support DIN-rail mounting and wall mounting installation

Industrial Gigabit PoE Injector Technical Indexes

Ethernet
Standards:	IEEE802.3af Power over Ethernet
Standards:	IEEE802.3at Power over Ethernet
Processing Type:	Forward
Processing Type:	Half-duplex, Full-duplex
Forward Filter Rate:	1,488,000pps (1000Mbps)
Cabling:	10/100/1000Base-T: Cat5 or above
Maximum Distance:	Cat5 UTP up to 100m
Connector:	2x RJ45
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF:	>200,000hrs
Electrical and Mechanical
Input Power:	12~48VDC (Terminal Block)
Power Consumption:	65W Max.
PoE (Power over Ethernet)
Standard:	IEEE802.3af/at
Port:	RJ45
Power Pin Assignment	4/5(+), 7/8(-)
Max. Power per Port:	60W Max per port (Alternative B Mode)
LED Indicators:
Power:	Power Status
PoE:	PoE Status
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Regulatory Approvals
ISO9001
FCC part 15, Class A
EN55022:2006+A1: 2007 Class A
Surge Protection:
RJ45: 1KV
Power: 500V
ESD: 4KV/8KV

Industrial Gigabit PoE InjectorOrdering Information

Model	Description
LNK-INJ301-60	12~48VDC Power Input Industrial Gigabit 60W PoE Injector
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately

Industrial Gigabit PoE Injector Application
