Fiber Optic HDMI Extender with KVM, RS232 & External Audio Function

Large Image : Fiber Optic HDMI Extender with KVM, RS232 & External Audio Function

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE FCC RoHS
Model Number:	LNK-KVM-HDMI-1D1BA1GO

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	please contact seller
Packaging Details:	HDMI Over Fiber Optic Extender Standard export package
Delivery Time:	3-10 working days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	2000 Per Month

Contact Now

Detailed Product Description

Video Standards::	HDMI V1.3	Power Supply::	DC 12V/1A
Dimension::	16811528mm	Interface::	LC Connector
Power Dissipation::	MAX 6W	Maximum Data Rate::	2.97Gbps

1Ch 1080P HDMI + 1Ch USB KVM + 1Ch RS232 + 1Ch Bidi Stereo Audio + 1Ch GPIO over Fiber Extender

Overview

This fiber optic HDMI extender transmits HDMI signals over a single fiber optic cable, supporting high-definition resolutions up to 1080P. It features KVM control, RS232, GPIO signals, and external audio transmission, ensuring stable, high-quality, and secure long-distance communication. Ideal for applications requiring reliable and interference-free HDMI signal extension.

Features

► Transmits HDMI video signals up to 20km over one fiber optic cable;

► Support video resolution up to 1920*1080P@60Hz;

► Support keyboard and mouse signal transmission;

► Support external stereo audio bi-directional transmission;

► Support RS232 signal unidirectional transmission, baud rate can be up to 460,800bps;

► Support general-purpose input/output (GPIO) signal;

► Support HDMI loop out

► Auto EDID can be disabled via DIP switch

► Compliance with HDMI 1.0 and HDCP 1.2 standard;

► High compatibility, can auto-match source and display device;

► Built-in automatic adjustment system, make the image smooth, clear and stable;

► Built-in ESD protection system;

► Simple to install, plug and play

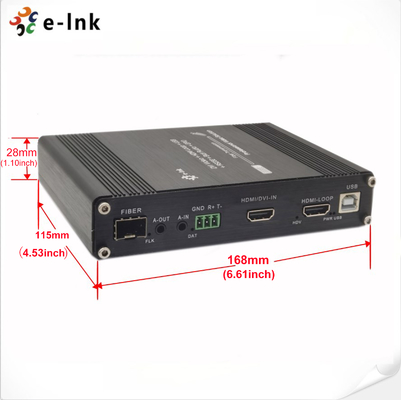

Dimension & Size

Fiber Optic HDMI Extender with KVM, RS232 & External Audio Function 0

Technical Indexes

Parameter		Description
Video	Standards	HDMI V1.3
	Maximum pixel clock	165MHz
	Maximum data rate	2.97Gbps
	Resolution	19201080@60Hz 19201080@50Hz 19201080@30Hz 19201080@25Hz 19201080@24Hz 1080I@60Hz 1080I@50Hz 1280720@60Hz 1280*720@50Hz
	Connector	HDMI
	Impedance	100Ω
Audio	Interface	3.5mm earphone seat
Audio	Signal type	Stereo
K/M	Interface	To PC: MINI-USB To keyboard and mouse: USB-A
GPIO	Interface	Industrial terminal
RS232	Interface	Industrial terminal
	Signal direction	Unidirectional
	Baud rate	Self-adaptive, Max:460,800bps
	Data bits	8
Optical fiber	Interface	LC connector
	Fiber type	Single-mode single fiber
	Wavelength	Single-mode 1310nm
	Interface bandwidth	3Gbps
	Transmission distance	standard 20km
Other	Power supply	The power adapter: DC 12V/1A
	Power dissipation	MAX 6W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension (LxWxH)	16811528mm
	The warranty	1-year warranty

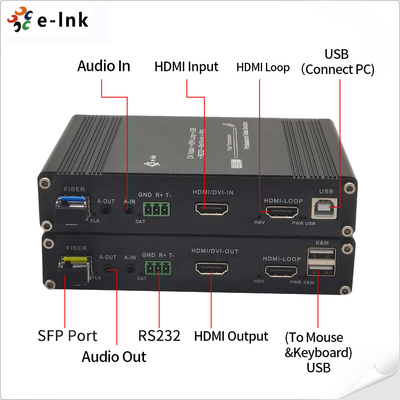

Panel & Interface

Fiber Optic HDMI Extender with KVM, RS232 & External Audio Function 1

Ordering Information

Model	Description
LNK-KVM-HDMI-1D1BA1GO	1Ch 1080P HDMI + 1Ch USB KVM + 1Ch RS232 + 1Ch Bidi Stereo Audio + 1Ch GPIO over Fiber Extender, HDMI Loop Out, SMF, 20KM
LNK-HDMI-1D1BA	1Ch 1080P HDMI + 1Ch RS232 + 1Ch Bidi Stereo Audio over Fiber Extender, HDMI Loop Out, SMF, 20KM
