Mini Industrial 10/100/1000Base-T to 100/1000Base-X SFP Ethernet Media Converter
Overview

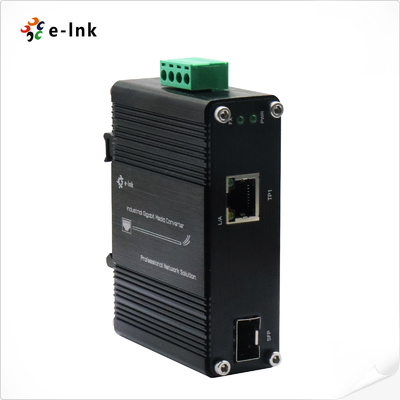

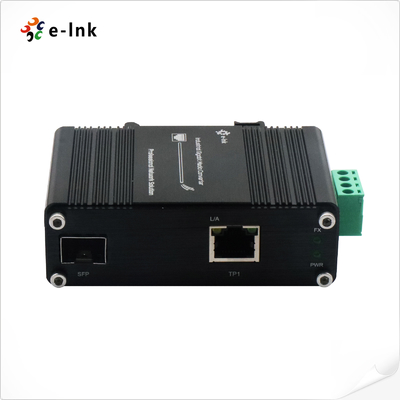

The LNK-IMC3012-SFP is an industrial-grade DIN rail media converter designed for reliable network
connectivity in harsh environments. This hardened device provides seamless conversion between
10/100/1000Base-T copper Ethernet and 100/1000Base-X fiber networks through its flexible SFP slot,
supporting various single-mode or multi-mode SFP modules (single/dual-core) to meet diverse
application requirements.
Built for industrial applications, the converter features:
- Extended operating temperature range** (-40°C to +75°C)
- Ruggedized design** meeting **EN55022 EMC standards**
- Dual-mode Ethernet port** supporting both **half-duplex and full-duplex** operation
- Hot-swappable SFP compatibility** for flexible fiber connectivity

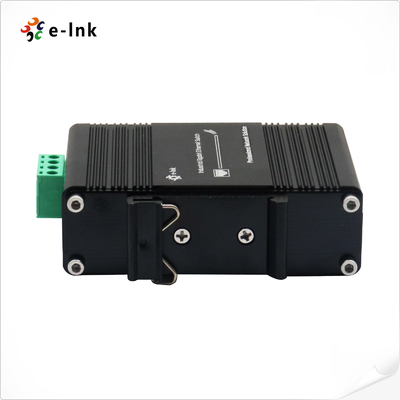

- Compact DIN-rail mounting** for easy installation in control cabinets
With its robust construction and versatile connectivity options, the LNK-IMC3012-SFP is ideal for
industrial automation, transportation systems, and utility networks requiring reliable media conversion
in demanding environments. The device ensures stable performance while providing the flexibility to
adapt to different fiber infrastructure needs.
Features
► 12~48VDC Terminal Block Power Input
► Supports DIN-Rail & Wall-mount installation
► Environmentally hardened -40°C to 75°C(-40°F to 167°F) operating temperature
► Supports Full/Half-duplex, Auto-negotiation
► IEEE 802.3az Energy Efficient Ethernet (EEE) compliant
► Extensive LED indicators for network diagnostics
► 1-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
► 1 SFP Port,100Base-FX or 1000Base-X dual mode (auto detection)

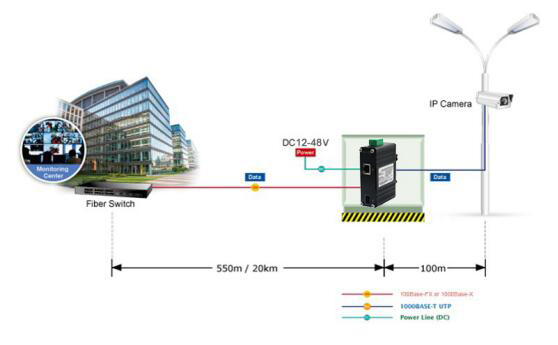

Application
Technical Indexes
| Ethernet |
| Standards: |
IEEE802.3 10Base-T |
| IEEE802.3u 100Base-TX/FX |
| IEEE802.3ab 1000Base-T |
| IEEE802.3z 1000Base-X |
| IEEE 802.3az Energy Efficient Ethernet (EEE) |
| Processing Type: |
Store-and-Forward |
| Forward Filter Rate: |
14,880pps (10Mbps) |
| 148,800pps (100Mbps) |
| 1,488,000pps (1000Mbps) |
| Packet Buffer Memory: |
1 Mbit |
| Max Packet Length: |
9K Bytes |
| Address Table Size |
2K MAC Addresses |
| Interface |
| Connector: |
1x RJ45 |
| Optical Port: |
1 x SFP 1000Base-X or 100Base-FX (auto detection) |
| Electrical and Mechanical |
| Input Power: |
12~48VDC, 4-pin terminal block |
| Power Consumption: |
3W Max. |
| LED Indicators: |
| PWR: |
Power Status |
| L/A: |
Data LINK Status |
| SPD: |
Ethernet Status |
| 100M/1000M: |
Fiber LINK Status |
| Dimensions (WxDxH): |
95 x 70 x 30 mm |
| Weight: |
0.25Kg |
| Casing: |
Aluminum Case |
| Mounting Options: |
DIN-Rail / Wall-mount |
| Environmental |
| Operating Temperature: |
-40°C to 75°C (-40°F to 167°F) |
| Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: |
5% to 95% non-condensing |
| MTBF |
> 200,000 hrs |
| Regulatory Approvals |
| ISO9001, CE, FCC, RoHS |
|
EMI:
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024: 2010
|
|
EMS:
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)
|
Ordering Information
| Model |
Description |
| LNK-IMC3012-SFP |
Hardened 10/1001000BASE-TX to 100/1000BASE-X SFP Ethernet Media Converter |
| SFP Options |
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| ► SFP module is to be purchased separately. |
| Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options |
► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |
