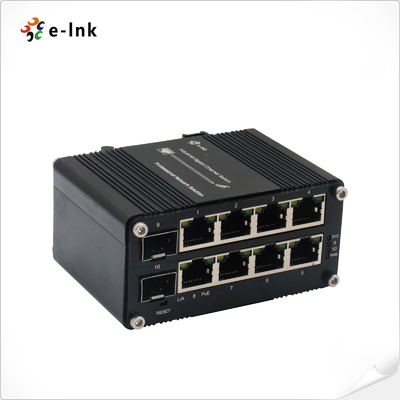

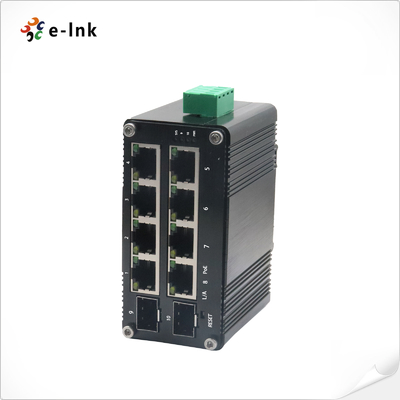

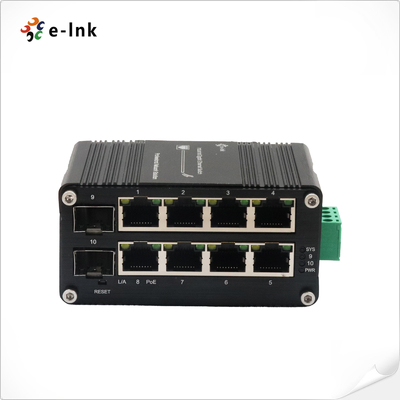

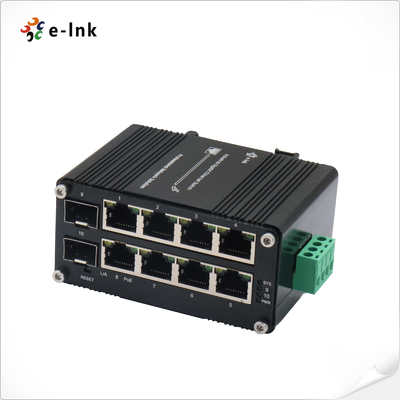

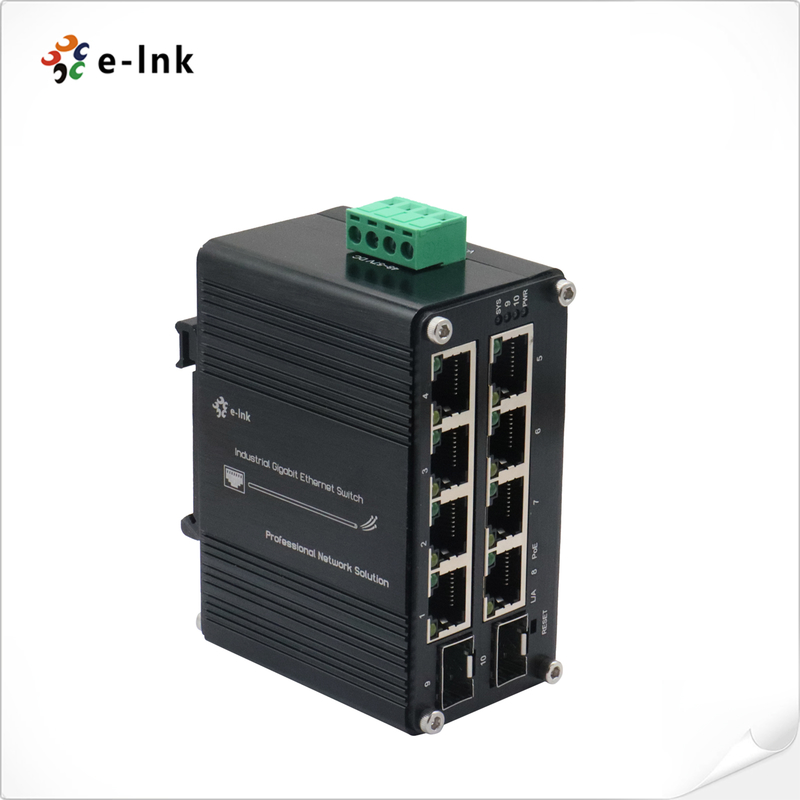

Mini Industrial Managed 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Ethernet Switch
Overview
This Managed Industrial Ethernet Switch features 8 Gigabit RJ45 ports (10/100/1000Base-TX) with
PoE+ support and 2 SFP fiber ports (100/1000Base-X) for long-distance uplinks. It delivers both power
and data through RJ-45 cables to various powered devices such as IP cameras, wireless access points,
and VoIP phones, eliminating the need for separate power sources.
The SFP ports support single-mode and multi-mode fiber, enabling flexible deployment across extended
networks. With a rugged, industrial-grade design, advanced management features, and easy installation,
this switch is ideal for remote sites, security systems, and harsh environments requiring reliable
connectivity and power distribution.
Features
► 8x10/100/1000Base-TX + 2x100/1000Base-X SFP
► 10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Supports WEB Management
► Supports IEEE 802.3at PoE+ (30W per port)
► Supports 802.3x Flow Control
► Support IEEE802.3/802.3u/802.3ab/802.3z/802.3x store and forward mode
► Support IEEE 802.3D/W/S standard STP/RSTP protocol
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► Redundant Power Inputs
► Supports DIN-Rail installation
► -40°C to 80°C (-40°F to 176°F) operating temperature.
Technical Indexes
| Ethernet |
| Standards: |
IEEE802.3 10BASE-T |
| IEEE802.3u 100BASE-TX/FX |
| IEEE802.3ab 1000BASE-T |
| IEEE802.3z 1000BASE-X |
| IEEE 802.3az Energy Efficient Ethernet (EEE) |
| IEEE802.3af Power over Ethernet |
| IEEE802.3at Power over Ethernet |
| Forward & Filtering Rate: |
14,880pps (10Mbps) |
| 148,800pps (100Mbps) |
| 1,488,000pps (1000Mbps) |
| Backplane bandwidth |
20Gbps |
| Packet Buffer Memory: |
9216 bits |
| Processing Type: |
Store-and-Forward |
| Max Packet Length: |
9K Bytes Jumbo Frame |
| Address Table Size: |
4K MAC Addresses |
| Interface |
| Connector: |
8 x RJ45 |
| Optical Port: |
2 x 100/1000Base-X SFP |
| PoE (Power over Ethernet) |
| Standard: |
IEEE 802.3at Power over Ethernet Plus |
| IEEE 802.3af Power over Ethernet |
| Port: |
RJ45 |
| Power Pin Assignment |
4/5(+), 7/8(-) |
| PoE Budget: |
Up to 240-watt PoE budget |
| Environmental |
| Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: |
5% to 95% non-condensing |
| MTBF |
> 200,000 hrs |
| Electrical and Mechanical |
| Input Power: |
48~57VDC, Redundant Power (4-pin Terminal Block) |
| Power Consumption: |
5W Max.(PoE in Use<240W) |
| Protection: |
| Power Input Overload: |
Automatic Resettable |
| Reverse Polarity: |
Present |
| LED Indicators: |
| PWR: |
Power Status |
| Ethernet (Per Port): |
Link/Activity |
| PoE: |
PoE Status |
| Fiber: |
Gigabit SFP Port: F9~F10 |
| Dimensions (WxDxH): |
95 x 63 x 46 mm |
| Weight: |
300g |
| Casing: |
Aluminum Case |
| Mounting Options: |
DIN-Rail mount |
| Software Features |
| Redundancy Protocols |
Support STP/RSTP |
| Multicast Support |
Support IGMP Snooping V1/V2/V3 |
| VLAN |
Support IEEE 802.1Q 4K VLAN |
| QOS |
Support Port, 1Q, ACL, DSCP, CVLAN, SVLAN, DA, SA, Port Priority, Queue Weight |
| Diagnostic Maintenance |
Support port mirroring, Syslog, Ping |
| Management Function |
WEB |
| Security |
Broadcast/Multicast Storm Protection, MAC filtering, MAC Constraint |
| Regulatory Approvals |
| ISO9001, CE, RoHS, FCC |
| EN55022:2010+AC: 2011, Class A |
| EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
| EN 61000-3-3: 2013 |
| EN55024:2010 |
| IEC 61000-4-2: 2008 (ESD) |
| IEC 61000-4-3: 2010 (RS) |
| IEC 61000-4-4: 2012 (EFT) |
| IEC 61000-4-5: 2014 (Surge) |
| IEC 61000-4-6: 2013 (CS) |
| IEC 61000-4-8: 2009 (PFMF) |
Ordering Information
| Model |
Description |
| LNK-IMC208SGP-SFP |
Mini Industrial Managed 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Ethernet Switch |
| SFP Options |
► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. |
| Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options |
► 240W/5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |

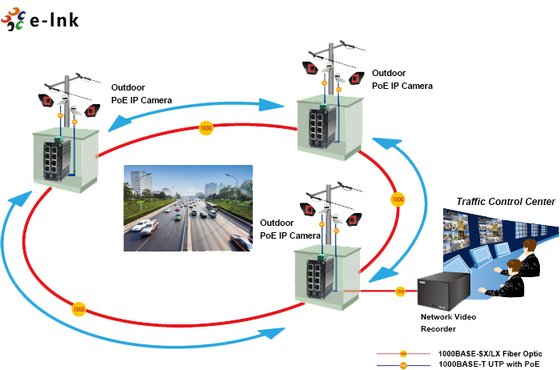

Application
