PoE Powered Media Converter Gigabit Ethernet SFP Fiber Ultra Compact Design

Mini 10/100/1000BASE-T to 100/1000BASE-X SFP Fiber Media Converter with PoE Powered Function

Mini Fiber Media Converter Overview

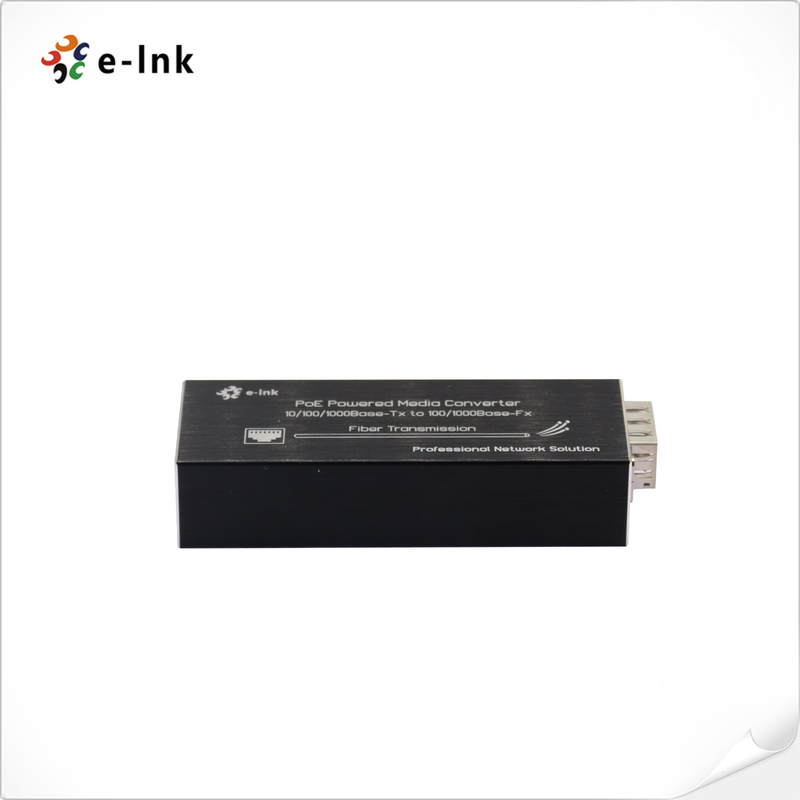

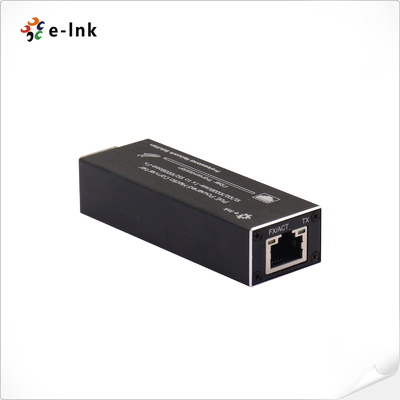

The E-link LNK-M3011SFP-PD represents an innovative class of compact fiber media converters that integrate Power over Ethernet Powered Device (PoE-PD) technology for maximum deployment flexibility. This micro-sized unit efficiently bridges copper and fiber networks, supporting 10/100/1000BASE-T Ethernet to 100/1000BASE-X SFP fiber optic conversion while drawing operational power directly from IEEE 802.3af/at/bt compliant Power Sourcing Equipment.

Unlike conventional media converters requiring separate DC power adapters, this advanced converter features dual power input systems—accepting both standard 48V~54V DC in-line PoE power and optional 5~15V DC external input. This redundant power design significantly enhances system reliability and operational uptime by providing backup power options for mission-critical network segments.

The converter's versatile operation modes allow network engineers to deploy it as either a PoE-powered media converter in environments without local power availability or as a standard fiber media converter using the low-voltage DC input. Its ultra-compact form factor makes it particularly valuable for fiber-to-workstation applications, mobile deployments, and temporary installations where space constraints and power accessibility present significant challenges for traditional networking equipment.

Mini Fiber Media Converter Features

• Multi-Standard PoE Power Input
  Compatible with IEEE 802.3af/at/bt Power over Ethernet standards accepting 48V-54V DC in-line power from compatible PSE equipment eliminating separate power wiring

• Simplified Deployment Operation
  Enables quick installation with intuitive plug-and-play functionality requiring no software configuration or technical expertise for immediate network integration

• Versatile Network Media Conversion
  Provides seamless bidirectional conversion between 10/100/1000BASE-T copper Ethernet and 100/1000BASE-X SFP fiber optic interfaces supporting auto-negotiation

• Intelligent SFP Interface Technology
  Features auto-detecting SFP port that intelligently recognizes both 100Base-FX and 1000Base-X transceivers ensuring optimal performance with various optical modules

• Dual Portable Power Options
  Supports flexible USB-powered operation for mobile applications alongside 5-15V wide-range DC input accommodating diverse power source availability

• Space-Optimized Mechanical Design
  Engineered with ultra-compact form factor weighing under 2 ounces for discreet installation in space-constrained environments and portable networking kits

• Enhanced Data Frame Support
  Implements 9KB jumbo frame capability optimizing bandwidth efficiency for data-intensive applications and reducing protocol overhead in Gigabit networks

• Comprehensive Fiber Connectivity
  Offers flexible SFP module options including single-mode dual fiber multi-mode dual fiber and single-fiber bidirectional configurations for various transmission needs

• Advanced Thermal Management
  Constructed with lightweight aluminum housing providing superior heat dissipation properties while minimizing overall weight to reduce shipping costs

• Auto-Negotiation Ethernet Ports
  Features intelligent copper interfaces that automatically detect and configure speed and duplex settings ensuring optimal connectivity with all network devices

• Low Power Consumption Design
  Incorporates energy-efficient circuitry minimizing operational power requirements while maintaining full Gigabit performance across all connected interfaces

Mini Fiber Media Converter Technical Indexes

Mini Fiber Media Converter Ordering Information
