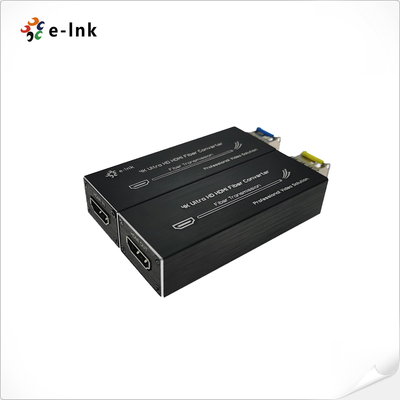

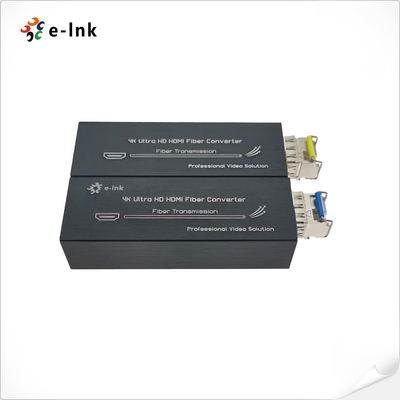

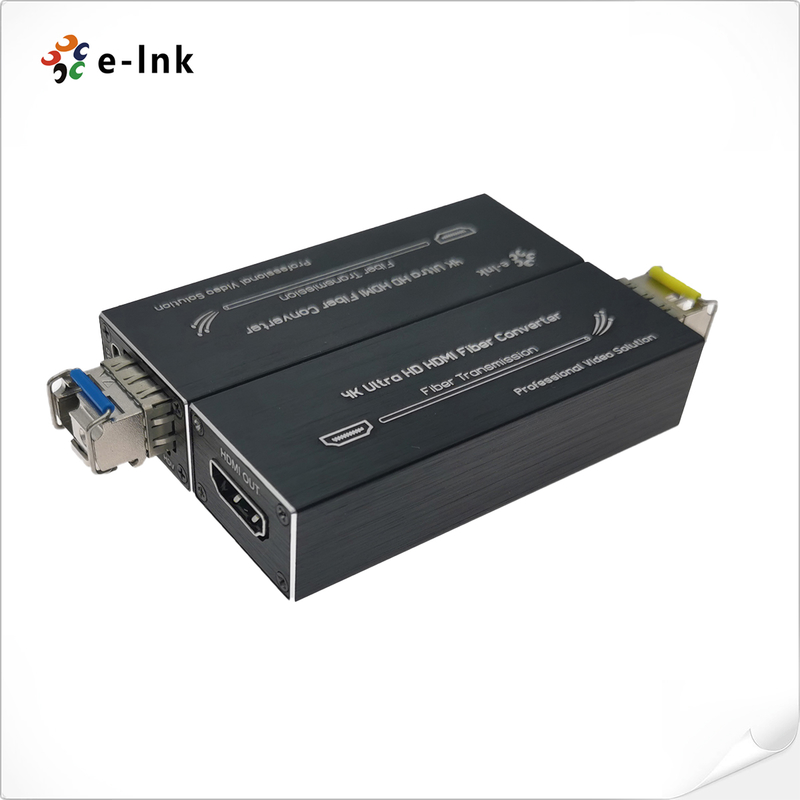

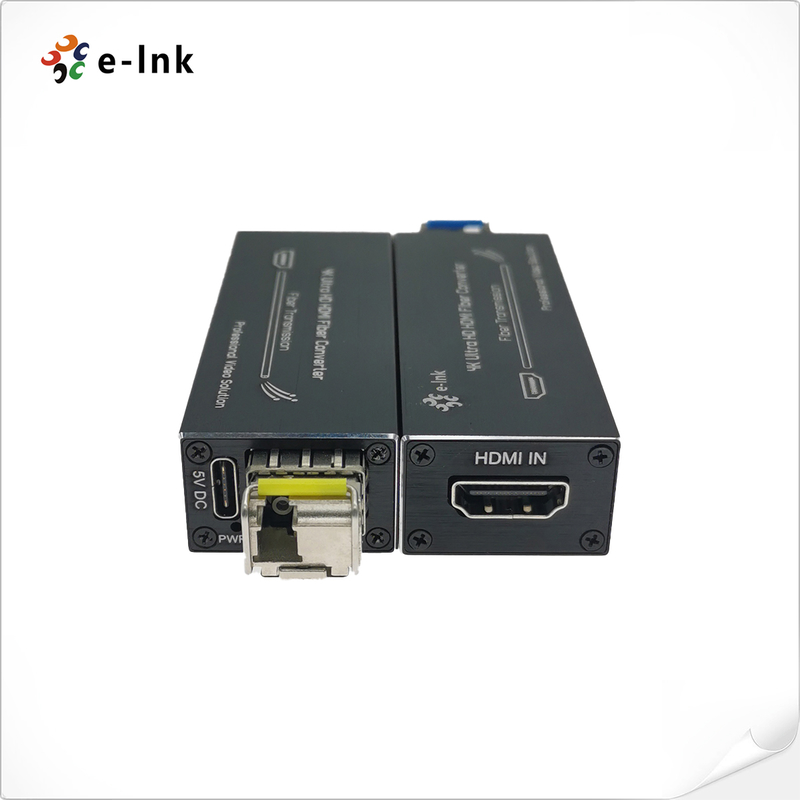

Micro Mini 4K HDMI Fiber Extender
Mini 4K HDMI Fiber Extender Overview
The 4K HDMI Fiber Extender enables uncompressed, lossless HDMI 1.4a signal transmission over optical fiber
up to 80km, supporting ultra-high resolutions up to 4Kx2K. The transmitter converts HDMI to a 10Gbps serial data
stream for fiber transmission, while the receiver restores it back to HDMI. RoHS compliant and lead-free,
this extender ensures stable, interference-free performance, making it ideal for large displays,
conference systems, and home entertainment.
Mini 4K HDMI Fiber Extender Features
-
HDMI 1.4a & HDCP 1.2 Compliance:
Fully compatible with HDMI 1.4a and HDCP 1.2 standards for high-definition content protection and transmission.
-
Zero-Compression Signal Integrity:
Delivers uncompressed, lossless video and audio with zero latency for pristine signal quality.
-
Extended Display Channel Support:
Supports DDC, CEC, and HPD signals for seamless display detection and control.
-
High-Speed Data Transmission:
Supports data rates up to 10.3 Gbps for ultra-high-definition video streaming.
-
Long-Distance Fiber Optic Transmission:
Extends HDMI signals up to 80 km over fiber optic cable.
-
4K Ultra HD Resolution:
Supports resolutions up to 4K×2K@30Hz for exceptional visual clarity.
-
USB-C Power Delivery:
Features USB-C connector for convenient and universal power input.
-
Hot-Pluggable & Noise Resistant:
Supports hot-plugging and provides high resistance to EMI/RFI interference.
-
Compact & User-Friendly Design:
Miniature form factor enables easy installation and integration in space-limited environments.
-
Wide Operating Temperature Range:
Operates reliably in temperatures from -10°C to 60°C.

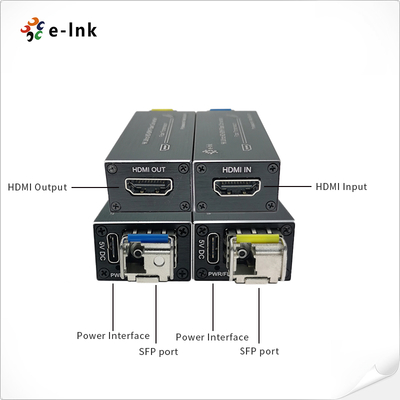

Mini 4K HDMI Fiber Extender Technical Indexes
| Type of Extender |
Fiber Transmitter for HDMI signal over Optical Fiber Cable |
| Input Signals |
HDMI |
| Connector |
Female HDMI type A |
| Signal Support |
HDMI 1.4a HDMI format standard and HDCP compliant |
| Video Support |
1920x1200 / 1080p@60Hz, up to 4K*2K@30Hz |
| Audio Support |
Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH) |
| Chroma Subsampling |
Color space 420, 400 |
| Dynamic EDID |
Plug & Play, no need to learn |
| Fiber Connector |
SFP/LC |
| Bandwidth |
10.3Gbps |
| Transmission Distance |
300m (Over OM3 Fiber) |
| Up to 80km (Over Single-mode Fiber) |
| Operating Temperature |
-10 to + 60°C |
| Storage Temperature |
-20 to + 85°C |
| Humidity |
5% to 90% RH (non-condensing) |
| MTBF |
100,000 hours |
| Dimension (WxDxH) |
3.07 x 1.06 x 0.69in (78x27x17mm) |
| Weight |
50g / 0.11 lb |
| Power Supply |
5V DC (USB-C) |
| Power dissipation |
<5W |
| Safety Approvals |
CE, FCC, RoHS |
Mini 4K HDMI Fiber Extender Ordering Information
| Model |
Description |
|
| LNK-MH4K-MM |
Micro Mini HDMI Fiber Extender: 1-Ch HDMI 1.4a Video Signal(4K*2K), OM3 Multi-mode Dual Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, USB Power Input |
| LNK-MH4K-S20 |
Micro Mini HDMI Extender: 1-Ch HDMI 1.4a Video Signal(4K*2K), Single-mode Single Fiber, 20km, LC, including 1 transmitter & 1 receiver, USB Power Input |
| LNK-MH4K-S40 |
Micro Mini HDMI Extender: 1-Ch HDMI 1.4a Video Signal(4K*2K), Single-mode Single Fiber, 40km, LC, including 1 transmitter & 1 receiver, USB Power Input |
| LNK-MH4K-80 |
Micro Mini HDMI Extender: 1-Ch HDMI 1.4a Video Signal(4K*2K), Single-mode Dual Fiber, 80km, LC, including 1 transmitter & 1 receiver, USB Power Input |
| LNK-MH4K-S80 |
Micro Mini HDMI Extender: 1-Ch HDMI 1.4a Video Signal(4K*2K), Single-mode Single Fiber, 80km, LC, including 1 transmitter & 1 receiver, USB Power Input |

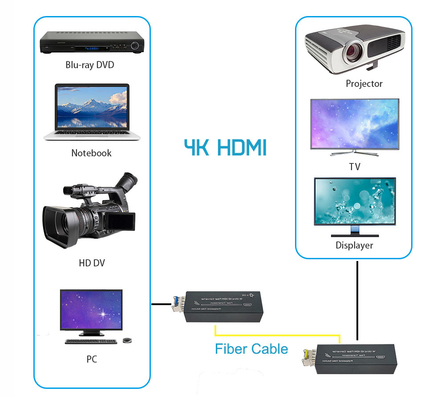

Mini 4K HDMI Fiber Extender Application
