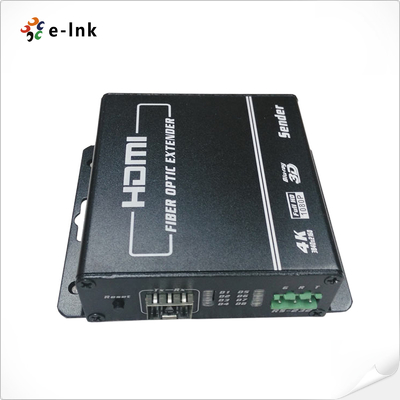

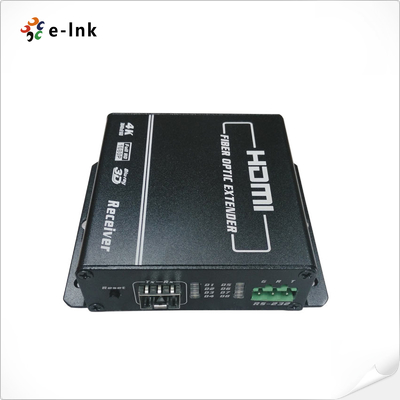

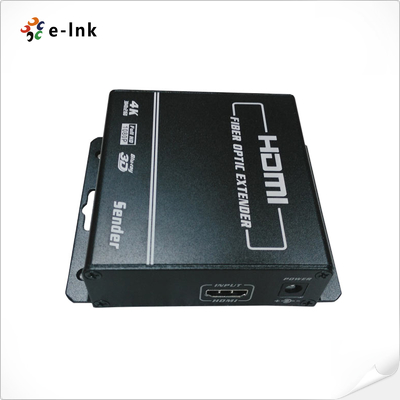

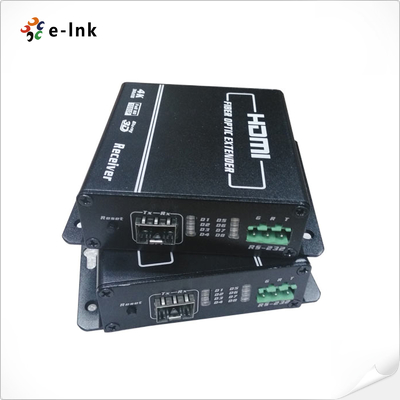

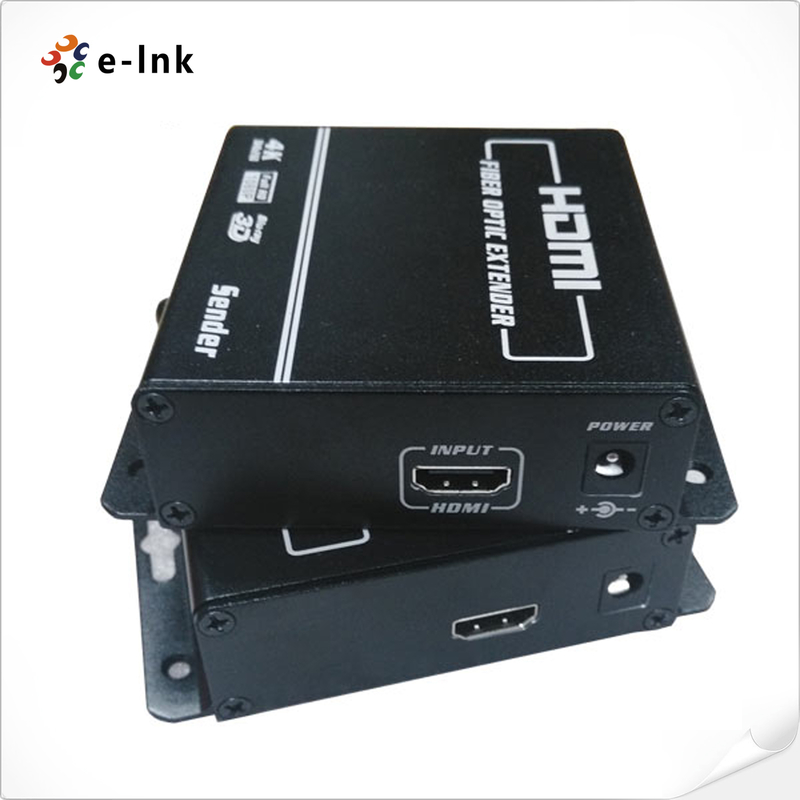

HDMI Fiber Optic Extender with 4K Resolution Support, Single Cable Design

Large Image : HDMI Fiber Optic Extender with 4K Resolution Support, Single Cable Design

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE, RoHS, FCC
Model Number:	LNK-H4K100

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	To be negotiated
Packaging Details:	Standard Export Package
Delivery Time:	5-12working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal, Credit Card
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Standards:	HDMI 1.4; HDCP 1.2	Power Dissipation:	Max 4W
Dimension (LxWxH):	1048928mm	Optical Fiber Interface:	SFP Model – LC Connector
Resolution Range:	Up To 3840*2160@30Hz	Power Supply:	The Power Adapter/DC 5V/2A
Highlight:	4K HDMI Fiber Optic Extender , 4K HDMI Fiber Optic Extender , Single Cable HDMI Fiber Optic Extender

4K HDMI Fiber Optic Extender

Overview

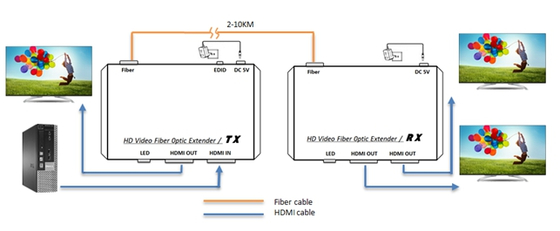

This fiber optic HDMI extender delivers ultra-long-distance transmission of HDMI and 3D signals over a single fiber optic cable. Supporting resolutions up to 3840×2160@30Hz (4K), it ensures stable performance and enhanced security, making it ideal for applications requiring high-quality video over extended distances in demanding environments.

Features

► Transmits HDMI video signals up to 2km-60km over one fiber optic cable;

► Support video resolution up to 3840*2160@30Hz, 3D signal;

► Compliance with HMDI 1.4 & HDCP 1.2 standard;

► High compatibility, can auto-match source and display device;

► Built-in automatic adjustment system, make the image smooth, clear and stable;

► Built-in ESD protection system;

► Simple to install, plug and play;

Technical Indexes

Parameter		Description
Video	Standards	HDMI 1.4; HDCP 1.2
	Maximum pixel clock	340MHz
	Maximum data rate	10.2Gbps
	Resolution range	Up to 3840*2160@30Hz
	Connector	Female HDMI type A
	Impedance	100Ω
Optical fiber	Interface	SFP model – LC connector
	Fiber type	Multi-mode / single-mode (optional)
	Wavelength	Multi-mode 850nm / Single-mode 1310nm(optional)
	Interface bandwidth	10Gbps
	Transmission distance	OM3 multi-mode fiber: maximum 300m, Single-mode fiber: standard 2km；maximum 60km
Other	Power supply	The power adapter: DC 5V/2A
	Power dissipation	Max 4W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension	1048928mm

Ordering Information

Item	Description
Item	Description
LNK-H4K100	4K (3840*2160/30P) HDMI Fiber Extender, SFP Port, Multimode, LC, 300m, including 1 transmitter & 1 receiver, used by pairs
LNK-H4K100S-10	4K (3840*2160/30P) HDMI Fiber Extender, SFP Port, Single mode, LC, 10km, including 1 transmitter & 1 receiver, used by pairs
LNK-H4K100S-40	4K (3840*2160/30P) HDMI Fiber Extender, SFP Port, Single mode, LC, 40km, including 1 transmitter & 1 receiver, used by pairs
