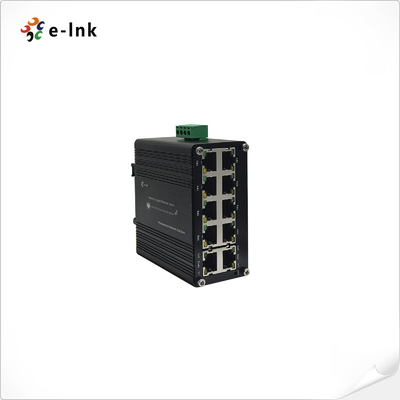

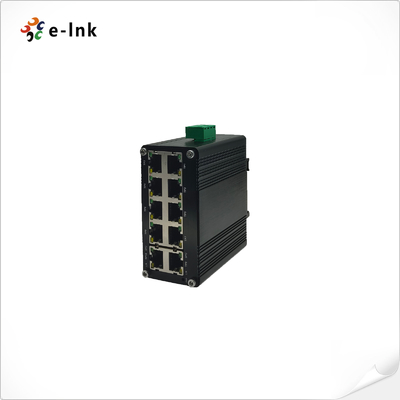

Mini Industrial Unmanaged 10-Port Gigabit Ethernet Switch, 12~48VDC Power Input

Large Image : Mini Industrial Unmanaged 10-Port Gigabit Ethernet Switch, 12~48VDC Power Input

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-IMC010G

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	US$29.9/pc
Packaging Details:	Mini Industrial PoE Switch Standard Export Package
Delivery Time:	2~7 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	5000pcs per month

Contact Now

Detailed Product Description

Product Name:	Industrial 10 Port PoE Switch	Input Power:	12~48VDC Redundant Power With Polarity Reverses Protection Function
Dimensions (WxDxH):	95 X 88 X 46mm	Weight:	300g
Mounting Options:	DIN-Rail Mount/Wall-Mount	Power Consumption::	<10W
Highlight:	12~48VDC Unmanaged Industrial Ethernet Switch , Mini Unmanaged Industrial Ethernet Switch , 10-Port Gigabit Ethernet Switch

Mini Industrial 10-Port 10/100/1000T Compact Ethernet Switch

Overview

The Mini Industrial 10-Port Gigabit Ethernet Switch offers 10/100/1000T ports with 12~48VDC wide-range power input. Designed to meet strict industrial standards, it ensures reliable performance under vibration, shock, and extreme temperatures. CE & FCC certified, with 100% burn-in testing for quality assurance, this unmanaged switch delivers a cost-effective and durable solution for harsh industrial environments.

Features

► 10-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function

► Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex

► 12~48VDC wide range power input

► Supports 802.3x Flow control

► Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)

► Supports DIN-Rail and Wall-mount installation

► Industry standard design, dustproof and close design IP40, rugged high-strength metal case

► -40°C to 80°C (-40°F to 176°F) operating temperature

Technical Indexes

Ethernet
Standards:	IEEE 802.3 Ethernet
	IEEE 802.3u Fast Ethernet
	IEEE 802.3ab Gigabit Ethernet
	IEEE 802.3x Full-Duplex Flow Control
	IEEE 802.3az Energy Efficient Ethernet (EEE)
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer:	2Mbits
Packet Length:	9216bytes
MAC Address Table:	4K entries
Switch Fabric:	20Gbps/non-blocking
Switch Throughput (packet per second)	14.88Mpps@64bytes
Interface
Connector:	10 10/100/1000BASET RJ45 auto-MDI/MDI-X ports
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	12~48VDC Redundant power with polarity reverses protection function
Power Consumption:	<10W
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present

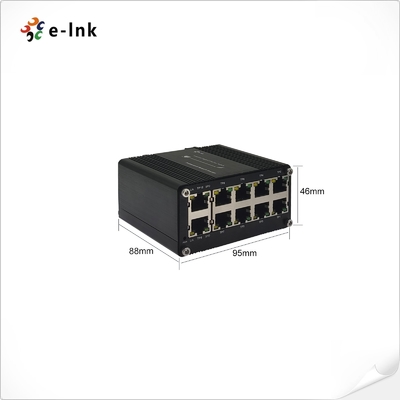

Dimensions (WxDxH):	95 x 88 x 46mm
Weight:	300g
Casing:	Aluminum Case
Mounting Options:	DIN-Rail mount/Wall-Mount

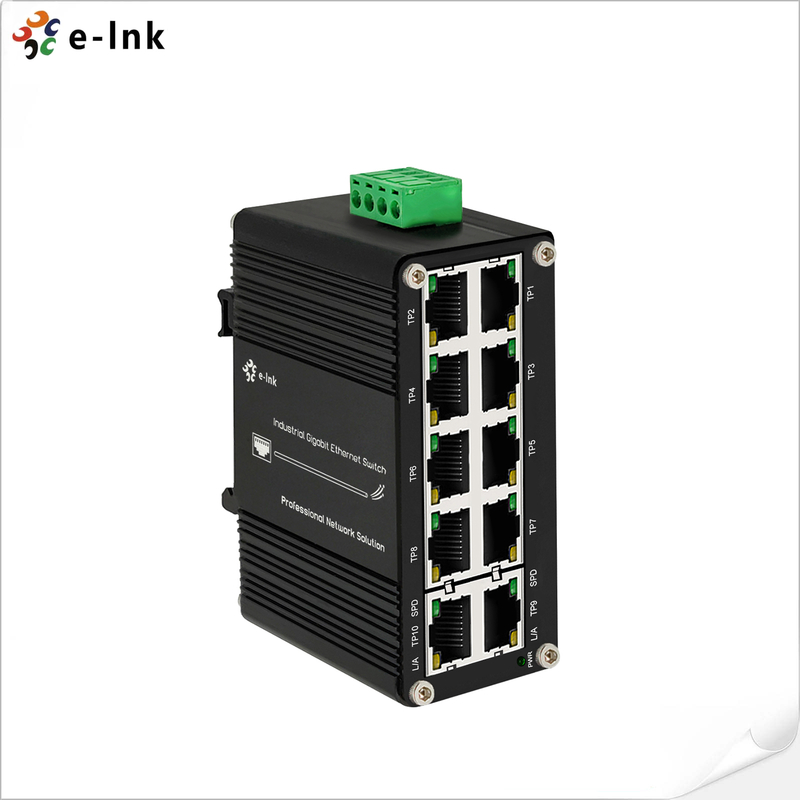

LED Indicators:
PWR	Power
L/A	Link/Activity
SPD	Data Rate
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55032:2017
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC010G	Mini Industrial 10-Port 10/100/1000T Gigabit Ethernet Switch
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately
