Managed Industrial 5-Port Gigabit Ethernet Switch, Wide 12–48V DC Input

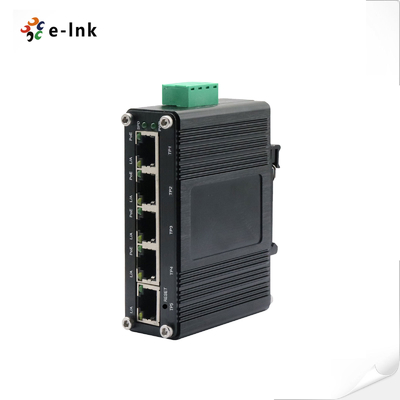

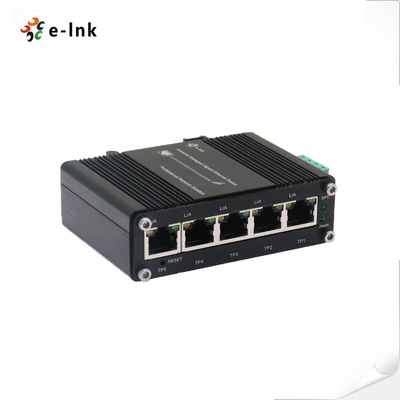

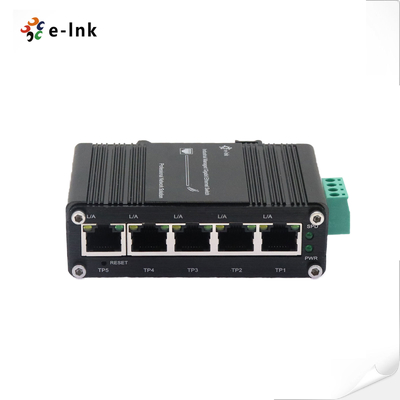

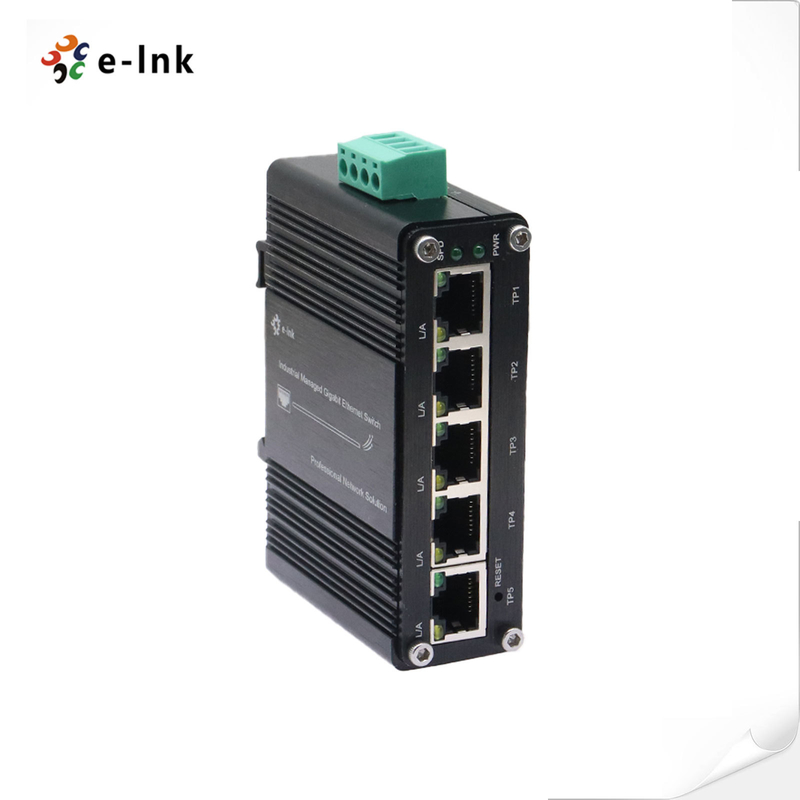

Large Image : Managed Industrial 5-Port Gigabit Ethernet Switch, Wide 12–48V DC Input

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE/FCC/Rohs/ISO9001
Model Number:	LNK-IMC005GM

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	US$29.9/pc
Packaging Details:	Managed Industrial Gigabit PoE Switch Standard export package
Delivery Time:	2-7 days
Payment Terms:	T/T, L/C, Western Union, MoneyGram
Supply Ability:	1000pcs/Month

Contact Now

Detailed Product Description

Input Power::	12~48V DC (Terminal Block)	Power Consumption::	<6W
Size:	95 X 70 X 29 Mm	Mounting Options:	DIN-Rail / Wall-mount
Weight::	0.25Kg	Casing:	Aluminum Case
Highlight:	Managed Industrial Ethernet Switch , 12–48V DC Industrial Ethernet Switch

Mini Industrial Managed 5-Port Gigabit Ethernet Switch

Overview

The LNK-IMC005GM is a Mini Industrial Managed 5-Port Gigabit Ethernet Switch designed for reliable operation in harsh industrial environments. Featuring 5 x 10/100/1000BASE-T ports and supporting a wide 12~48V DC power input, it ensures stable performance under vibration, shock, and extreme temperatures.

Built to industrial-grade standards, the switch complies with CE and FCC certifications and has passed a 100% burn-in test for guaranteed durability. Its rugged IP40-rated metal housing with DIN-rail or wall mounting options offers flexibility for deployment in space-constrained environments.

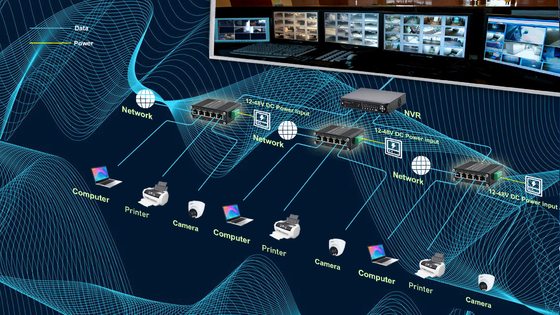

With an extended operating temperature range of -40°C to 80°C and a fanless design, the LNK-IMC005GM delivers silent, reliable performance in demanding applications such as industrial automation, intelligent transportation systems (ITS), utilities, and military projects—where standard commercial products cannot perform.

Features

► 5-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function

► Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex

► 12~48V DC wide range power input

► Supports 802.3x Flow control

► Supports WEB Management

► Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)

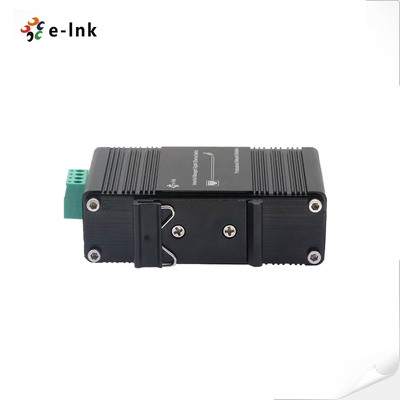

► Supports DIN-Rail and Wall-mount installation

► Industry standard design, dustproof and close design IP40, rugged high-strength metal case

► -40°C to 80°C (-40°F to 176°F) operating temperature

Technical Indexes

Ethernet
Standards:	IEEE 802.3 Ethernet
	IEEE 802.3u Fast Ethernet
	IEEE 802.3ab Gigabit Ethernet
	IEEE 802.3x Full-Duplex Flow Control
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE 802.3af/at Optional
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer:	1Mbits
Packet Length:	10Kbytes
MAC Address Table:	8K
Switch Fabric:	10Gbps/non-blocking
Exchange Property	Backplane bandwidth: 10Gbps; Packet forwarding rate: 14.88Mpps
Connector:	5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	12~48V DC (Terminal Block)
Power Consumption:	<6W
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
Reset Button	Support
Dimensions (WxDxH):	95 x 70 x 29 mm
Weight:	0.25KG
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
LED Indicators:
PWR	Power
L/A	Link/Activity
SPD	Data Rate
WEB Management Features
System Settings	Device Info; Account Settings; Restoring; Reboot; Upgrade
Port Management	Port Settings; Port Mirroring; Port Statistics; Rate Limit
VLAN Settings	802.1Q VLAN; PVID Settings; Hybrid Port
QOS Settings	Priority Selection; Scheduling Mode
Loop Detection	Support
Saving Settings	Get Configuration; Restore Configuration; Saving Configuration
Default IP	192.168.40.253
Default User Name	admin
Default Password	admin
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55032:2017
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)

Order Information

Model	Description
LNK-IMC005GM	Mini Industrial Managed 5-Port 10/100/1000T Gigabit Ethernet Switch
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately ► Recommend MeanWell MDR-20-24
