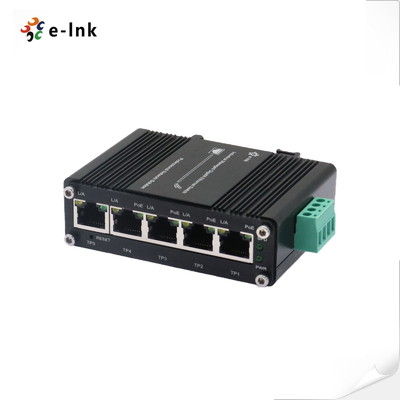

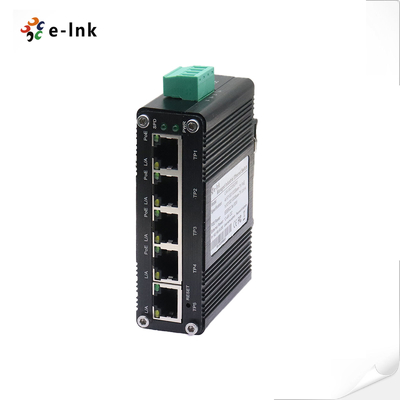

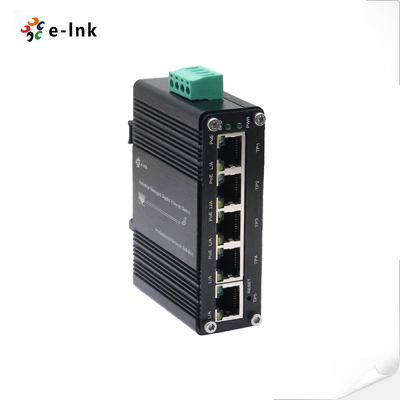

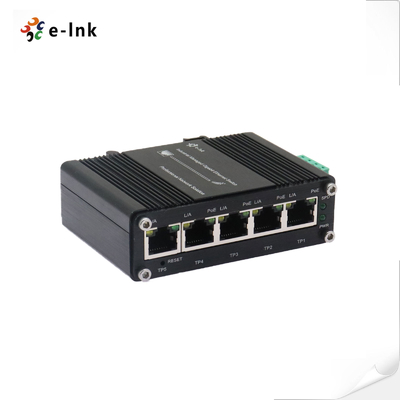

Managed Industrial Gigabit PoE Switch, 4 PoE Ports + 1 Uplink, 12–48V DC

Large Image : Managed Industrial Gigabit PoE Switch, 4 PoE Ports + 1 Uplink, 12–48V DC

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE/FCC/Rohs/ISO9001
Model Number:	LNK-IMC005GPM Series

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	US$39.9/pc
Packaging Details:	Industrial Gigabit PoE Switch Standard export package
Delivery Time:	2-7 days
Payment Terms:	T/T, L/C, Western Union, MoneyGram
Supply Ability:	1000pcs/Month

Contact Now

Detailed Product Description

Input Power::	12~48V DC (Terminal Block)	Power Consumption::	<125W (Non-PoE<6W)
Size:	95 X 70 X 29 Mm	Mounting Options:	DIN-Rail / Wall-mount
Weight::	0.25Kg	Casing:	Aluminum Case
Highlight:	Managed Gigabit PoE Switch , 12–48V DC PoE Switch , 1 Uplink Industrial Gigabit PoE Switch

Mini Industrial Managed 4-Port 10/100/1000BASE-T 802.3at PoE + 1-Port 10/100/1000T Ethernet Switch

Overview

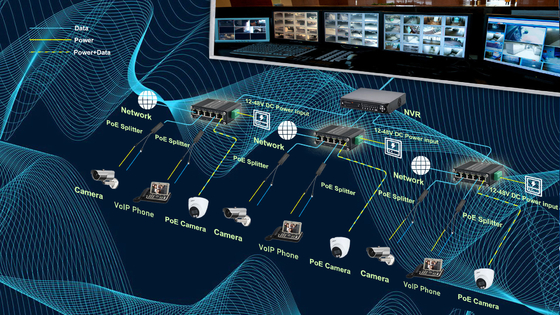

The LNK-IMC005GPM is a Mini Industrial Managed Gigabit PoE Switch designed for harsh industrial environments. It features 4 x 10/100/1000BASE-T PoE+ ports and 1 Gigabit uplink port, delivering IEEE 802.3at PoE+ power up to 30W per port for IP cameras, wireless APs, and VoIP phones. The switch offers a wide 12~48V DC power input, ensuring power redundancy and reliable performance in demanding conditions.

Built with a rugged IP40-rated metal housing and supporting DIN-rail or wall mounting, this switch withstands vibration, shock, and extreme temperatures from -40°C to 80°C. It is CE and FCC certified and has passed a 100% burn-in test for guaranteed durability. With its advanced managed features, the LNK-IMC005GPM provides secure, stable, and flexible Ethernet connectivity, making it ideal for industrial automation, ITS (Intelligent Transportation Systems), military, and utility applications where commercial devices cannot operate

Features

► 5 x 10/100/1000BASE-T ports

► 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3at PoE+ (Port-1 to Port-4)

► 12~48V DC wide range power input

► Supports 802.3x Flow control

► Supports WEB Management

► Supports DIN-Rail and Wall-mount installation

► Up to 120-watt PoE budget (48V DC),

► Up to 90-watt PoE budget (24V DC),

► Up to 60-watt PoE budget (12V DC)

► -40°C to 80°C (-40°F to 176°F) operating temperature

Technical Indexes

Ethernet

Standards:

IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE 802.3x Full-Duplex Flow Control

IEEE 802.3az Energy Efficient Ethernet (EEE)

IEEE 802.3at Power over Ethernet Plus PSE

IEEE 802.3af Power over Ethernet Plus

Forward & Filtering Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Packet Buffer:

1Mbits

Packet Length:

10Kbytes

MAC Address Table:

Switch Fabric:

10Gbps/non-blocking

Exchange Property

Backplane bandwidth: 20Gbps;
Packet forwarding rate: 14.88Mpps

Connector:

5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports

4 ports with 802.3at PoE+ injector function (Ports 1 to 4)

PoE (Power over Ethernet)

Standard:

IEEE802.3af/at

Port:

Power Pin Assignment

1/2(+), 3/6(-) or4/5(+), 7/8(-)

PoE Budget:

Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

> 200,000 hrs

Electrical and Mechanical

Input Power:

12~48VDC (Terminal Block)

Power Consumption:

<125W (Non-PoE<6W)

Power Input Overload:

Automatic Resettable

Reset Button

Support

Reverse Polarity:

Present

Dimensions (WxDxH):

95 x 70x 29mm

Weight:

0.25Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

LED Indicators:

Power

Link/Activity

PoE Status

WEB Management Features
System Settings	Device Info; Account Settings; Restoring; Reboot; Upgrade
Port Management	Port Settings; Port Mirroring; Port Statistics; Rate Limit
VLAN Settings	802.1Q VLAN; PVID Settings; Hybrid Port
QOS Settings	Priority Selection; Scheduling Mode
Loop Detection	Support
Saving Settings	Get Configuration; Restore Configuration; Saving Configuration
Default IP	192.168.40.253
Default User Name	admin
Default Password	admin

Regulatory Approvals

ISO9001

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55032:2017

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)

IEC 61000-4-8: 2009 (PFMF)

Order Information

Model	Description
LNK-IMC005GPM	Mini Industrial Managed 4-Port 10/100/1000BASE-T 802.3at PoE + 1-Port 10/100/1000T Ethernet Switch

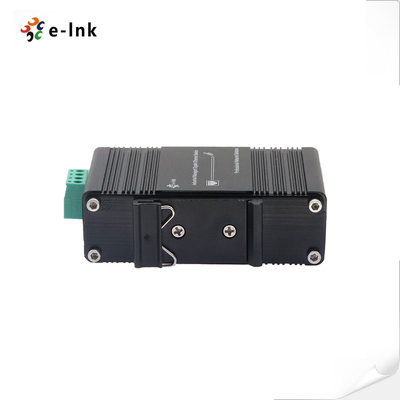

Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately ► Recommend MeanWell NDR-120-48
