Mini 4K HDMI Fiber Extender Long Distance Transmission Compact
Design Plug and Play
Overview

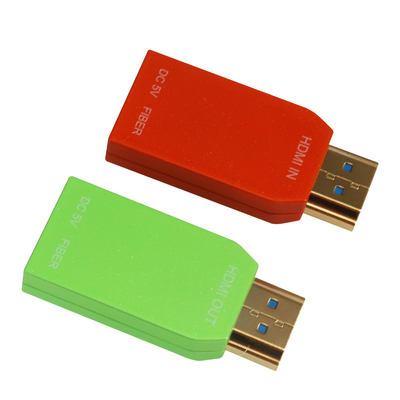

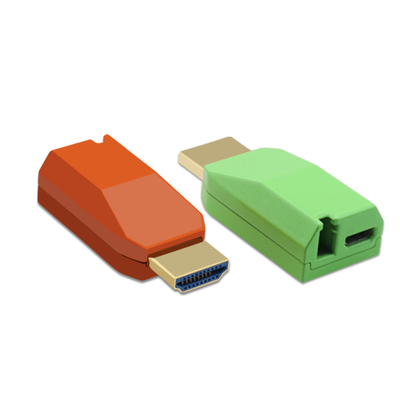

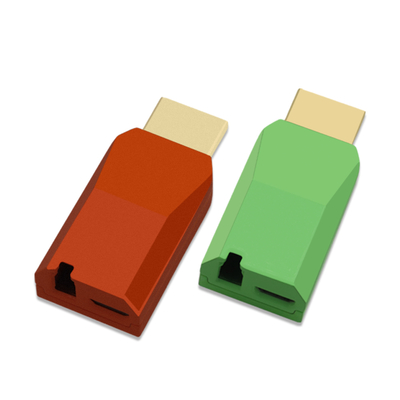

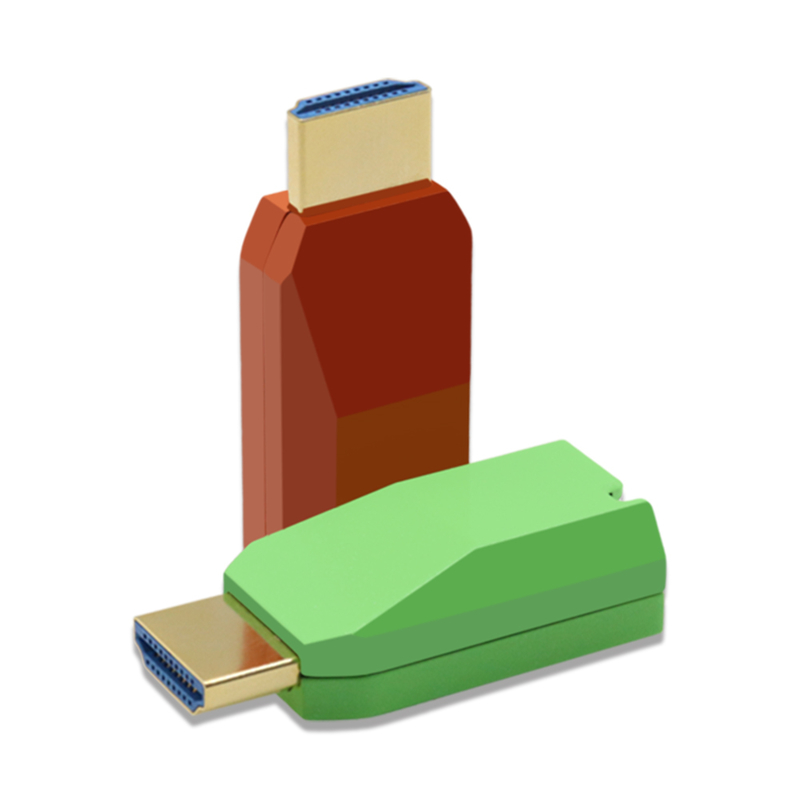

The LNK-108M Mini 4K/30Hz HDMI over Single-Core Multimode Fiber Extender is a
compact and high-performance HDMI optical transmission solution designed for
long-distance, uncompressed, and lossless 4K video signal extension. Supporting
HDMI 1.4 standards, this fiber extender enables stable and secure transmission of
ultra-high-definition (UHD) video up to 4Kx2K@30Hz over a single OM5 multimode
optical fiber at 850nm, reaching distances of up to 500 meters without signal degradation.
The transmitter module converts HDMI video into a 10Gbps high-speed optical data
stream for efficient transfer over one fiber core, while the receiver restores it back to the
original HDMI format with zero latency. Thanks to its plug-and-play design, the LNK-108M
extender easily integrates with displays, projectors, video walls, or digital signage systems.
Built with advanced EMI/RFI immunity and no copper conductors, it ensures secure,
interference-free data transmission—ideal for control rooms, broadcast studios,
conference systems, medical imaging, and home theater installations. The device is
RoHS-compliant and lead-free, offering excellent reliability and consistent performance
under demanding professional environments.
Features
High-Definition HDMI Transmission: Supports uncompressed HDMI video at
resolutions up to 4K/30Hz, delivering crystal-clear image quality over fiber optic connection
without signal distortion or delay.
Plug-and-Play Installation: Designed for easy deployment with no manual settings or
configuration required — simply connect and start transmitting high-resolution video
instantly.
Single-Fiber WDM Technology: Utilizes advanced Wavelength Division Multiplexing
(WDM) to simultaneously transmit high-definition audio and video signals through a
single OM3, OM4, or OM5 multimode fiber, significantly reducing cabling complexity.
Extended Transmission Distance: Provides stable data transmission up to 300 meters
on OM3, 400 meters on OM4, and 500 meters on OM5 fiber, ensuring consistent
performance in long-distance communication environments.
Professional HDMI Interface: Equipped with standard HDMI 1.4 connectors, supporting
a wide range of displays, monitors, projectors, and video wall systems.
Convenient Power Design: Integrated USB power connector, requiring only the receiver
(display side) to be externally powered, ensuring low energy consumption and simplified
wiring.
High Interference Immunity: TMDS signals are transmitted entirely over optical fiber,
providing strong resistance to EMI/RFI interference, ensuring stable operation in
industrial or broadcast settings.
Compact and Reliable Connectivity: Features a miniature form factor and durable LC
optical connectors, offering secure and stable data connections ideal for both portable
and fixed installations.
Hot-Swappable Design: Fully hot-pluggable modules enable quick setup and
replacement without interrupting existing video or data transmission.
Technical Indexes
| Type of Extender |
Mini 4K/30Hz HDMI over Single-Core Multimode Fiber Extender |
| Input Signals |
HDMI |
| Signal Support |
HDMI 1.4 HDMI format standard |
| Video Support |
4K@30Hz/1080p/1080i/720p |
| Audio Support |
Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH) |
| Website Specifications |
Color space 444, 420, 400 |
| Fiber Connector |
1 x LC Connector |
| Transmission Rate |
10.2Gbps(3.4Gbps/CH) |
| Transmission Distance |
300m with OM3 fiber, 400m with OM4 fiber, 500m with OM5 fiber |
| Operating Temperature |
-20°C to + 70°C |
| Storage Temperature |
-40°C to + 85°C |
| Humidity |
to 90% RH (non-condensing) |
| Safety Approvals |
CE, RoHS, FCC |
| Dimension (WxDxH) |
2.24 x 0.6 x 0.55 in (57x16x14mm) |
| Weight |
0.1 kg / 0.22 lb |
| Operation Voltage |
5VDC |
| Operation Current |
TX+RX: 75mA |
| Power Supply |
Power Input +5VDC, 0.85A (Universal Type 50/60Hz, 100~240VAC) |
| Note |
The module does not support HDCP and EDID transparent transmission |
Ordering Information
| Model |
Description |
| LNK-108M |
Mini 4K/30Hz HDMI over Single-Core Multimode Fiber Extender, LC, including 1 transmitter & 1 receiver, used by pairs, USB Power Input
Distance: 300m with OM3 fiber, 400m with OM4 fiber, 500m with OM5 fiber
|
Applcation
The Mini 4K/30Hz HDMI over Single-Core Multimode Fiber Extender is ideal for a wide
range of long-distance high-definition video transmission applications where signal
integrity, electromagnetic immunity, and compact installation are essential.
It is widely used in professional AV systems, control centers, security monitoring,
broadcast studios, and industrial automation environments, where 4K HDMI signal
transmission over multimode optical fiber ensures reliable performance and zero signal
degradation.
This HDMI fiber extender is also perfectly suited for large-screen display systems,
conference rooms, digital signage networks, video wall systems, education and
training centers, medical imaging, and home theater installations that require
uncompressed HDMI video and audio signals to be delivered over long distances with
minimal latency.
Thanks to its compact size, low power consumption, and plug-and-play design, the
device is ideal for both temporary event setups and permanent professional AV
installations. Its strong resistance to electromagnetic interference (EMI/RFI) makes
it highly reliable in complex communication environments such as data centers,
transportation hubs, and command-and-control applications.
By integrating optical transmission technology with 4K HDMI compatibility, this
extender offers a cost-effective and stable solution for any scenario demanding secure,
high-quality, long-distance video transmission.
